Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | On left front corner of engine bay, behind headlight. | |
| Air Bag Diagnostic Module | Behind instrument panel, forward of center console. | |
| Body Controller | Behind instrument panel, to left of center console. | |
| Daytime Running Lights (DRL) Module | On right rear of engine bay, on firewall. See Figure . | |
| Electronic Automatic Transaxle (EATX) Control Module | On right side of engine bay firewall. See Figure . | |
| Powertrain Control Module (PCM) | ||
| 2.5L | In engine bay, on left inner fender. See Figure . | |
| 3.0L & 3.3L | In engine bay, on left inner fender. See Figure . | |

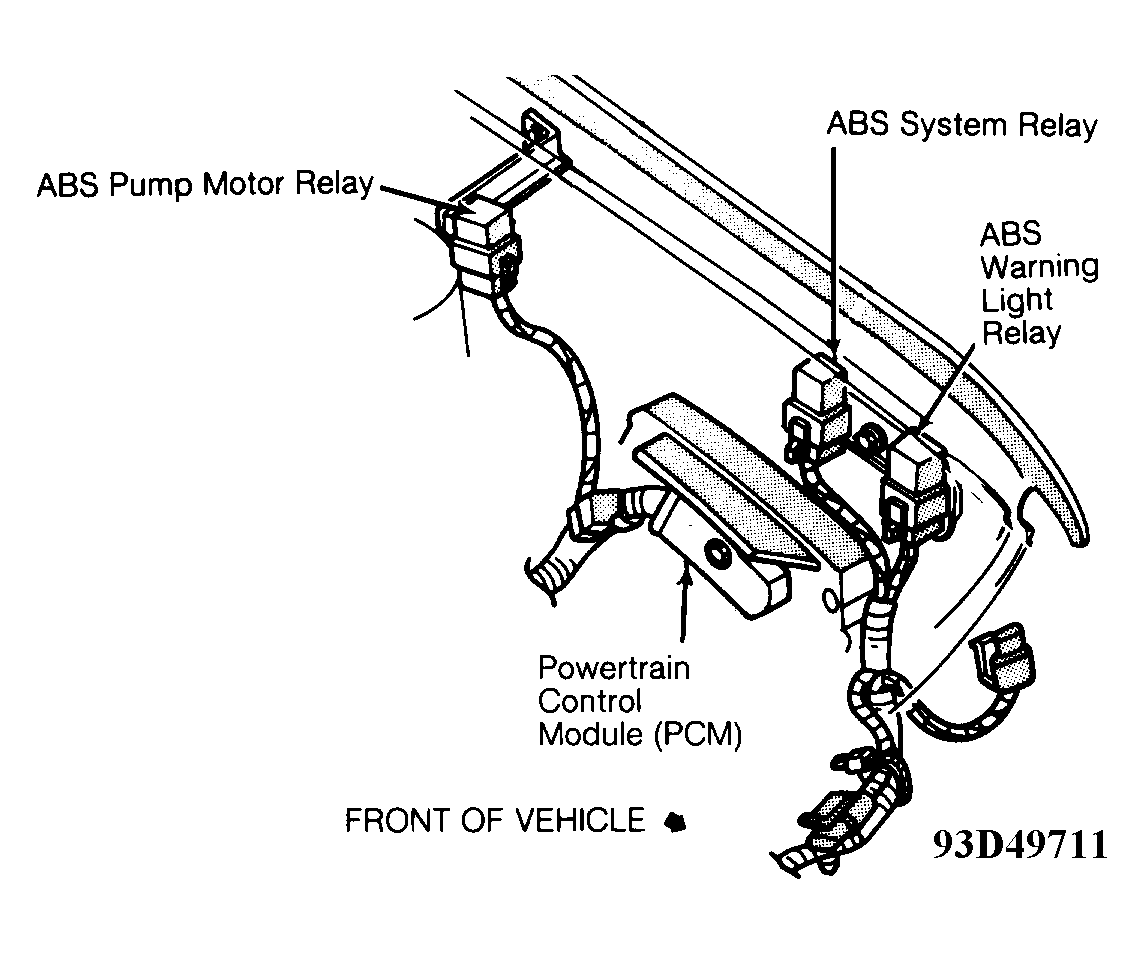

| Left Inner Fender View | In engine bay, on left inner fender. See Figure . | |
| Rear Intermittent Wiper Module | In liftgate, behind trim panel, at right end. | |
