Power Charts

Fig 1: Chart 1, All Power Seat Functions Inoperative

Fig 2: Chart 2, Entire Seat Won't Move Forward &/Or Back; Up/Down Functions Operate Normally

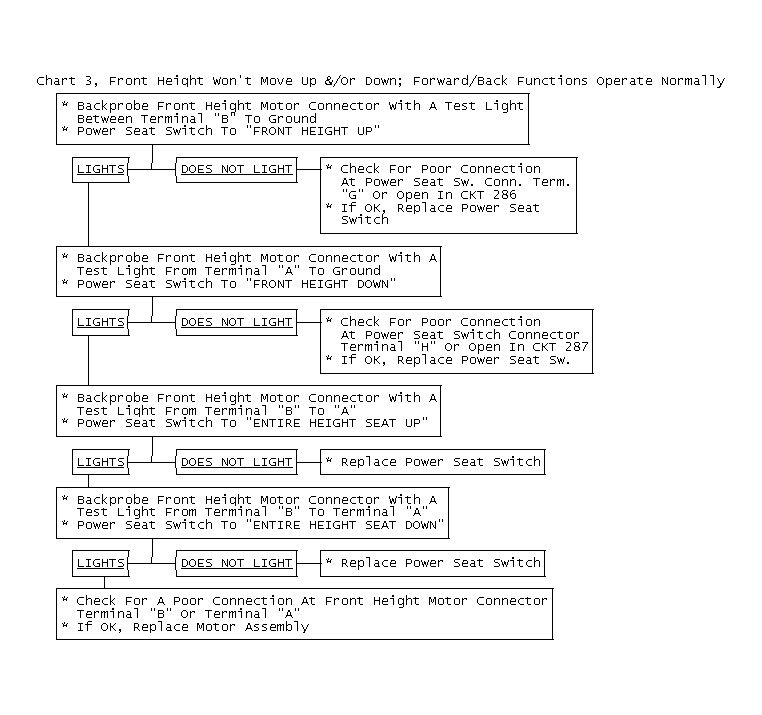

Fig 3: Chart 3, Front Height Won't Move Up &/Or Down; Forward/Back Functions Operate Normally

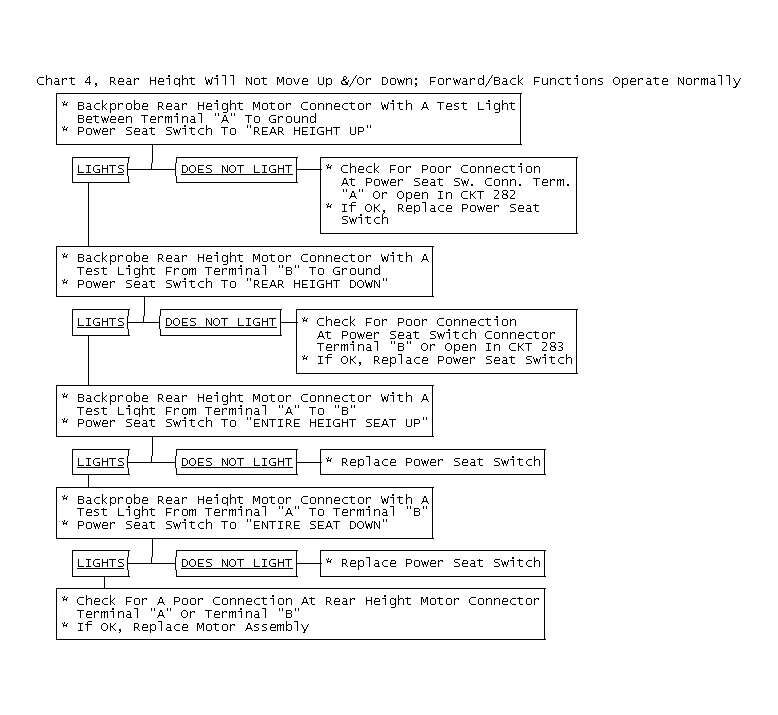

Fig 4: Chart 4, Rear Height Will Not Move Up &/Or Down; Forward/Back Functions Operate Normally

Fig 5: Chart 4, Rear Height Will Not Move Up &/Or Down; Forward/Back Functions Operate Normally
