Information Bus: Testing and Inspection

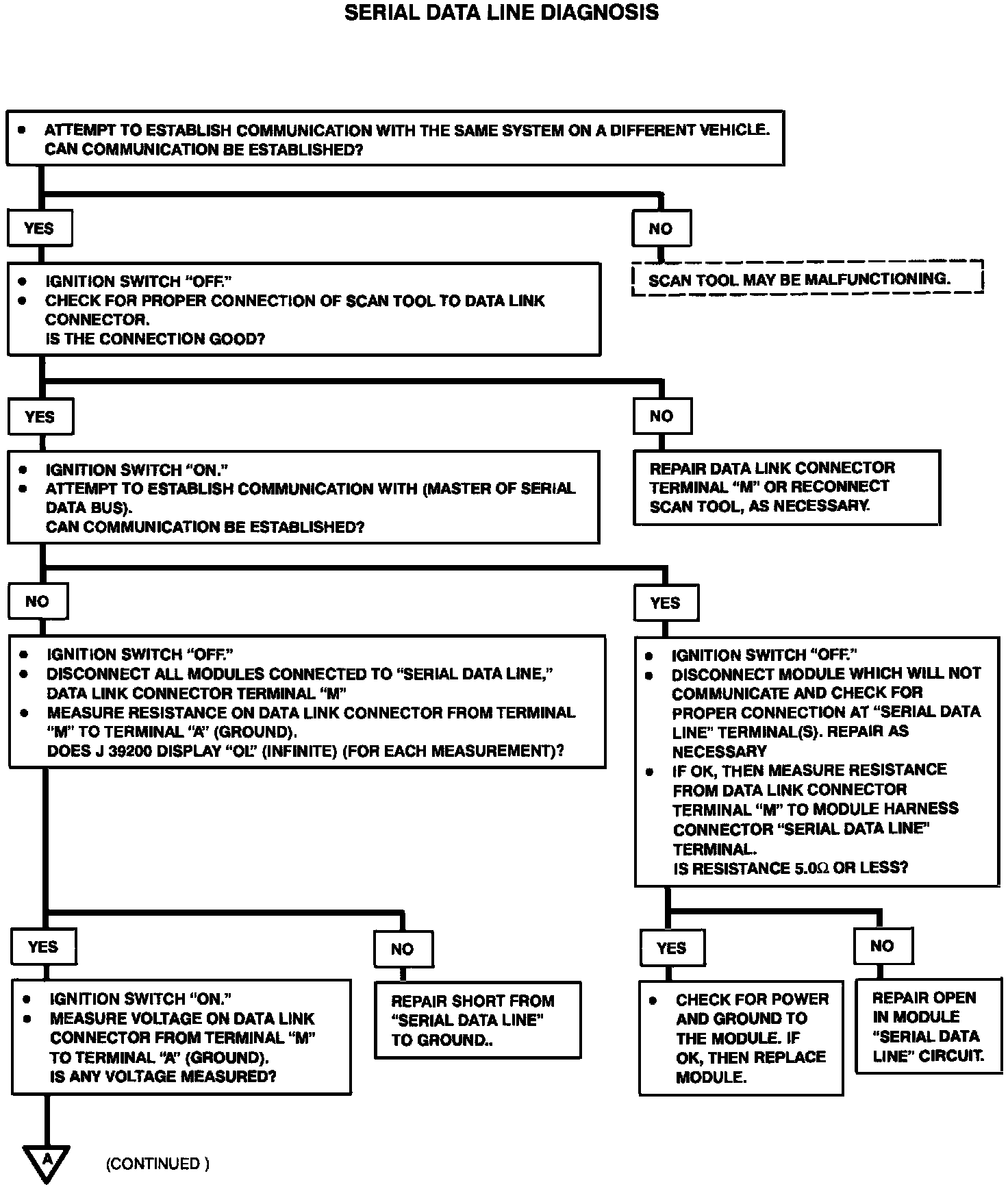

Test A: Serial Data Line Diagnosis (Part 1 Of 2):

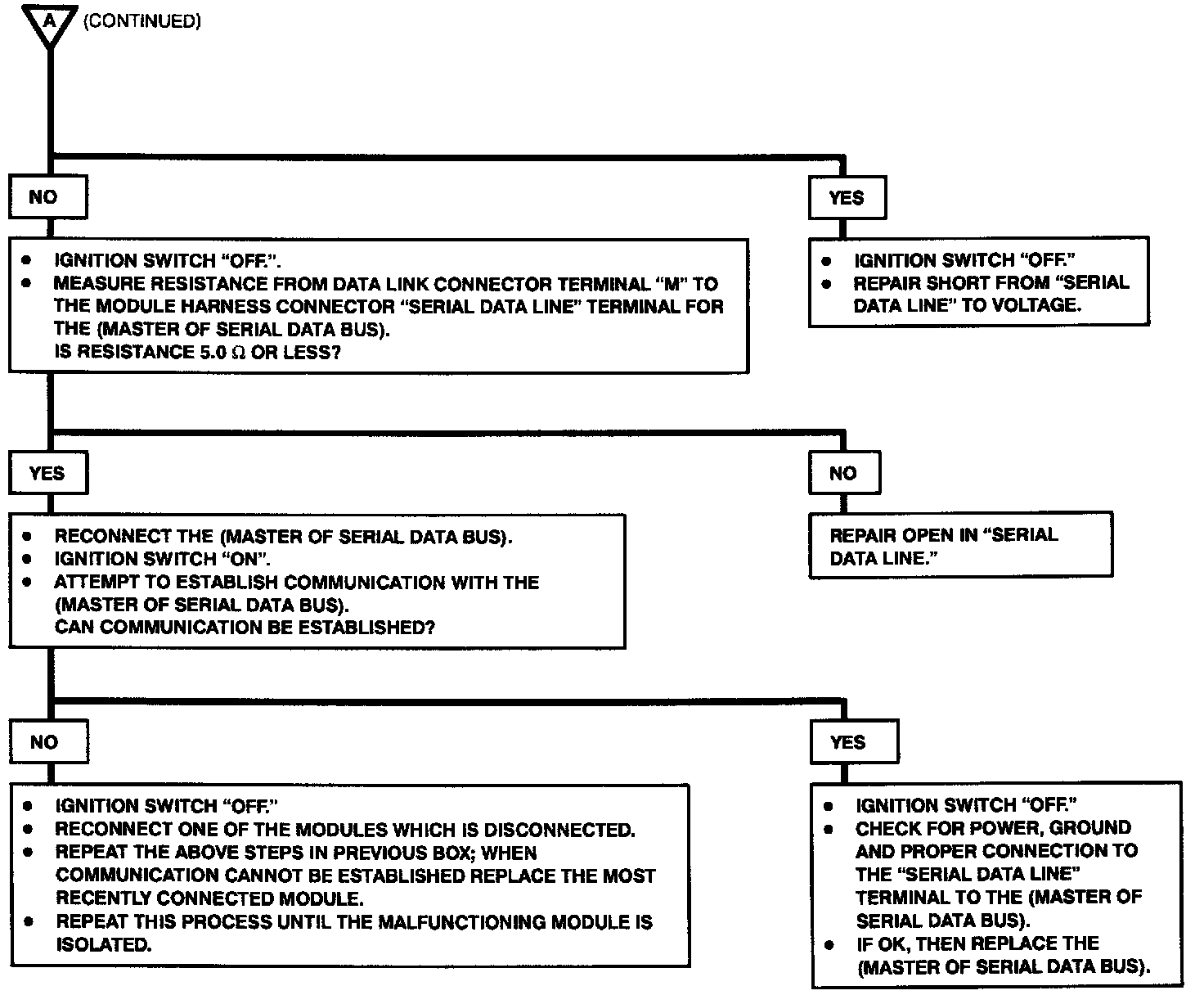

Test A: Serial Data Line Diagnosis (Part 2 Of 2):
