Fastener Tightening Specifications - Intake Manifold

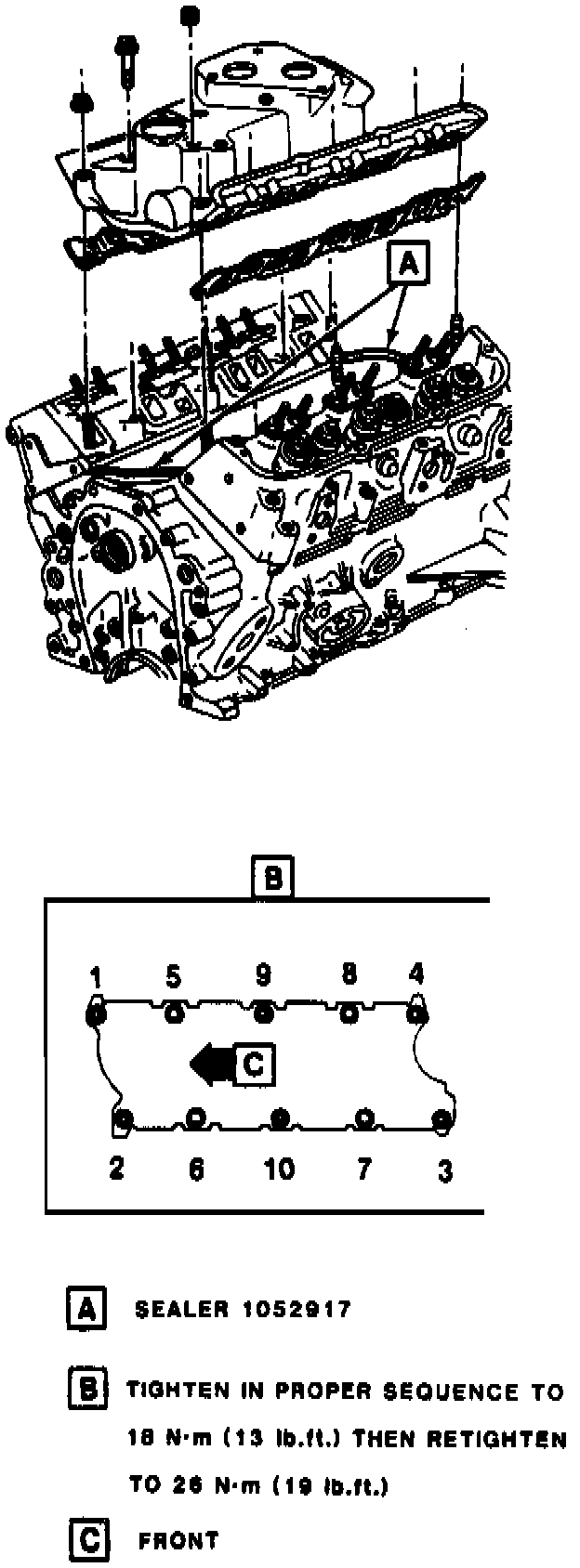

Fig.17 Intake Manifold Installation/Tightening Sequence:
