Pinout Description

Electronic Brake Control Module (EBCM): C1:




Electronic Brake Control Module: C3:





With Enhanced Traction

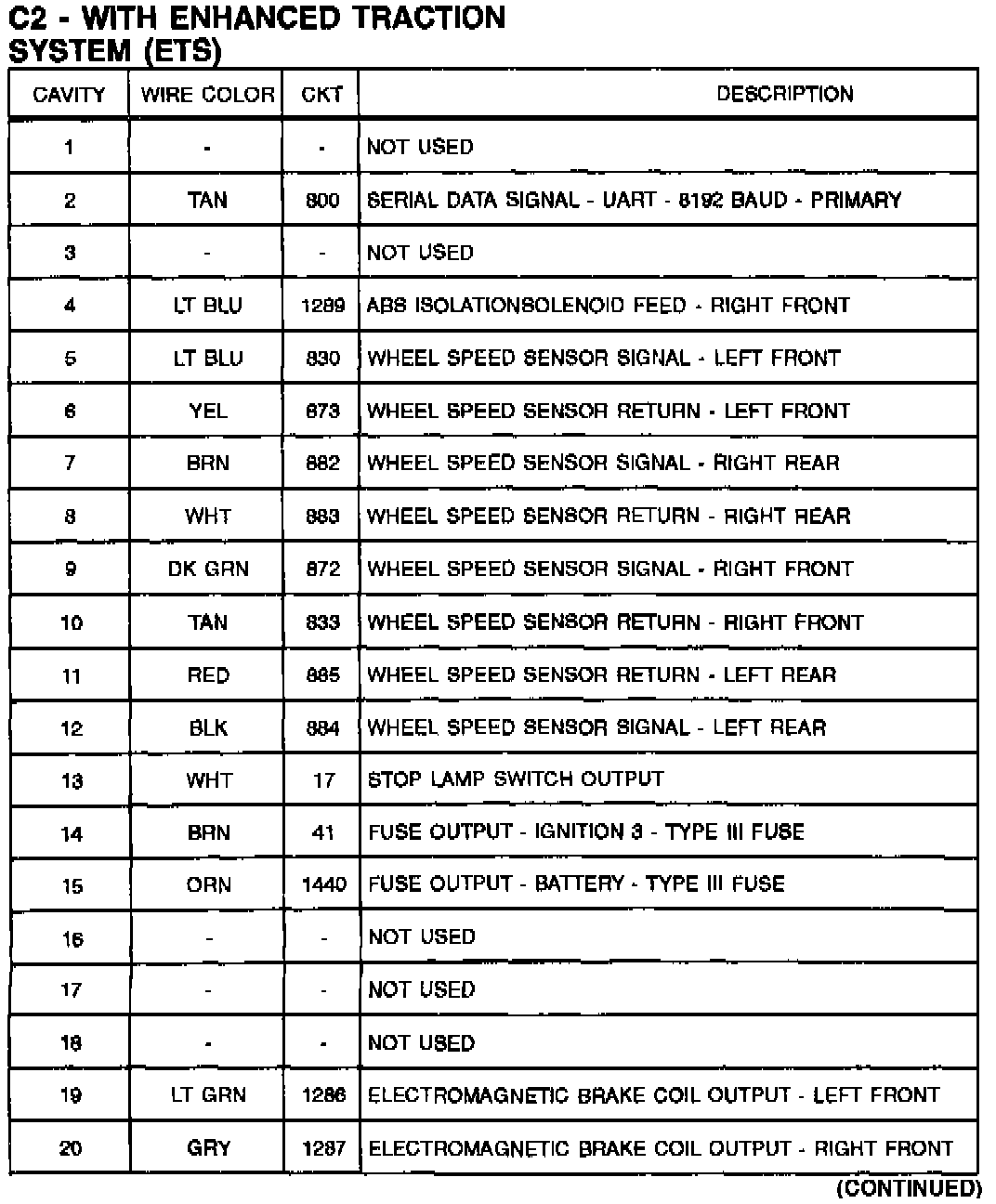

Electronic Brake Control Module (EBCM): C2 (With Enhanced Traction System (Part 1 Of 2):




Electronic Brake Control Module (EBCM): C2 (With Enhanced Traction System (Part 2 Of 2):





Without Enhanced Traction

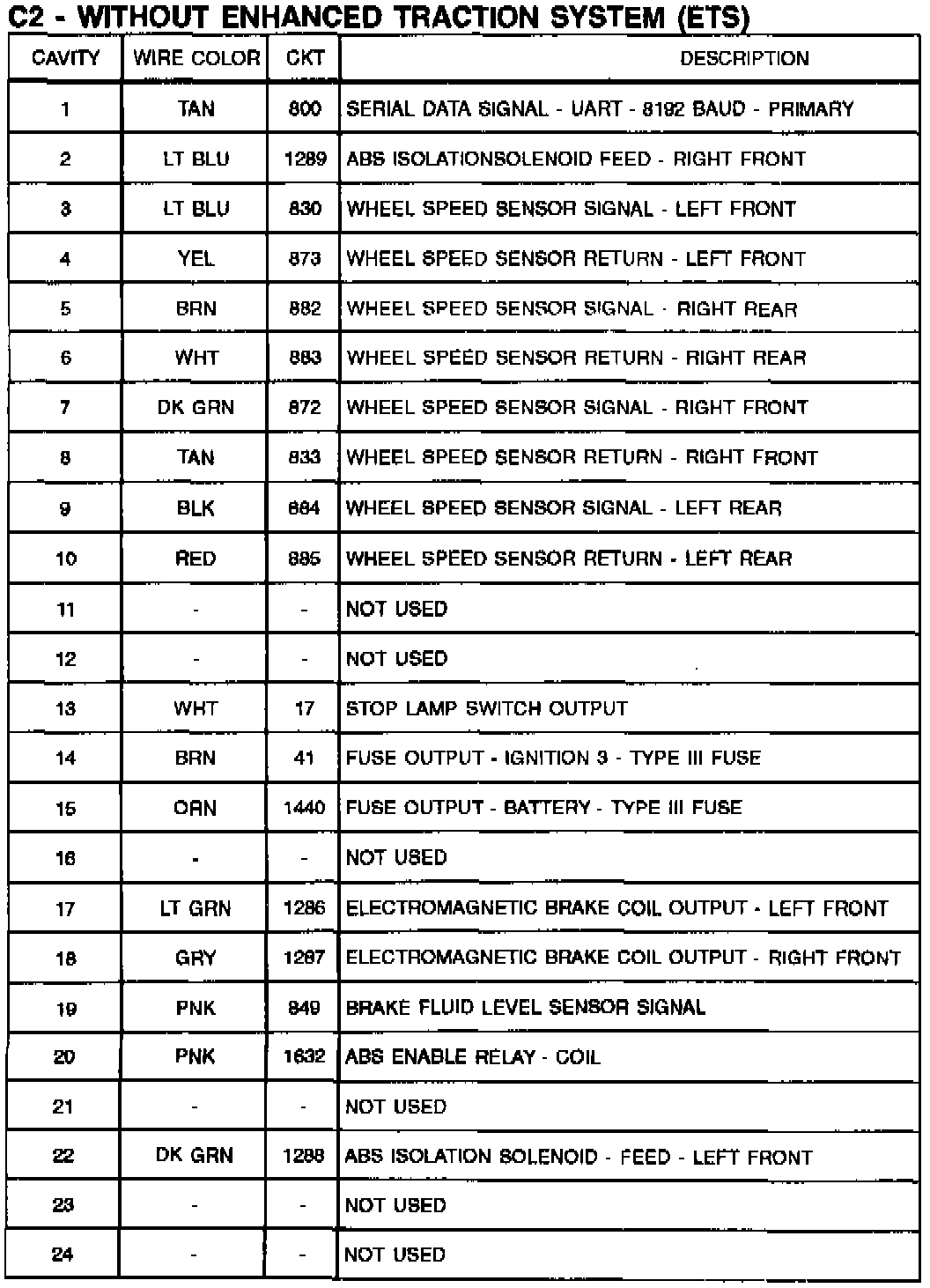

Electronic Brake Control Module: C2 (Without Enhanced Traction System:
