Security Indicator Led: Installation

  1. Connect security indicator LED harness connector to security indicator lamp.
  2. Install security indicator lamp (3) to instrument panel upper trim. Insert security indicator LED and rotate LED 1/4 turn clockwise. See Fig 1.
  3. Install instrument panel upper trim by reversing removal procedure.

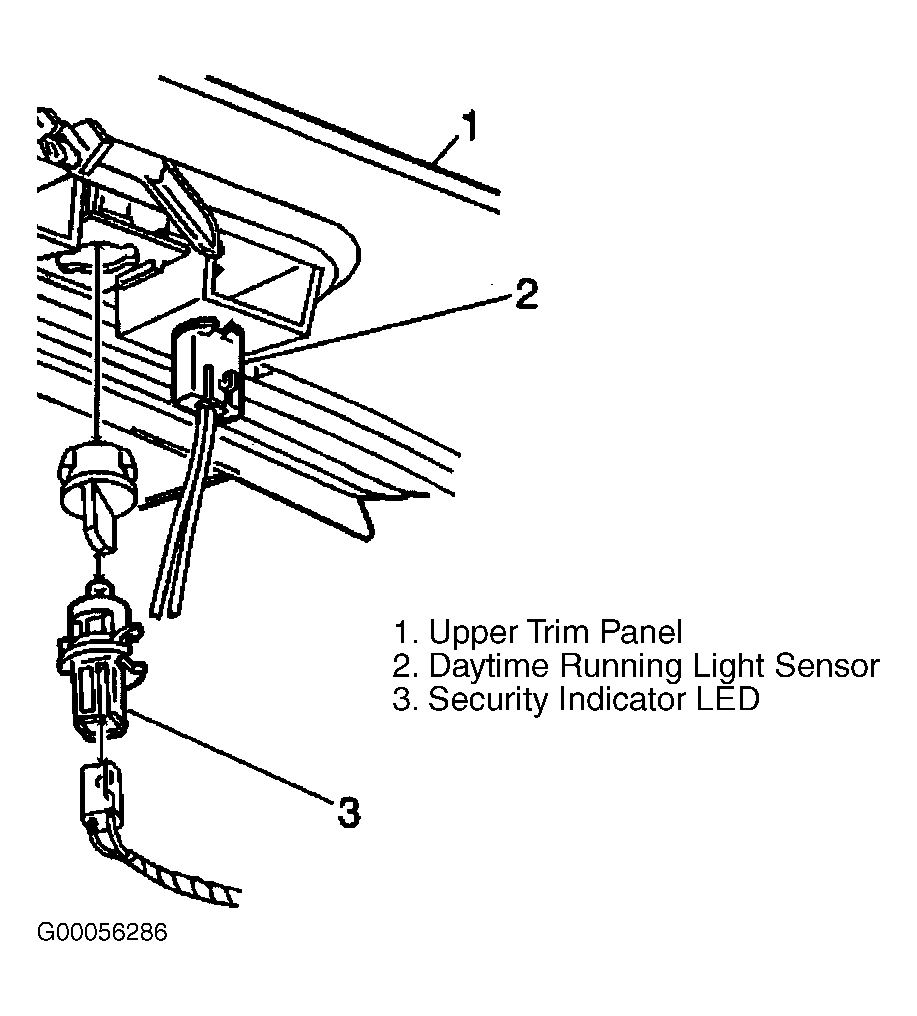

Fig 1: Removing & Installing Security Indicator LED
G00056286Courtesy of GENERAL MOTORS CORP.
