UNDERHOOD Fuse Block

NOTE: Underhood fuse block is located on the right side of the engine compartment, next top washer fluid reservoir. See Fig 1 .

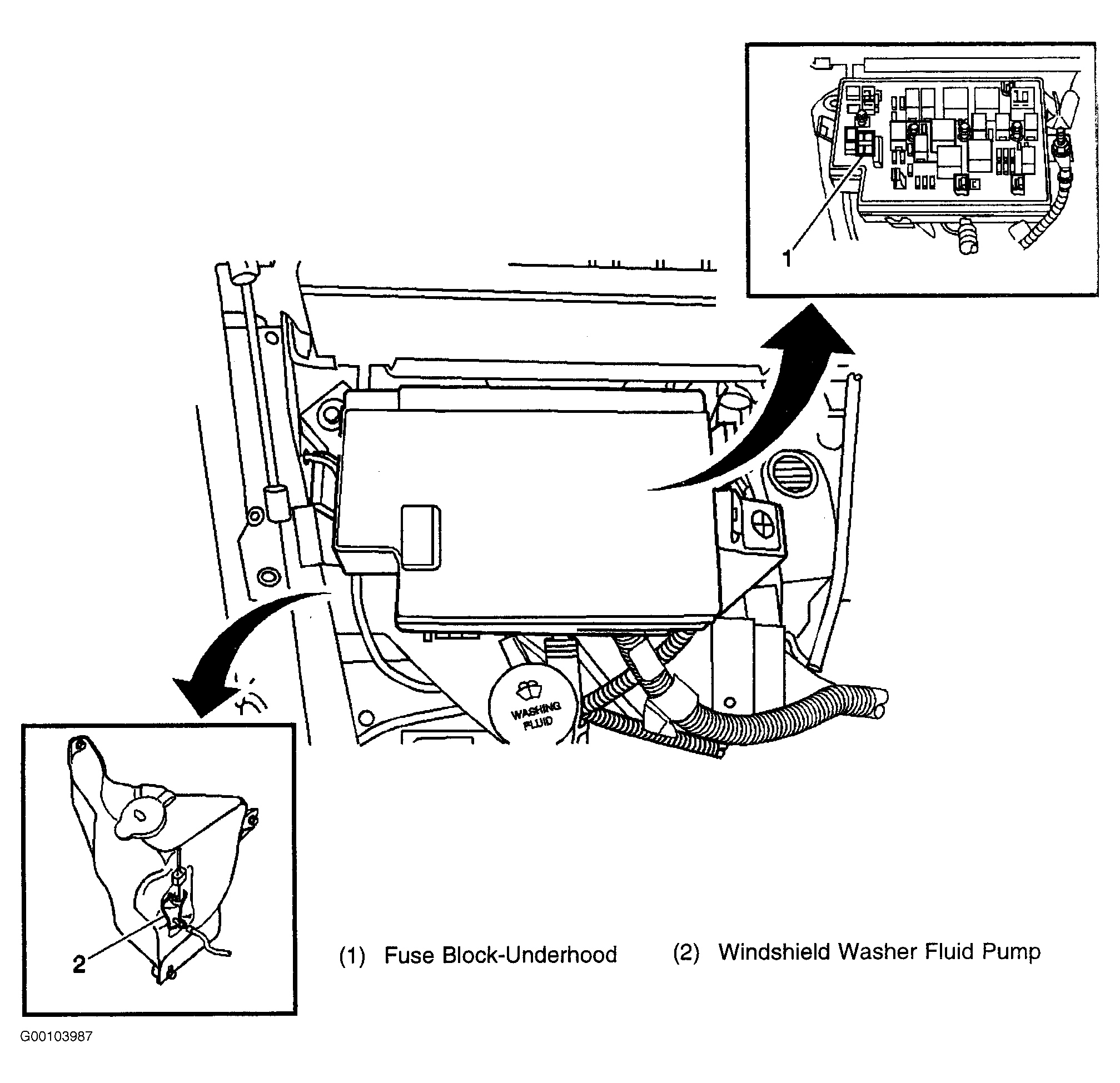

Fig 1: Locating Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

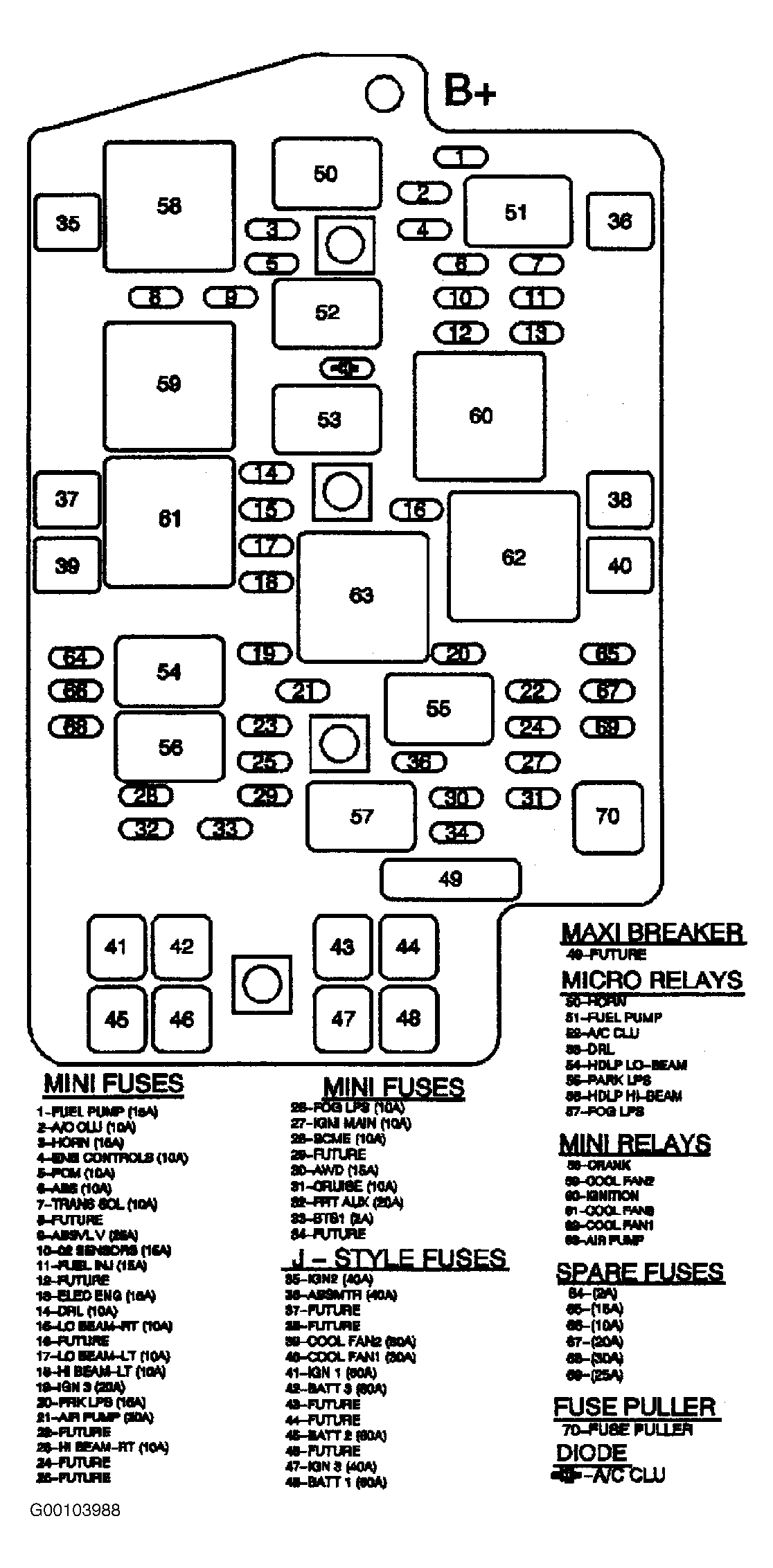

Fig 2: Identifying Underhood Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

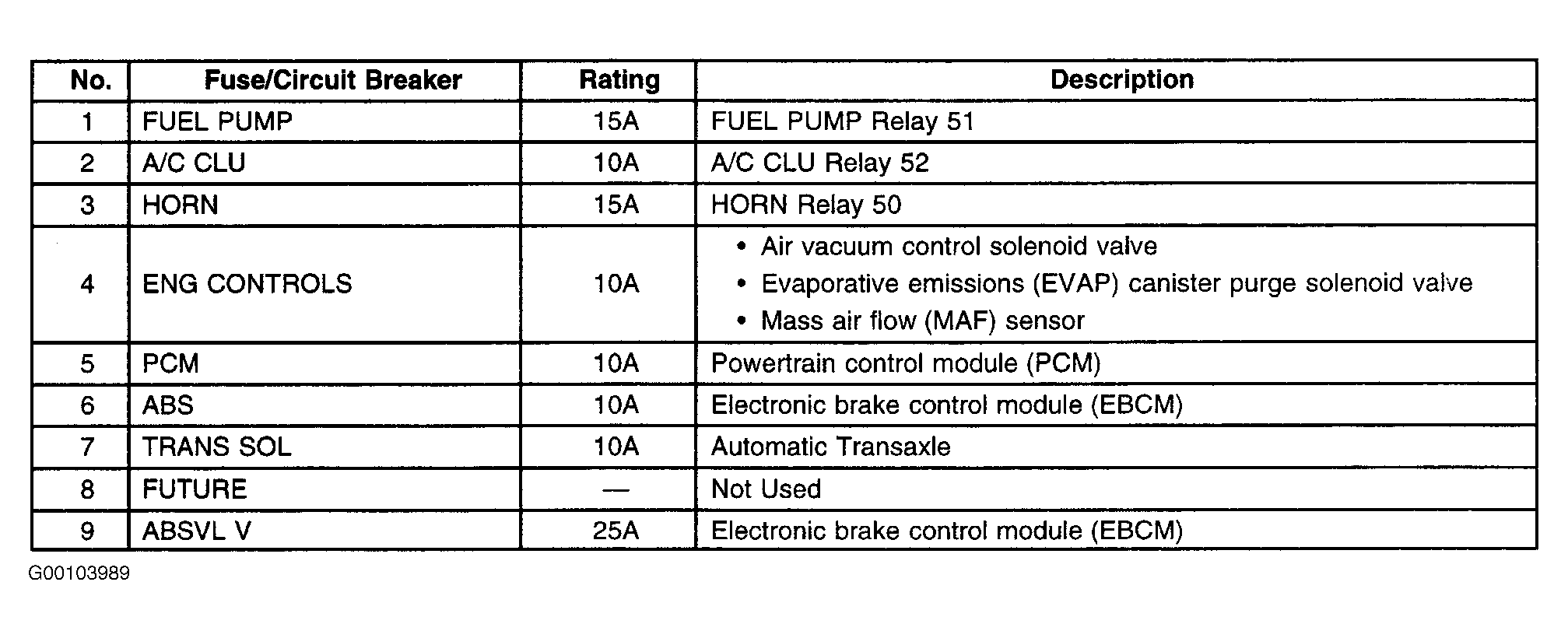

Fig 3: Underhood Fuse Block Legend (1 of 3)

Courtesy of GENERAL MOTORS CORP.

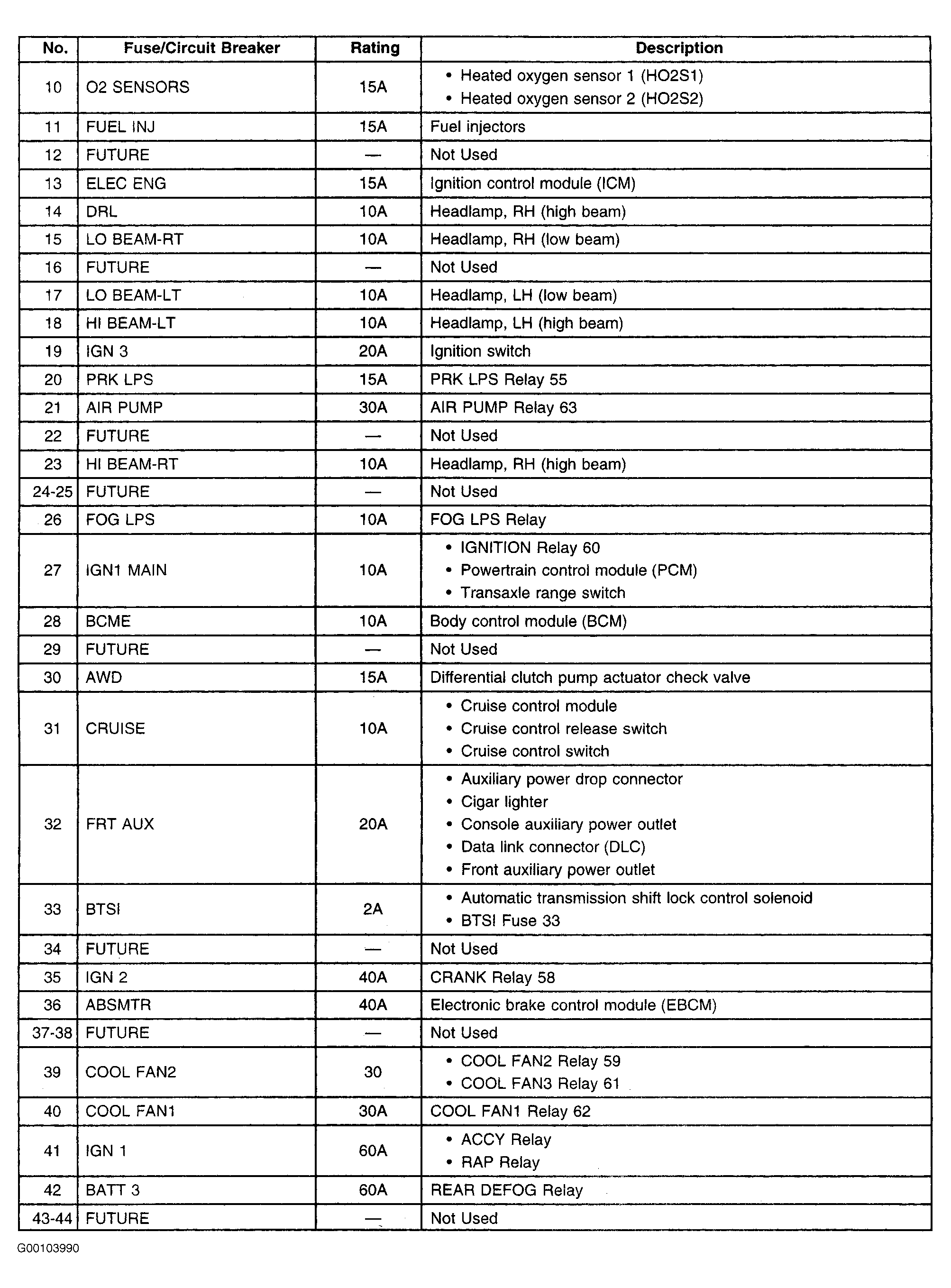

Fig 4: Underhood Fuse Block Legend (2 of 3)

Courtesy of GENERAL MOTORS CORP.

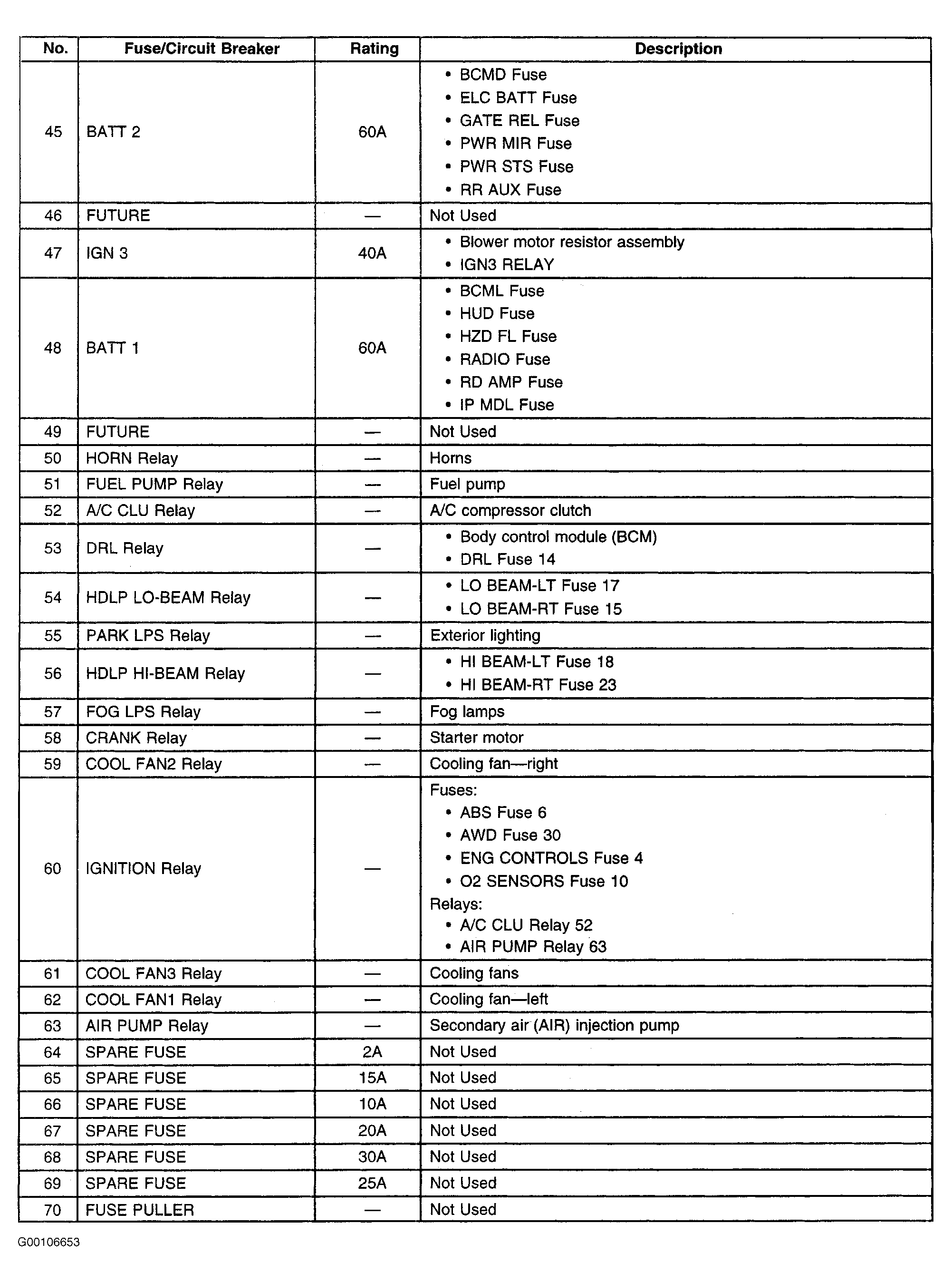

Fig 5: Underhood Fuse Block Legend (3 of 3)

Courtesy of GENERAL MOTORS CORP.
