Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Place the insulators on the stabilizer shaft with the slits facing toward the front of the vehicle.
  1. Install the insulators (1) to the stabilizer shaft (4).
  2. Install the stabilizer shaft (4).

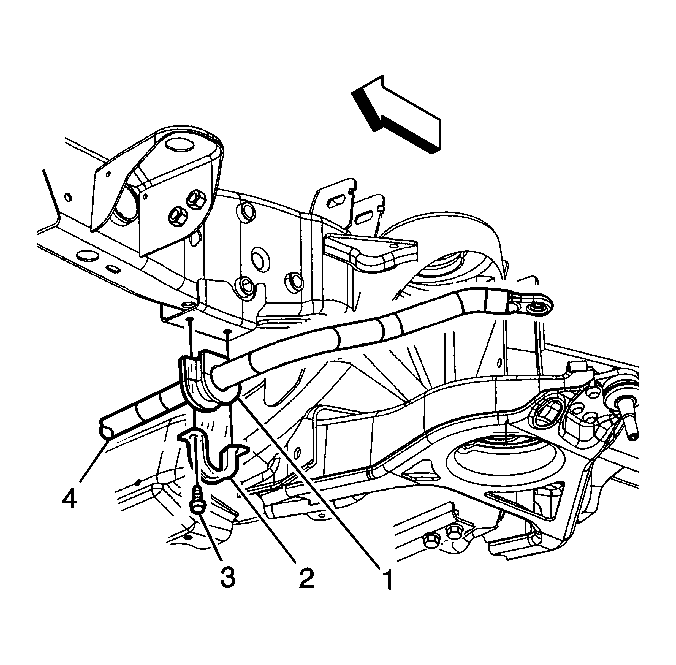

    Fig 1: Installing The Stabilizer Shaft
    GM348364Courtesy of GENERAL MOTORS CORP.
  3. Install the brackets (2) over the insulators and the stabilizer shaft.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install insulator bracket bolts (3).

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  5. Install the stabilizer links. Refer to Stabilizer Shaft Link Replacement .
    6. Fig 2: Identifying Oil Pan Skid Plate
    GM309158Courtesy of GENERAL MOTORS CORP.
  6. Install the oil pan skid plate, if equipped.

    Tighten:  Tighten the oil pan skid plate retaining bolts to 20 N.m (15 lb ft).

  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  8. Remove the safety stands
  9. Lower the vehicle.
