Starter Shield: Installation
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, and 2002 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

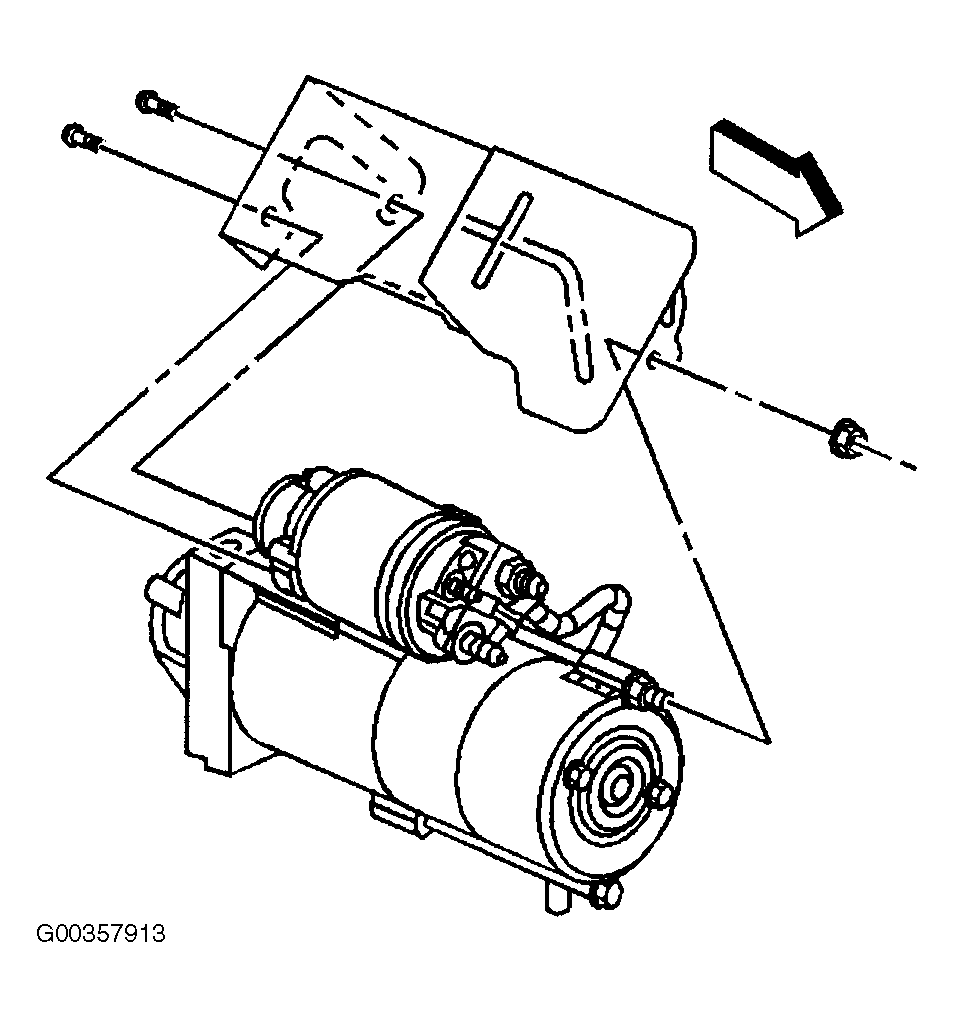

- If equipped with a 8.1L engine, install the starter heat shield. See Figure .
- Install the starter heat shield bolts, and nut.
- Tighten the starter heat shield bolts to specification. See TORQUE SPECIFICATIONS .
- Tighten the starter heat shield nut to specification. See TORQUE SPECIFICATIONS .
- If equipped with a 4.8L, 5.3L, or 6.0L engine, install the starter heat shield. See Figure .
- Install the starter motor. See STARTER .
