Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the endgate support cable to the endgate.

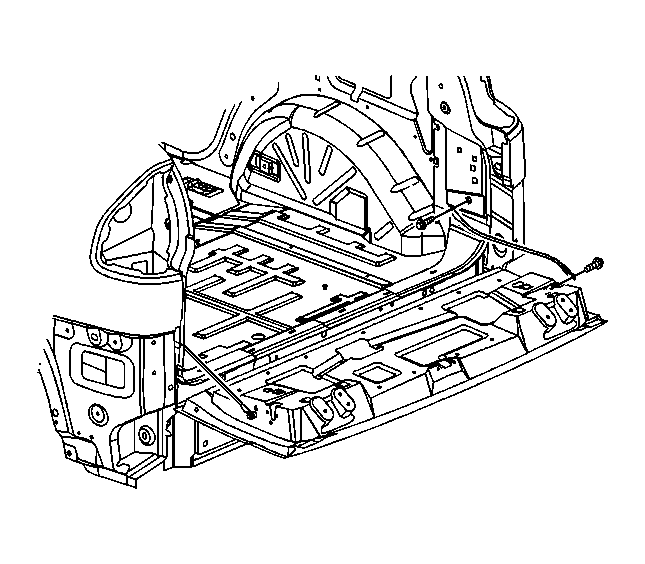

    Fig 1: View Of Endgate Support Cable
    GM621898Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts to the endgate support cable.

    Tighten:  Tighten the endgate support cable bolts to 3 N.m (27 lb in).

  3. Remove the support from the endgate.
  4. Close the endgate.
