Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container to the vehicle.
  2. Connect the washer pump hose.
  3. Connect the washer pump electrical connector.

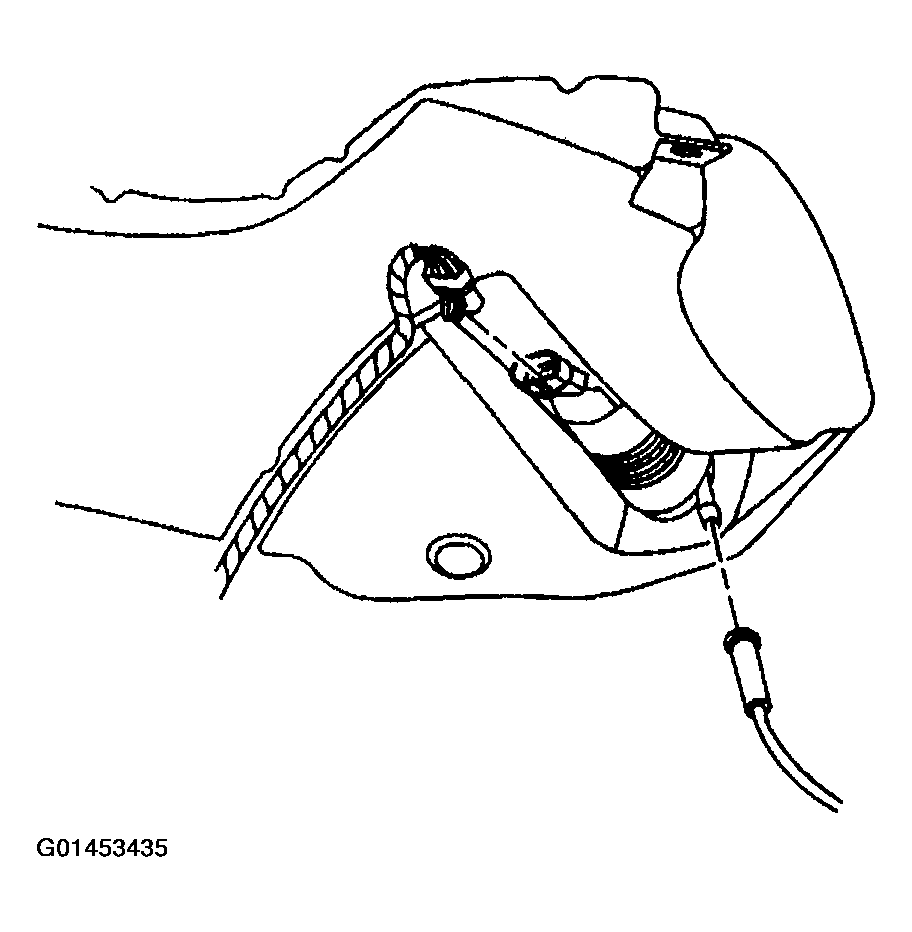

    Fig 1: Connecting Washer Pump Hose
    G01453435Courtesy of GENERAL MOTORS CORP.
  4. Install the washer solvent container onto the mounting studs.
  5. Install the heater hose retention clamp onto the mounting stud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the washer solvent container nuts.

    Tighten  Tighten the nuts to 8 N.m (71 lb in).

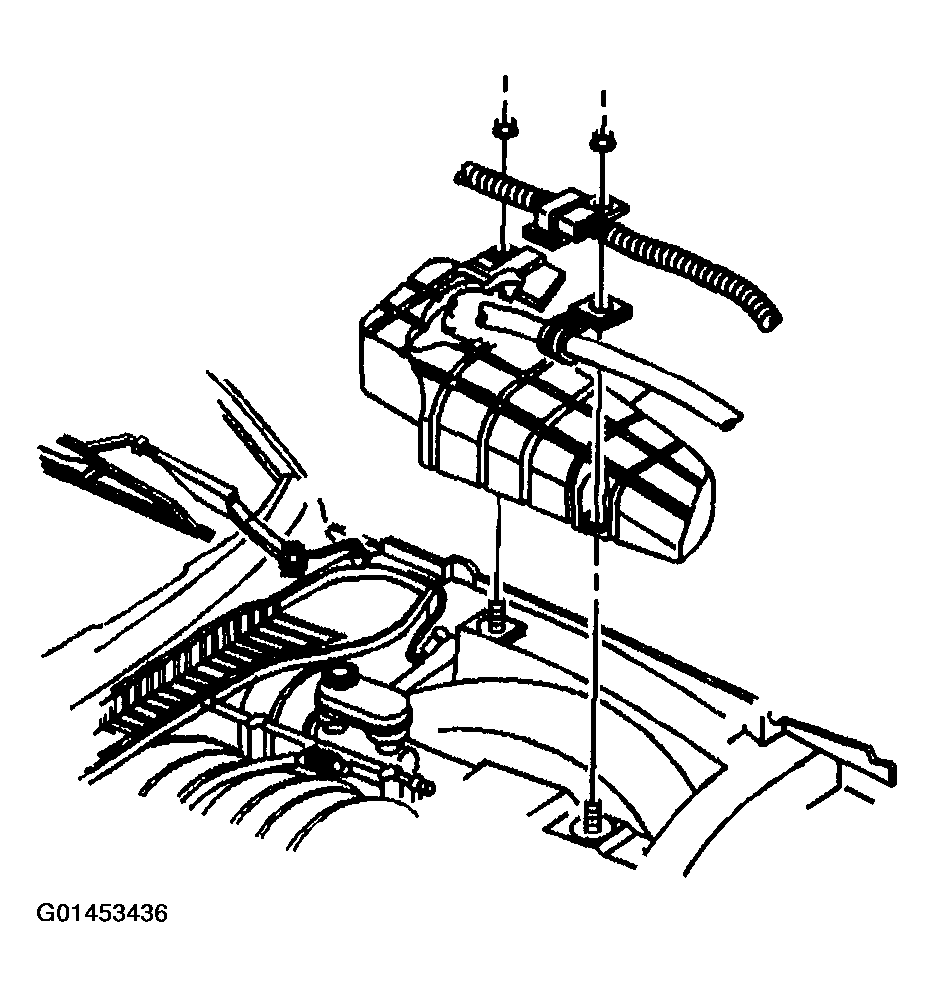

    Fig 2: Washer Solvent Container Nuts
    G01453436Courtesy of GENERAL MOTORS CORP.
  7. Connect the washer solvent container level sensor electrical connector.
  8. Fill the washer solvent container with washer solvent.
  9. Close the hood.
  10. Inspect the washer system for proper operation.

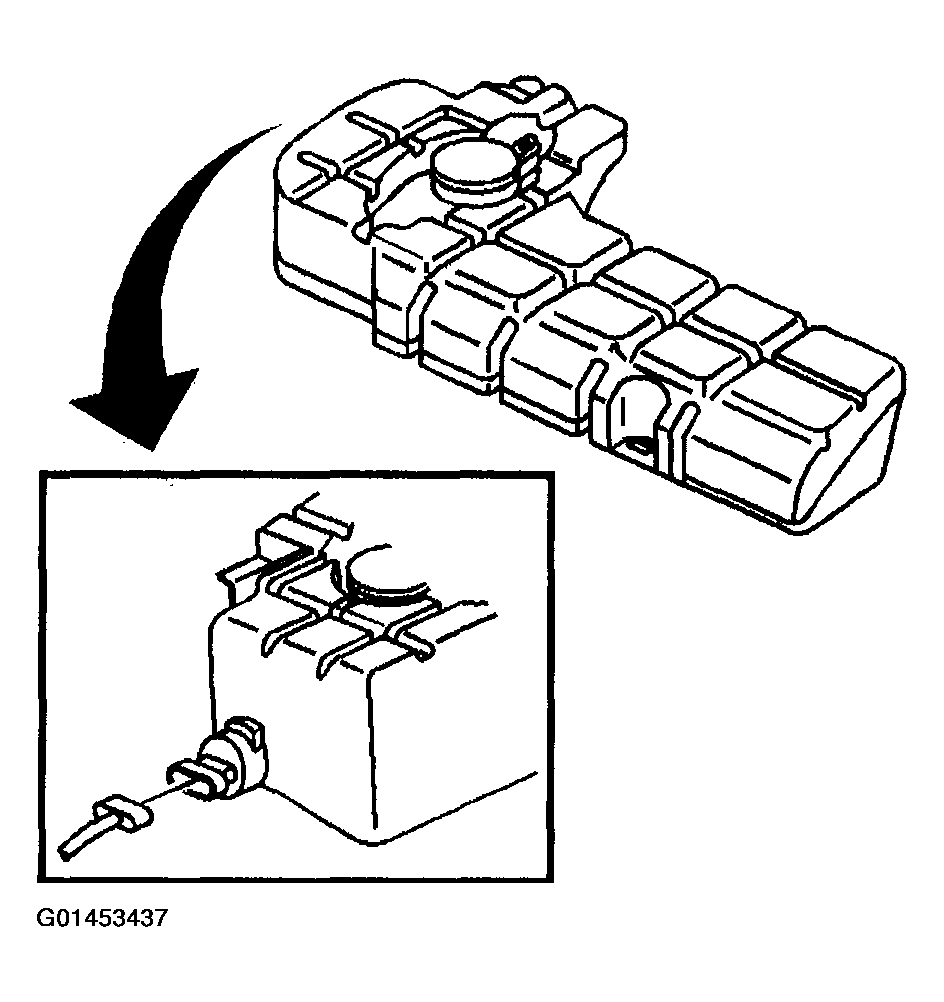

    Fig 3: Connecting Washer Solvent Container Level Sensor Electrical Connector
    G01453437Courtesy of GENERAL MOTORS CORP.
