Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper blade onto the wiper arm. Refer to WIPER ARM BLADE REPLACEMENT .
  2. Position the tip of the wiper blade (6) to the marks made on the windshield with masking tape (5).
  3. Install the wiper arm onto the wiper transmission (4).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the wiper arm nut (2).

    Tighten  Tighten the nut (2) to 25 N.m (18 lb ft).

  5. Install the wiper arm nut cover (1).
  6. Connect the washer hose (3) to the air inlet grille panel.
  7. Remove the masking tape (5) from the windshield.
  8. Inspect the wipers for proper operation.

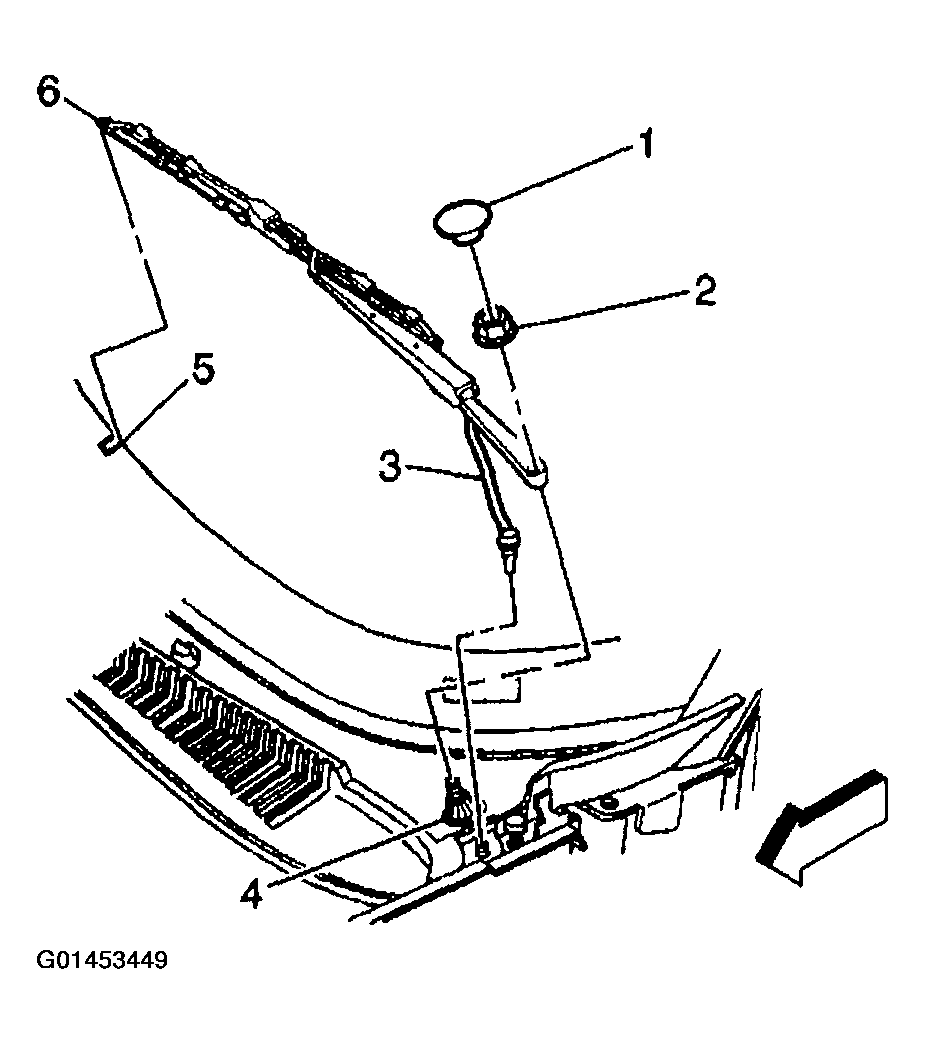

    Fig 1: Installing Wiper Arm
    G01453449Courtesy of GENERAL MOTORS CORP.
