Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper motor splash shield onto the wiper motor.
  2. Position the wiper motor to the wiper motor module.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the wiper motor screws.

    Tighten  Tighten the screws to 10 N.m (89 lb in).

  4. Install the wiper motor crank arm. Refer to WIPER MOTOR CRANK ARM REPLACEMENT  .
  5. Install the wiper drive system module. Refer to WIPER DRIVE SYSTEM MODULE REPLACEMENT  .
  6. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  7. Inspect the wipers for proper operation.

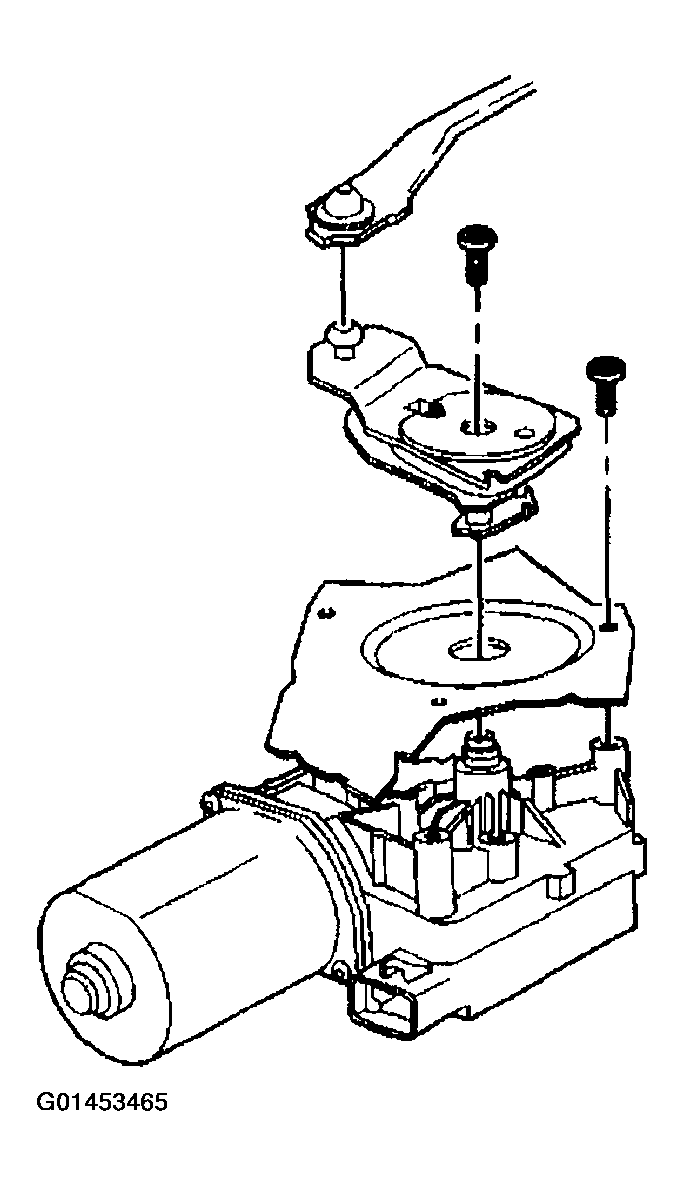

    Fig 1: Installing Wiper Motor Splash Shield Onto Wiper Motor
    G01453465Courtesy of GENERAL MOTORS CORP.
