Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  2. Remove the wiper drive system module. Refer to WIPER DRIVE SYSTEM MODULE REPLACEMENT  .
  3. Using the J 39232, disconnect the wiper transmission from the wiper motor crank arm.

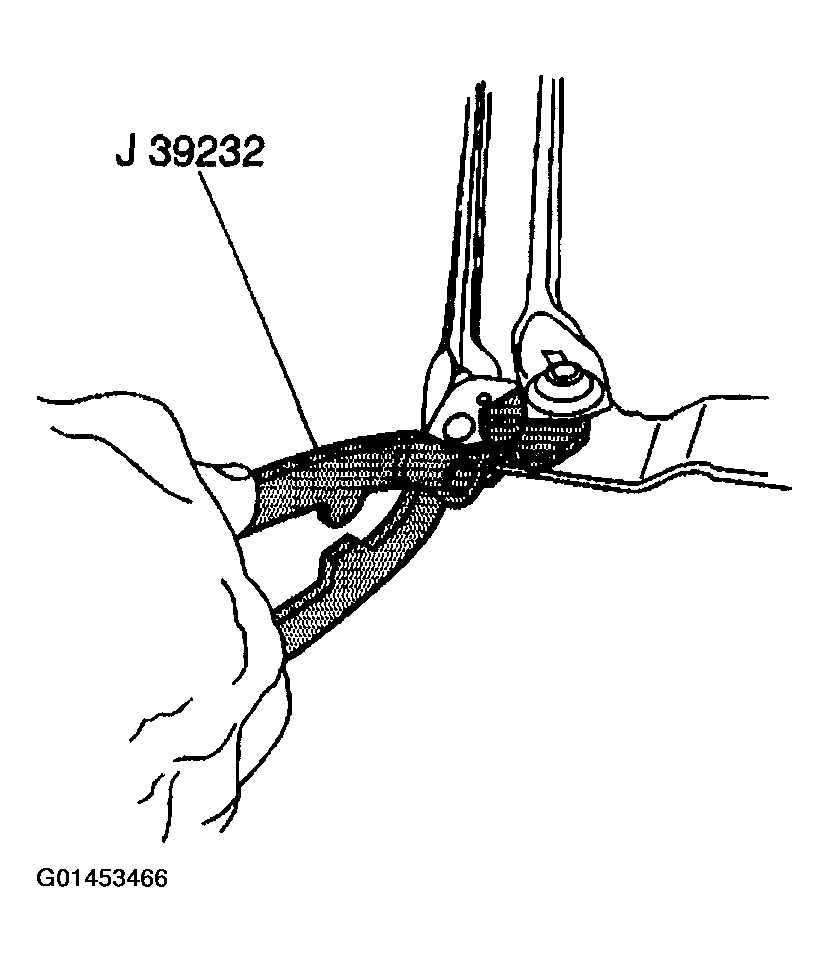

    Fig 1: Disconnecting Wiper Transmission From Wiper Motor Crank Arm Using Wiper Linkage Separator
    G01453466Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiper transmission screws.
  5. Remove the wiper transmission from the wiper motor module assembly.

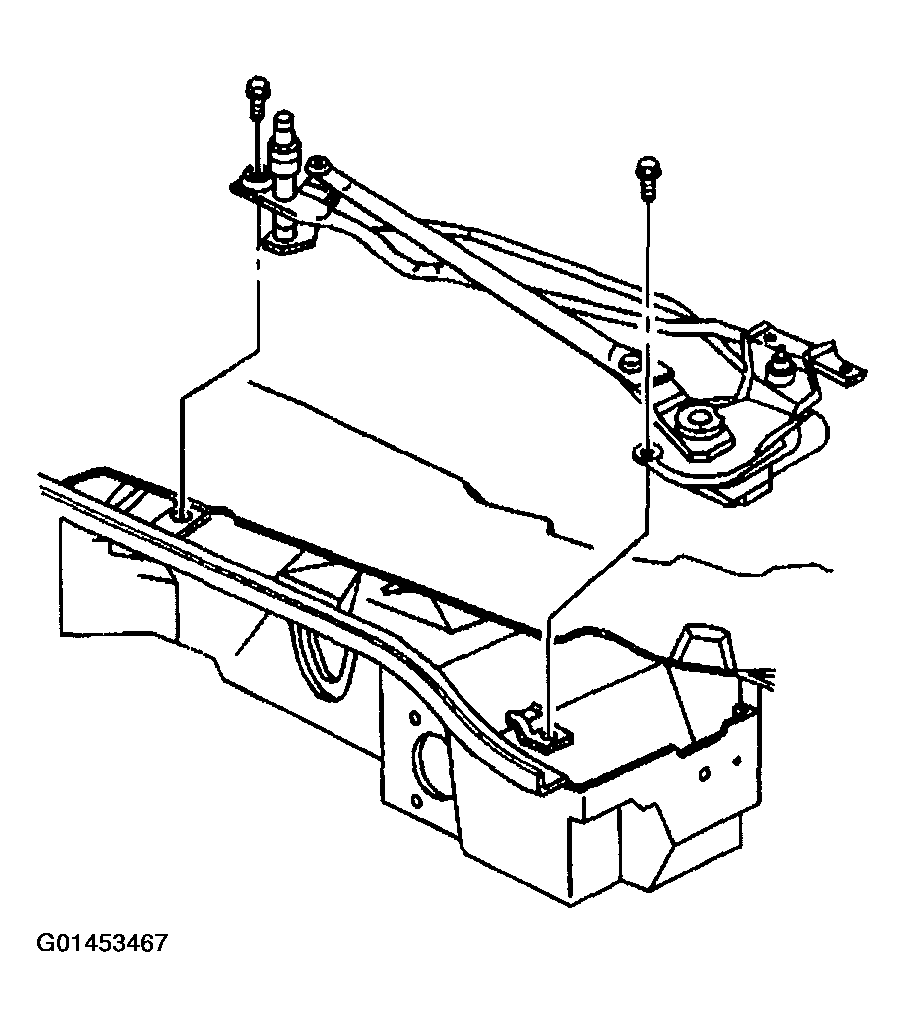

    Fig 2: Wiper Transmission Screws
    G01453467Courtesy of GENERAL MOTORS CORP.
