Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Install the recirculation actuator.

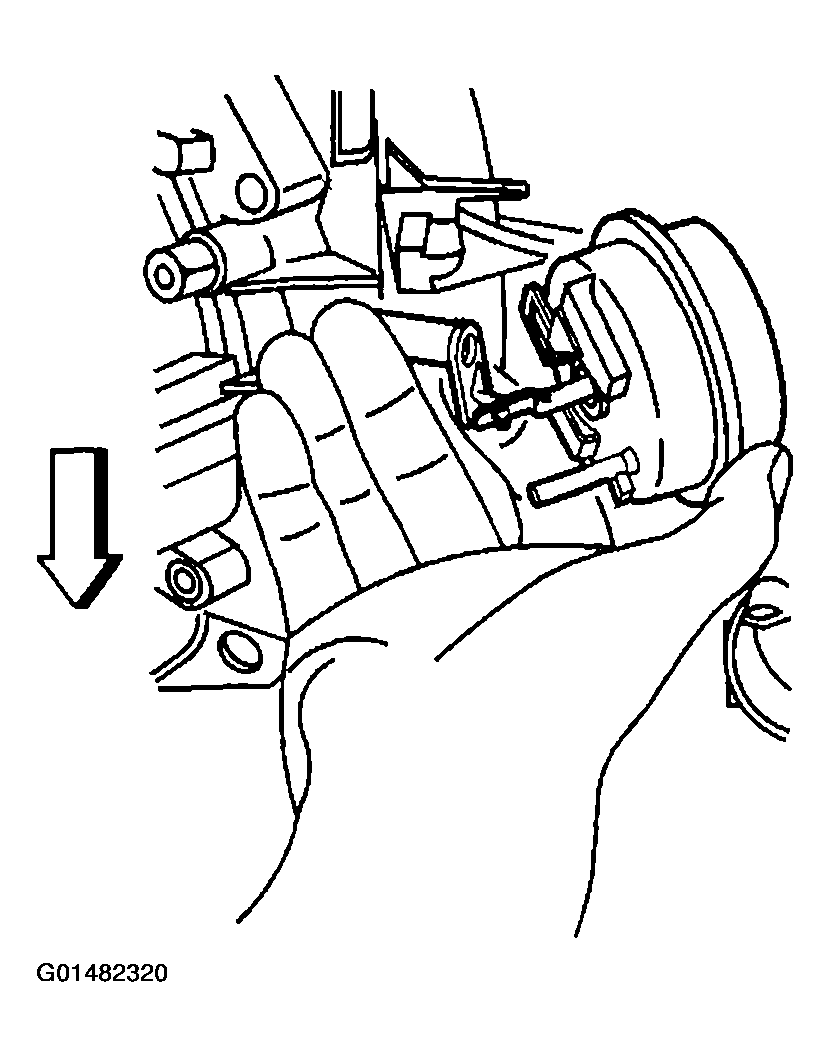

- Connect the recirculation actuator plunger rod to the recirculation door, then extend the plunger.
Important: During installation, ensure that the recirculation actuator retaining tab is positioned above the mating base on the HVAC control module case.
- Push the vacuum actuator toward the HVAC control module case to secure the retaining tab.
Important: Check that the vacuum actuator pushrod is not binding on the recirculation lever.
- Connect the vacuum harness connector to the recirculation actuator.
- Install the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) .
- Install the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
