Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the ashtray lamp socket.
  2. Install the socket to the lamp housing. Rotate the lamp counterclockwise to secure.
  3. Install the ashtray to the I/P. Refer to ASHTRAY REPLACEMENT in Instrument Panel, Gages and Console.

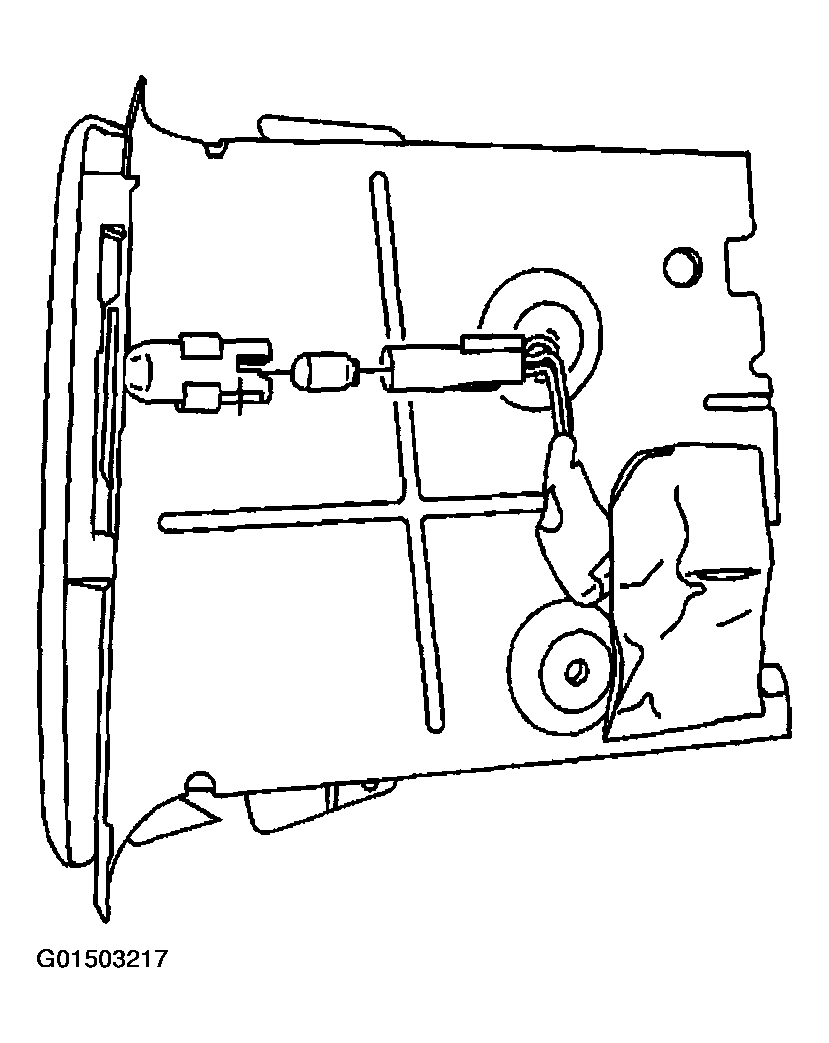

    Fig 1: Installing Bulb To Ashtray Lamp Socket
    G01503217Courtesy of GENERAL MOTORS CORP.
