Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) trim plate from the instrument panel (IP). Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connector from the fog lamp switch.
  3. Using a small flat-bladed tool, carefully release the retaining tabs on the IPC trim plate.
  4. Remove the fog lamp switch from the IPC trim plate.

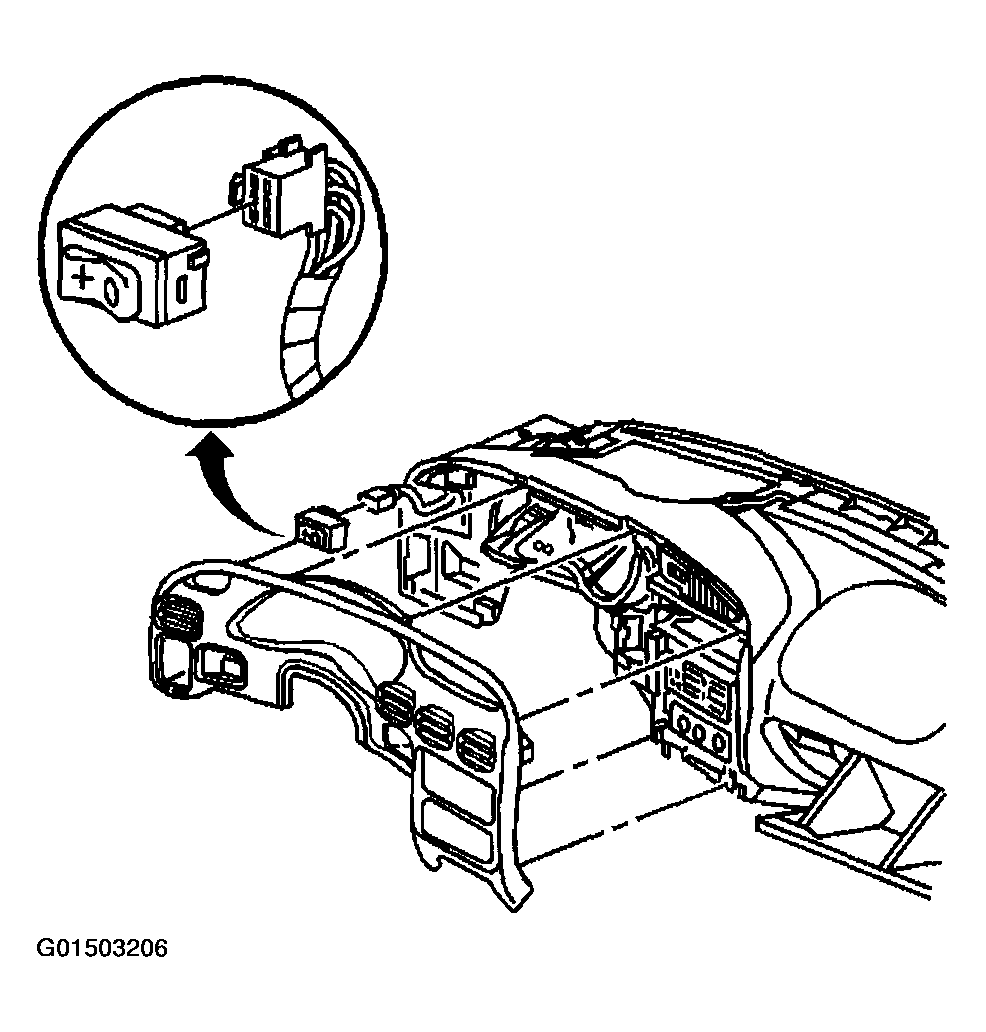

    Fig 1: Removing Fog Lamp Switch From Instrument Panel Cluster Trim Plate
    G01503206Courtesy of GENERAL MOTORS CORP.
