Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to HALOGEN BULB CAUTION in Cautions and Notices.
  1. Remove the headlamp assembly from the vehicle. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT  .
  2. Disconnect the electrical connector from the headlamp bulb/socket.
  3. Remove the headlamp capsule bolts from the headlamp bracket.
  4. Remove the headlamp capsule from the headlamp bracket.
  5. Remove the headlamp bulb/socket retaining ring from the capsule by rotating counterclockwise.
  6. Remove the headlamp bulb/socket from the capsule.

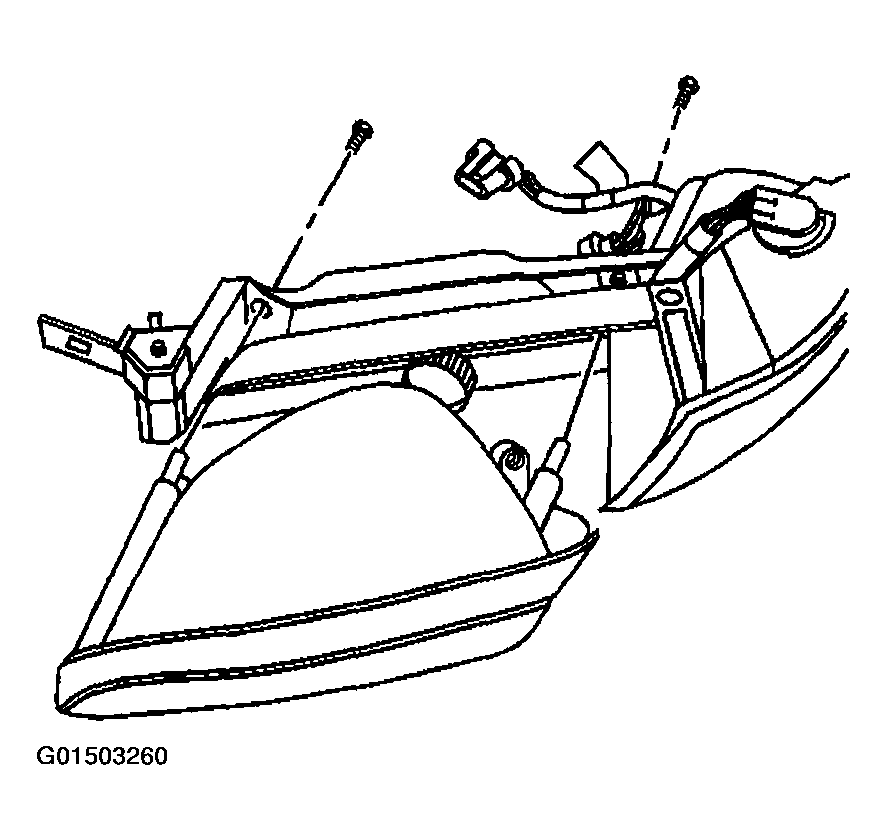

    Fig 1: Removing Headlamp Capsule Bolts From Headlamp Bracket
    G01503260Courtesy of GENERAL MOTORS CORP.
