Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  2. Open the rear compartment.
  3. Depress the 2 retaining tabs (1) on the underside of the high-mounted stoplamp and slide the lamp assembly toward the front of the vehicle.
  4. Close the rear compartment.
  5. From inside the vehicle, lift the high-mounted stoplamp assembly locating tabs (2) out of the slots on the rear shelf panel.
  6. Rotate the high-mounted stoplamp sockets counterclockwise to release from the high-mounted stoplamp assembly.

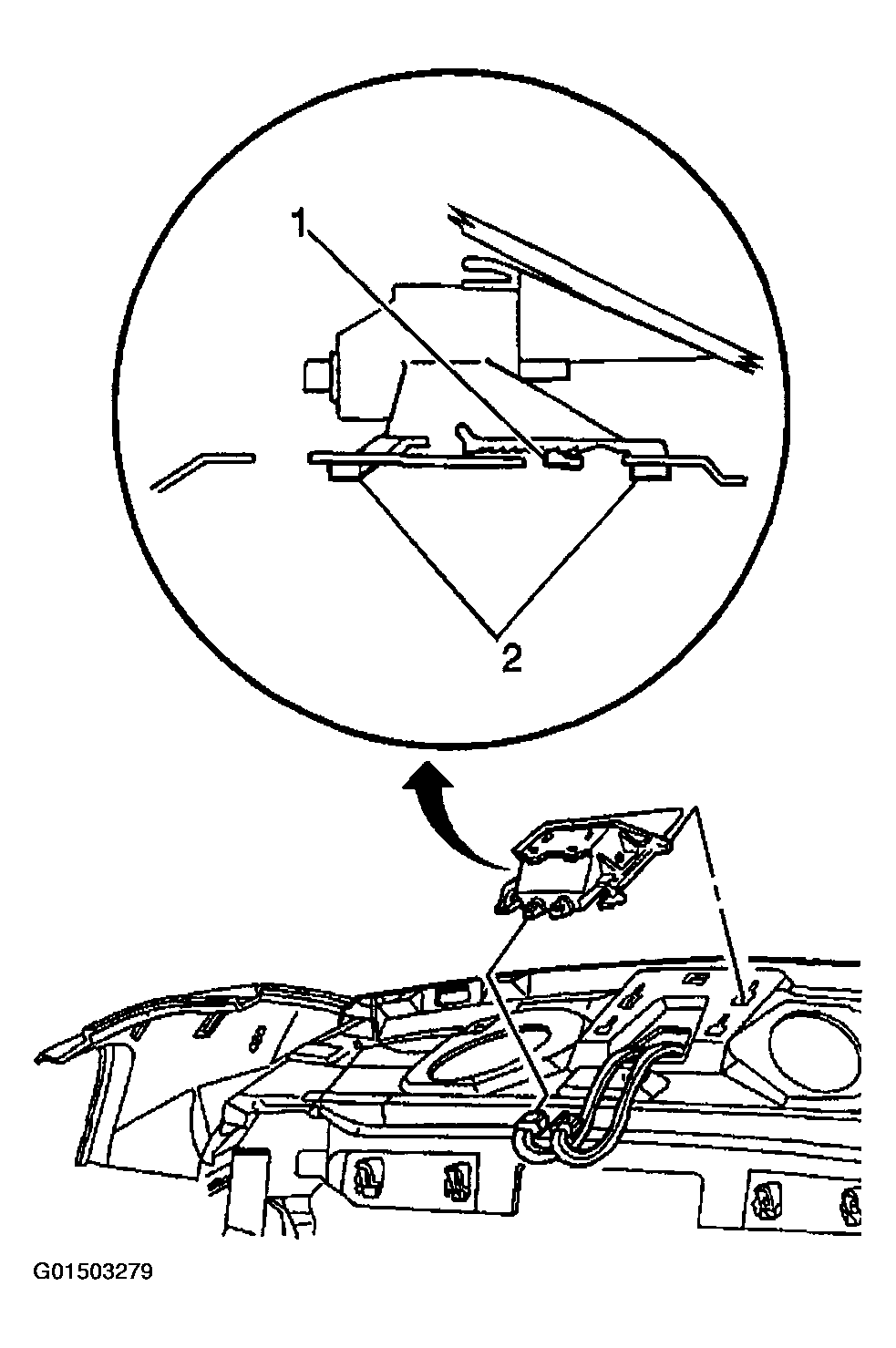

    Fig 1: Removing High Mounted Stop Lamp
    G01503279Courtesy of GENERAL MOTORS CORP.
