Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the license lamp screws from the rear bumper fascia.
  2. Lower the license lamp down from the rear bumper fascia.
  3. Rotate the license lamp socket counterclockwise to release from the license lamp housing.
  4. Remove the license lamp bulb from the socket, if replacing the bulb.

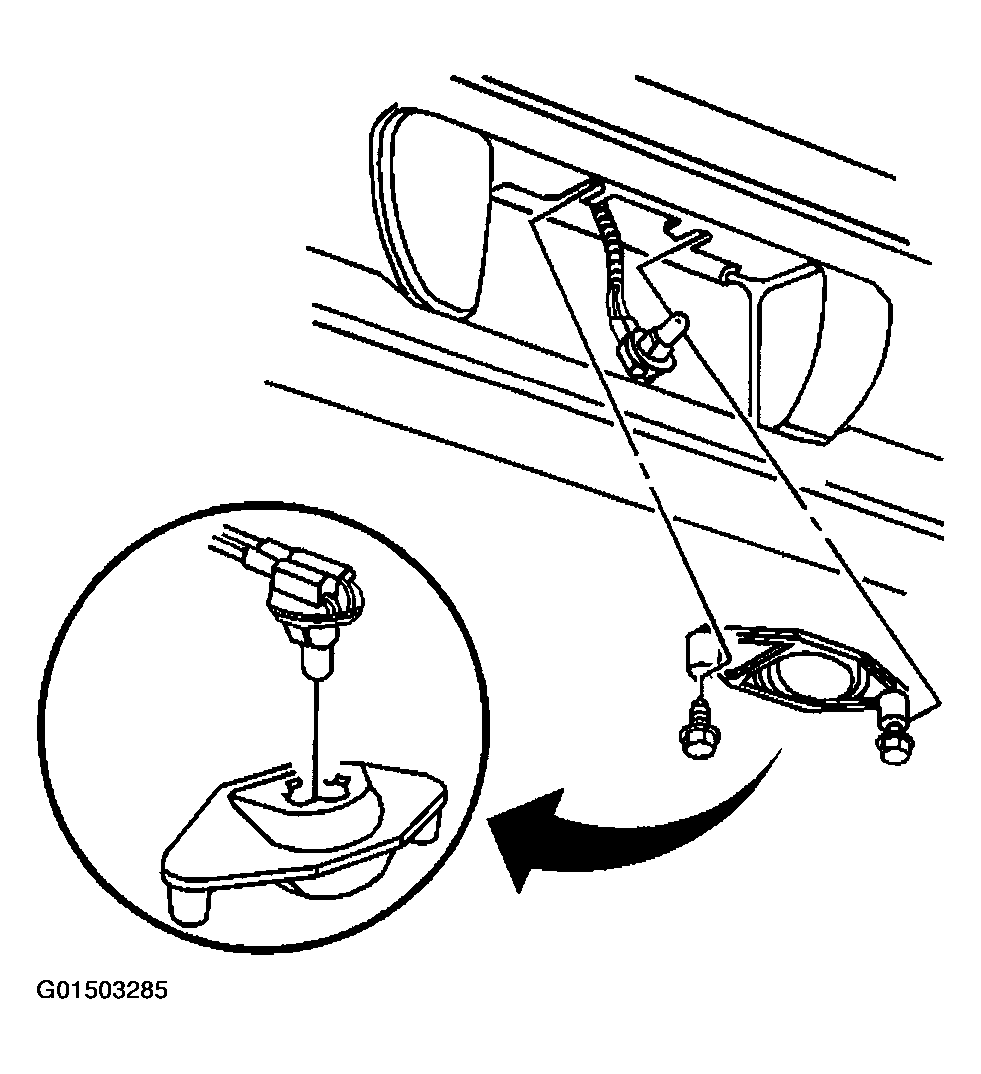

    Fig 1: Removing License Lamp
    G01503285Courtesy of GENERAL MOTORS CORP.
