Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the left side of the instrument panel (I/P) insulator.
- Disconnect the electrical connector from the stop lamp switch.

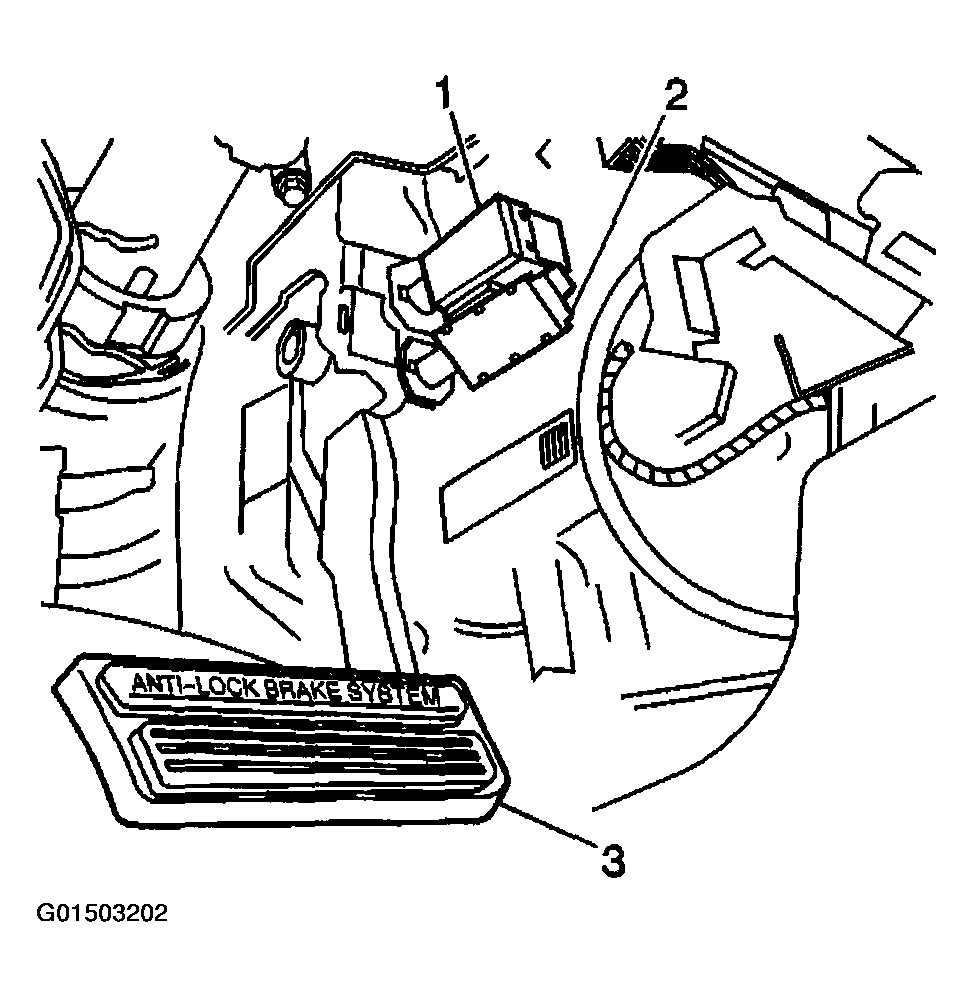

- Remove the stop lamp switch (2) from the brake pedal bracket.
Courtesy of GENERAL MOTORS CORP.
