Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container to the right frame rail.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the washer solvent container bracket screw.

    Tighten

    Tighten the screw to 10 N.m (89 lb in).

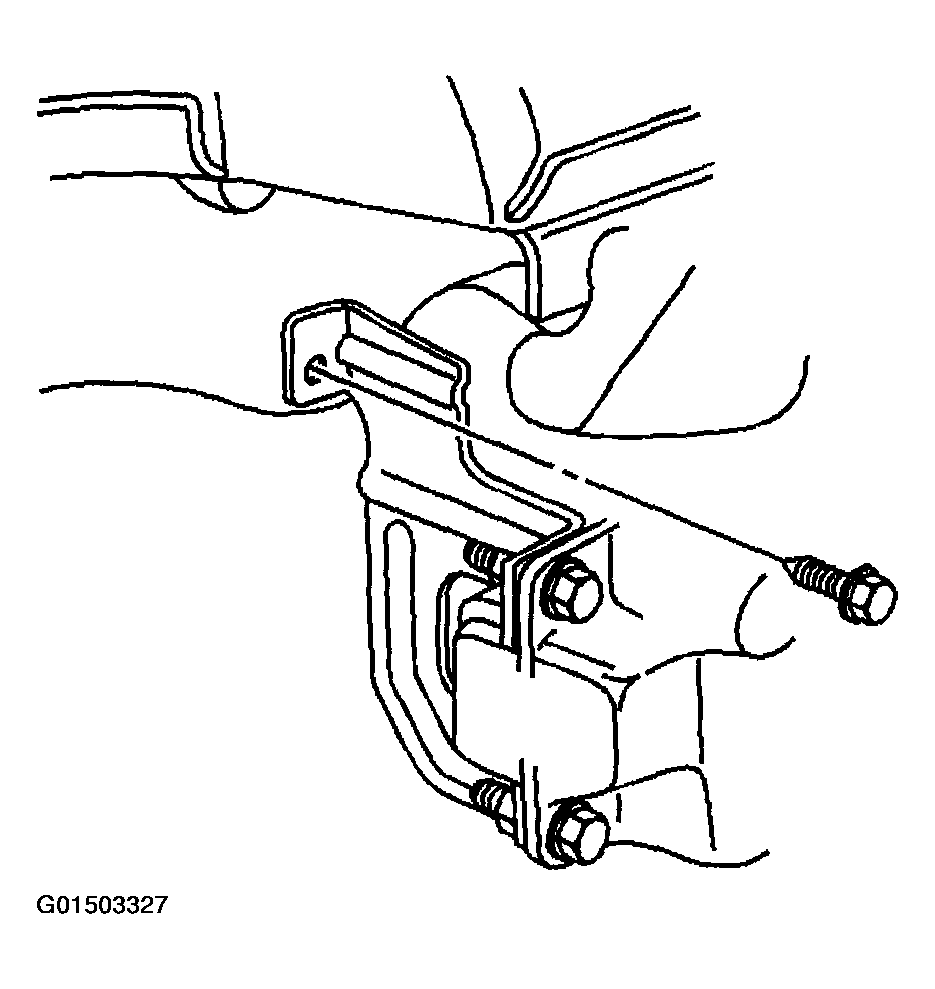

    Fig 1: Installing Washer Solvent Container Bracket Screw
    G01503327Courtesy of GENERAL MOTORS CORP.
  3. Connect the washer solvent level sensor electrical connector.
  4. Connect the washer pump electrical connector.
  5. Connect the washer pump hose.
  6. Install the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.
    Fig 2: Connecting Washer Solvent Level Sensor Electrical Connector
    G01503328Courtesy of GENERAL MOTORS CORP.
  7. Install the washer solvent container screws.

    Tighten

    Tighten the washer solvent container screws to 10N.m (89 lb in).

  8. Install the right headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT in Lighting Systems.
  9. Install the washer solvent container filler neck. Refer to WASHER SOLVENT CONTAINER FILLER NECK REPLACEMENT  .
  10. Fill the washer solvent container with washer solvent.

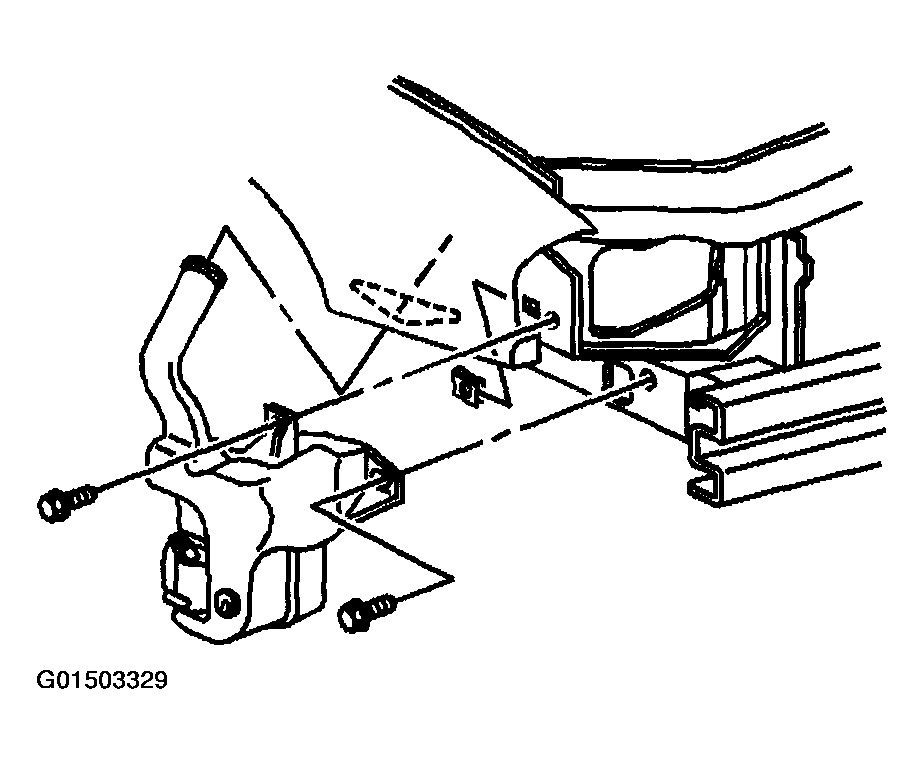

    Fig 3: Installing Washer Solvent Container Screws
    G01503329Courtesy of GENERAL MOTORS CORP.
