Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water shield and shaft seal onto the wiper motor.
  2. Position the wiper motor to the wiper drive system module.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the wiper motor screws.

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

  4. Install the wiper drive system module. Refer to WIPER DRIVE SYSTEM MODULE REPLACEMENT  .
  5. Install the wiper motor crank arm. Refer to WIPER MOTOR CRANK ARM REPLACEMENT  .
  6. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.

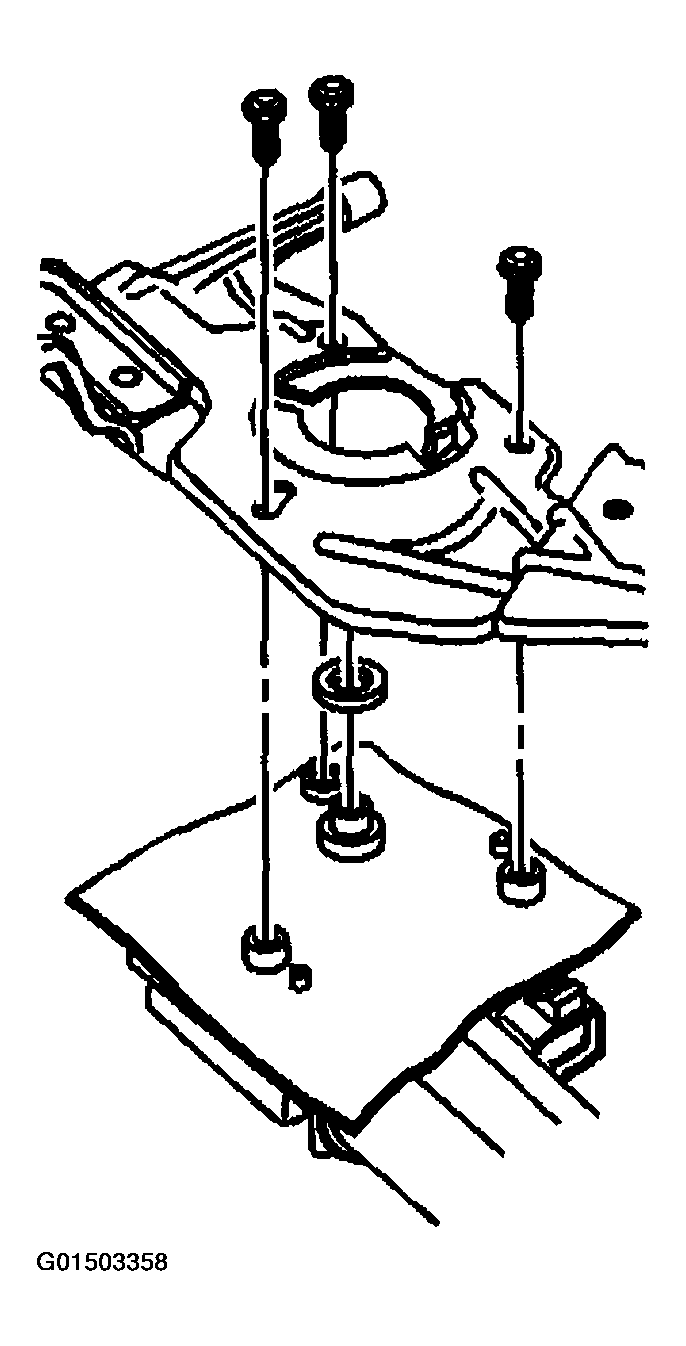

    Fig 1: Installing Water Shield And Shaft Seal Onto Wiper Motor
    G01503358Courtesy of GENERAL MOTORS CORP.
