Fig 1: Theft Deterrent Control Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 2: Theft LED Connector End View
Courtesy of GENERAL MOTORS CORP.

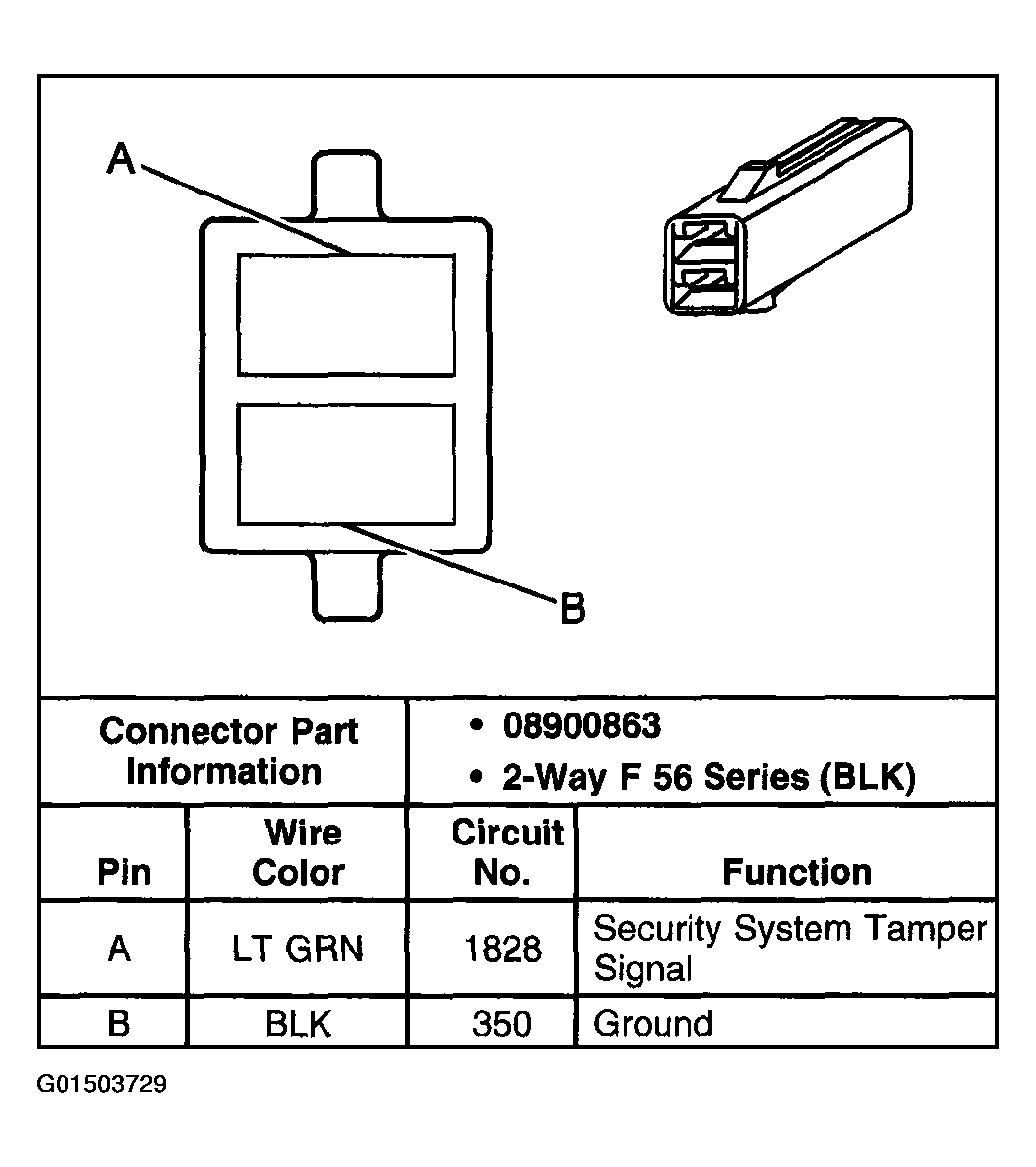

Fig 3: Rear Compartment Lid Ajar Switch Connector End View
