Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood to the vehicle with an assistant.
  2. Align the hood hinges to the alignment marks on the hood.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolts to the upper hood hinge, with an assistant.

    Tighten

    Tighten the upper hood hinge bolts to 27 N.m (20 Ib ft).

  4. Install the assist rods to the hood. Refer to ASSIST ROD REPLACEMENT - HOOD  .
  5. Adjust the hood. Refer to HOOD ADJUSTMENT  .

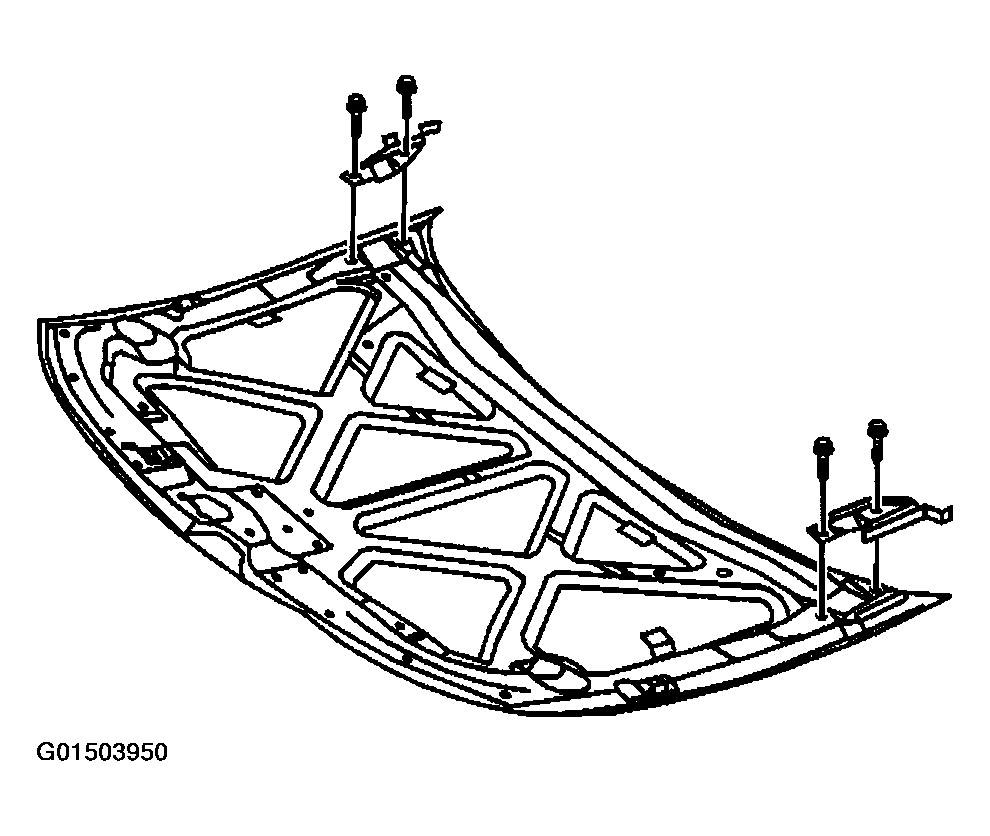

    Fig 1: Installing Bolts To Upper Hood Hinge
    G01503950Courtesy of GENERAL MOTORS CORP.
