Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the upper center pillar trim panel. Refer to Trim Panel Replacement - Upper Center Pillar .
Remove the bolts from the assist handle.

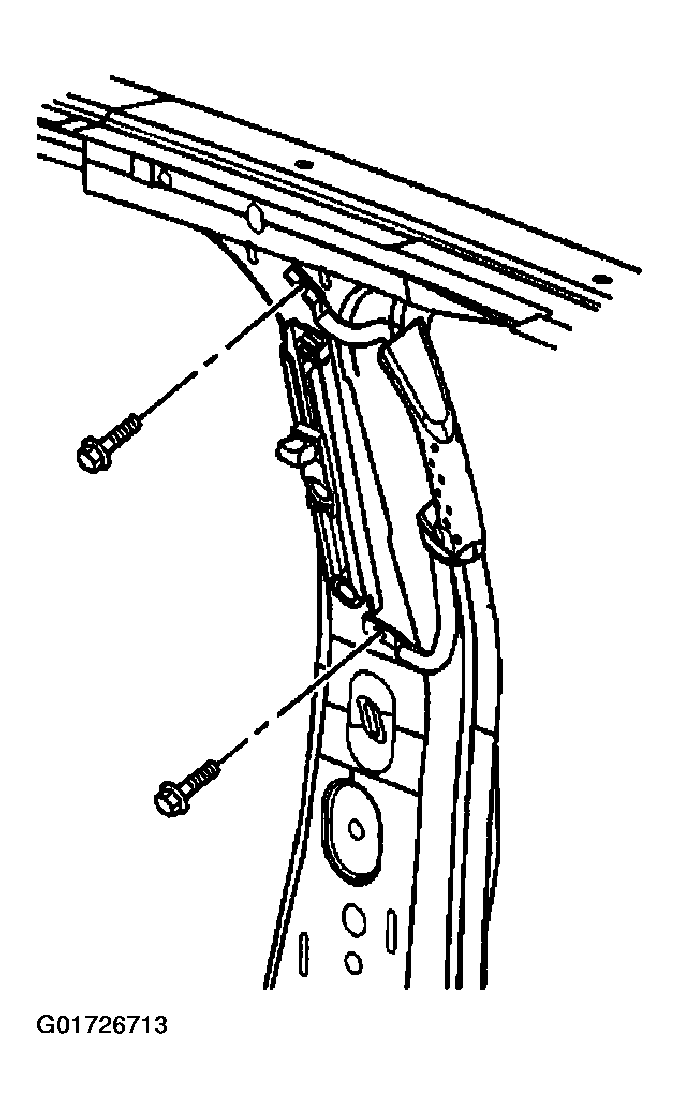

Fig 1: Removing Assist Handle Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the assist handle from the center pillar.

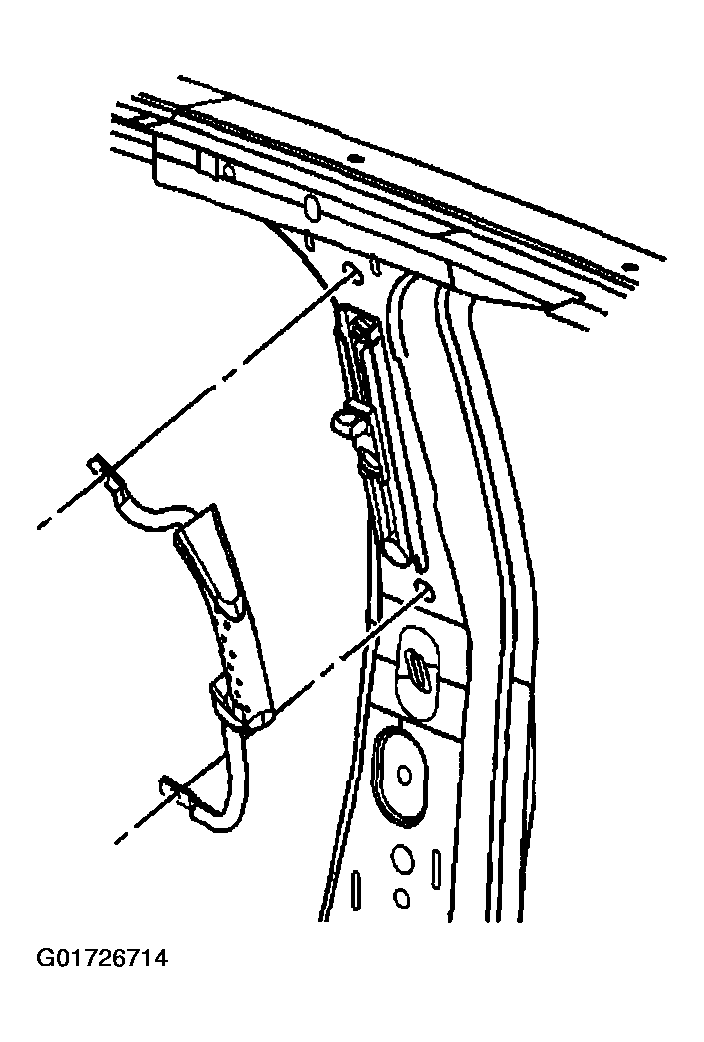

Fig 2: Removing Assist Handle
Courtesy of GENERAL MOTORS CORP.
