Scan Tool Data List
WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

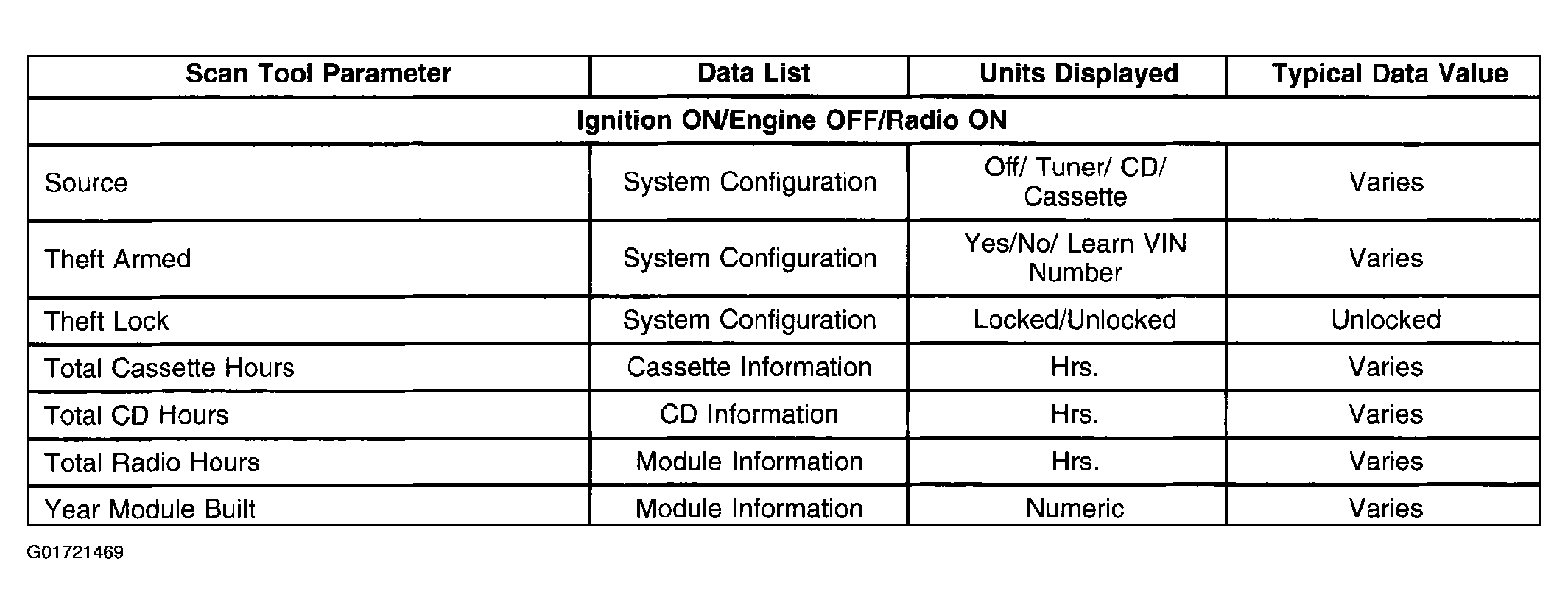

Fig 1: Radio / Integrated Radio Control 1 Of 2 (IRC)
Courtesy of GENERAL MOTORS CORP.

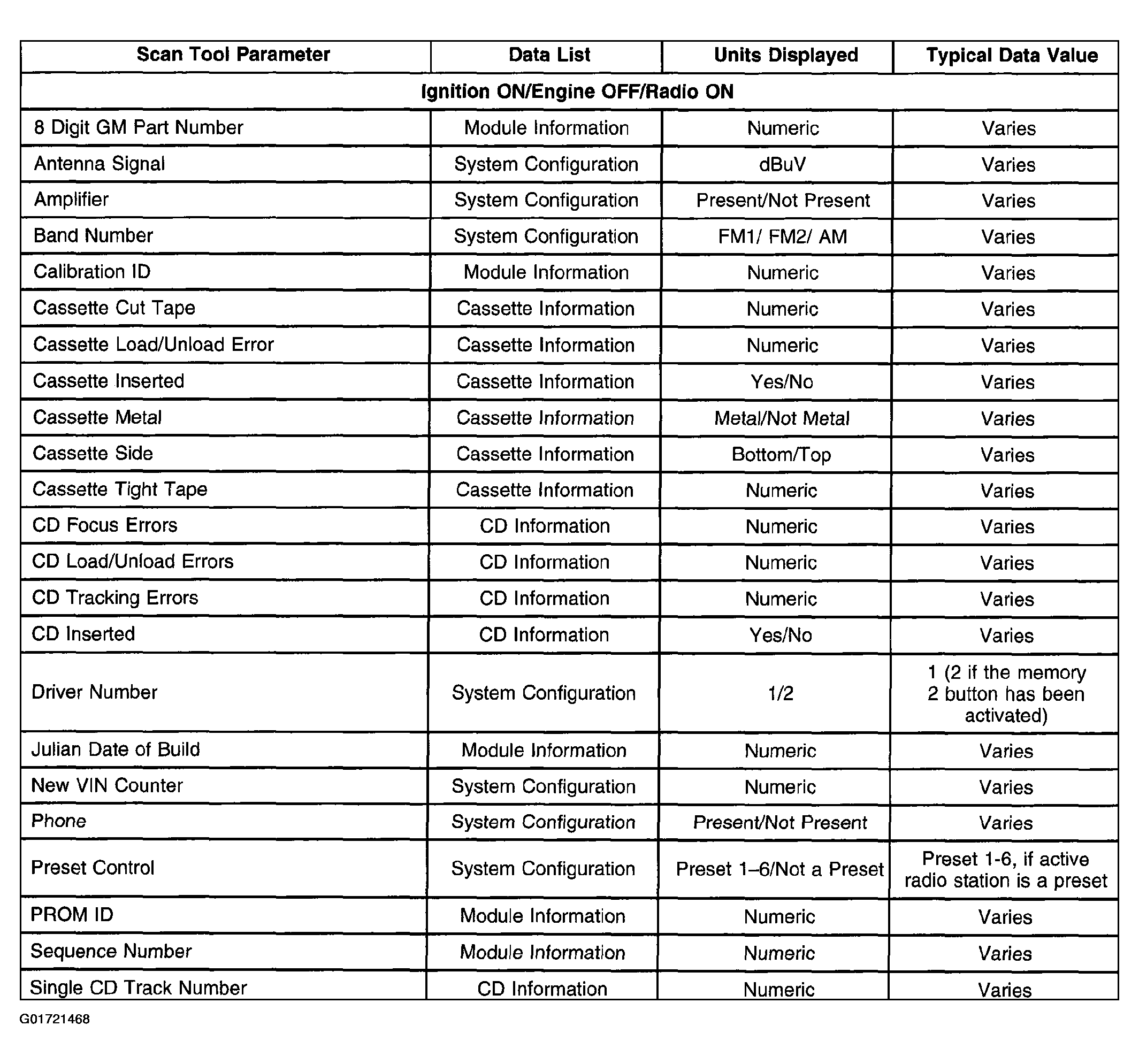

Fig 2: Radio / Integrated Radio Control 2 Of 2 (IRC)
