Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Align the rear cargo audio control to the trim panel.
NOTE: Refer to FASTENER NOTICE .
Install the screws.
Tighten

Tighten the screws to 2 N.m (18 lb in).

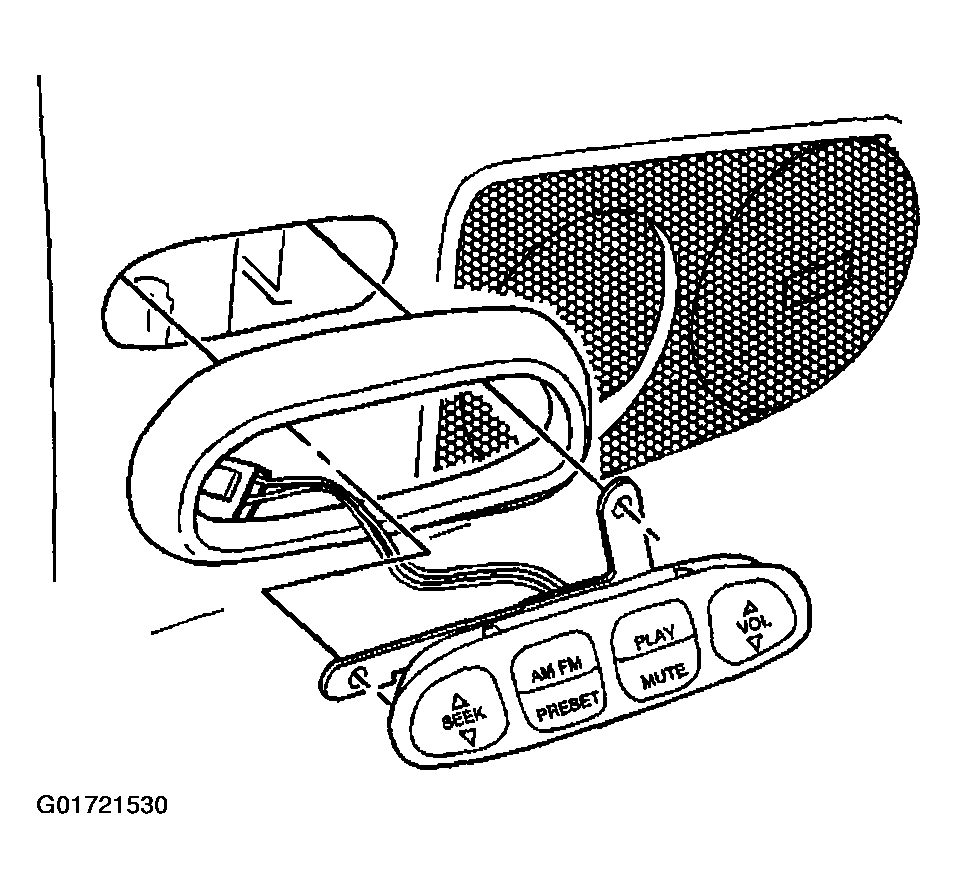

Fig 1: Installing Rear Cargo Audio Control
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector.
Install the rear trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .

Fig 2: Installing Rear Cargo Audio Control Screws
Courtesy of GENERAL MOTORS CORP.
