Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Position the fender liner to the fender, over the studs and behind the rocker molding.
NOTE: Refer to FASTENER NOTICE .
Install the nut to the stud at the rear of the front fender liner.
Tighten

Tighten the front fender liner rear nut to 10 N.m (89 lb in).

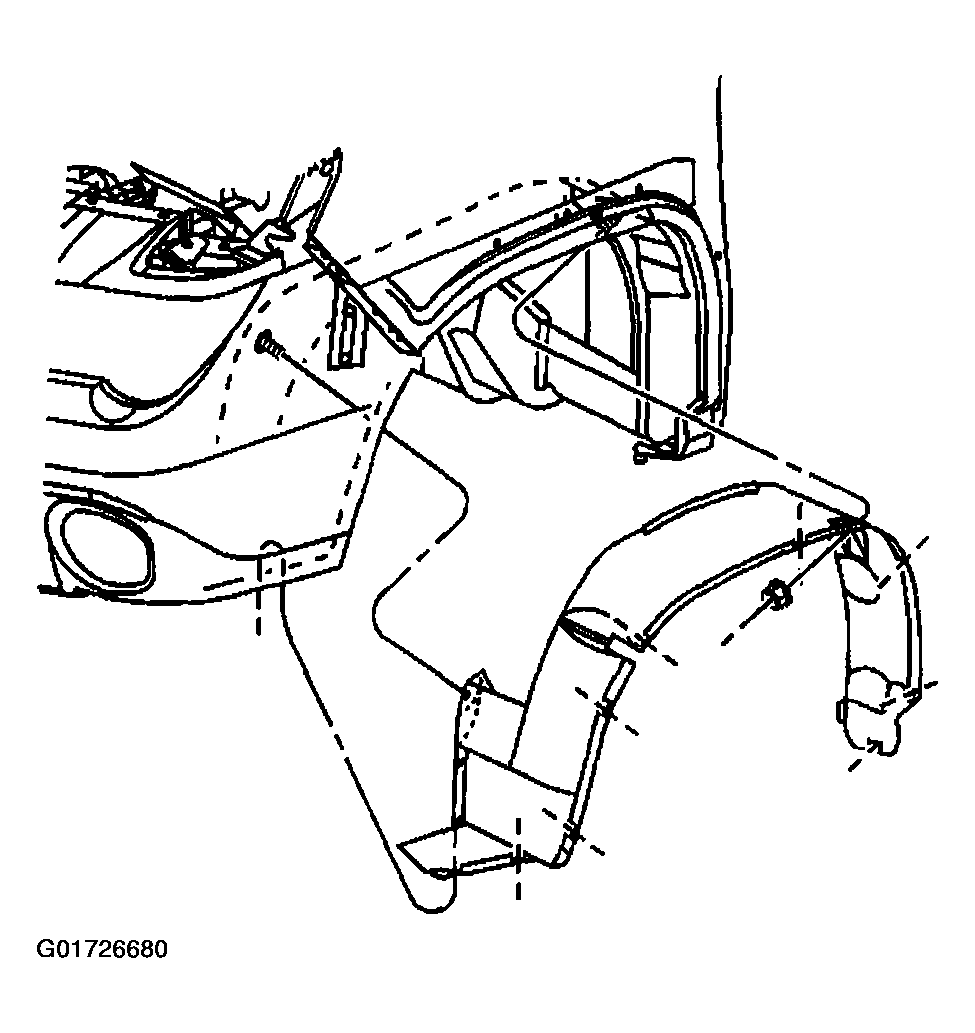

Fig 1: Installing Stud Nut At Front Of Front Fender Liner
Courtesy of GENERAL MOTORS CORP.
Install the nut to the stud at the front of the front fender liner.
Tighten

Tighten the front fender liner front nut to 10 N.m (89 lb in).

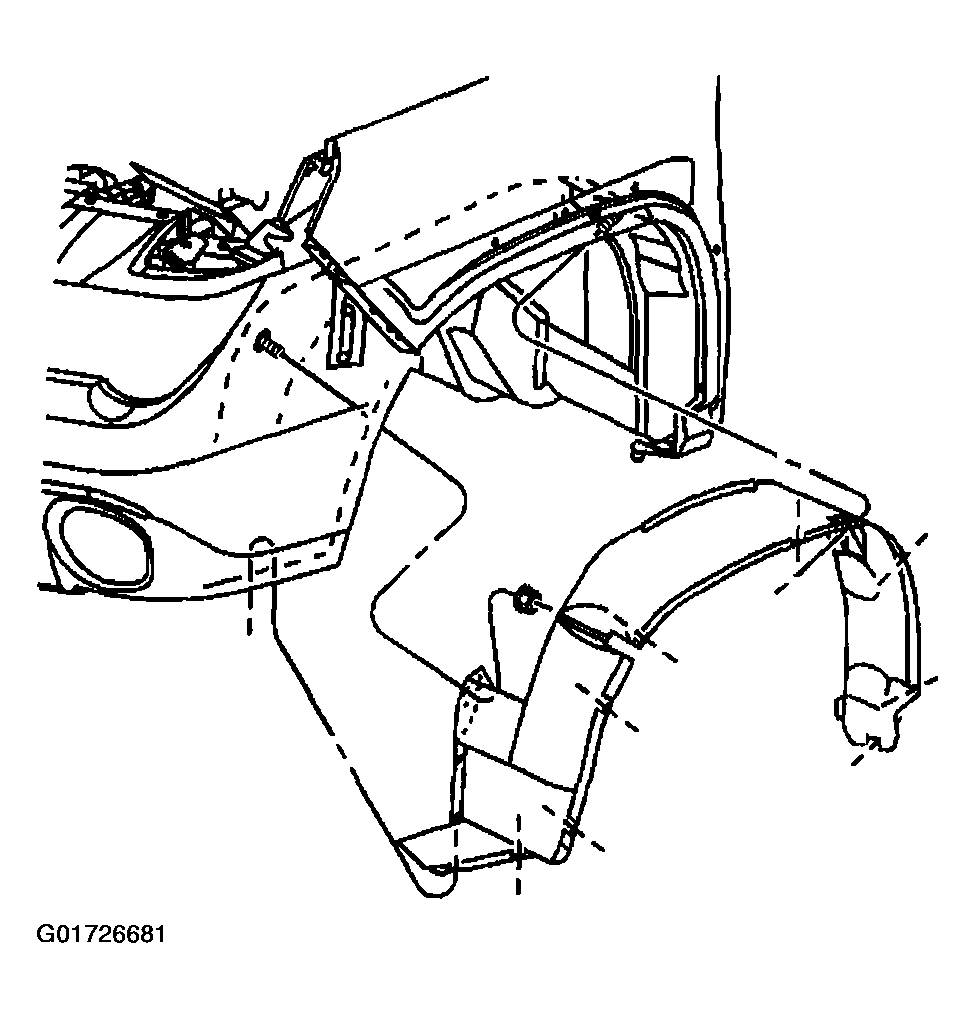

Fig 2: Installing Stud Nut At Rear Of Front Fender Liner
Courtesy of GENERAL MOTORS CORP.
Install the screws to the front fender liner at the front bumper fascia and fender.
Tighten

Tighten the front bumper fascia and fender screws to 2 N.m (18 lb in).

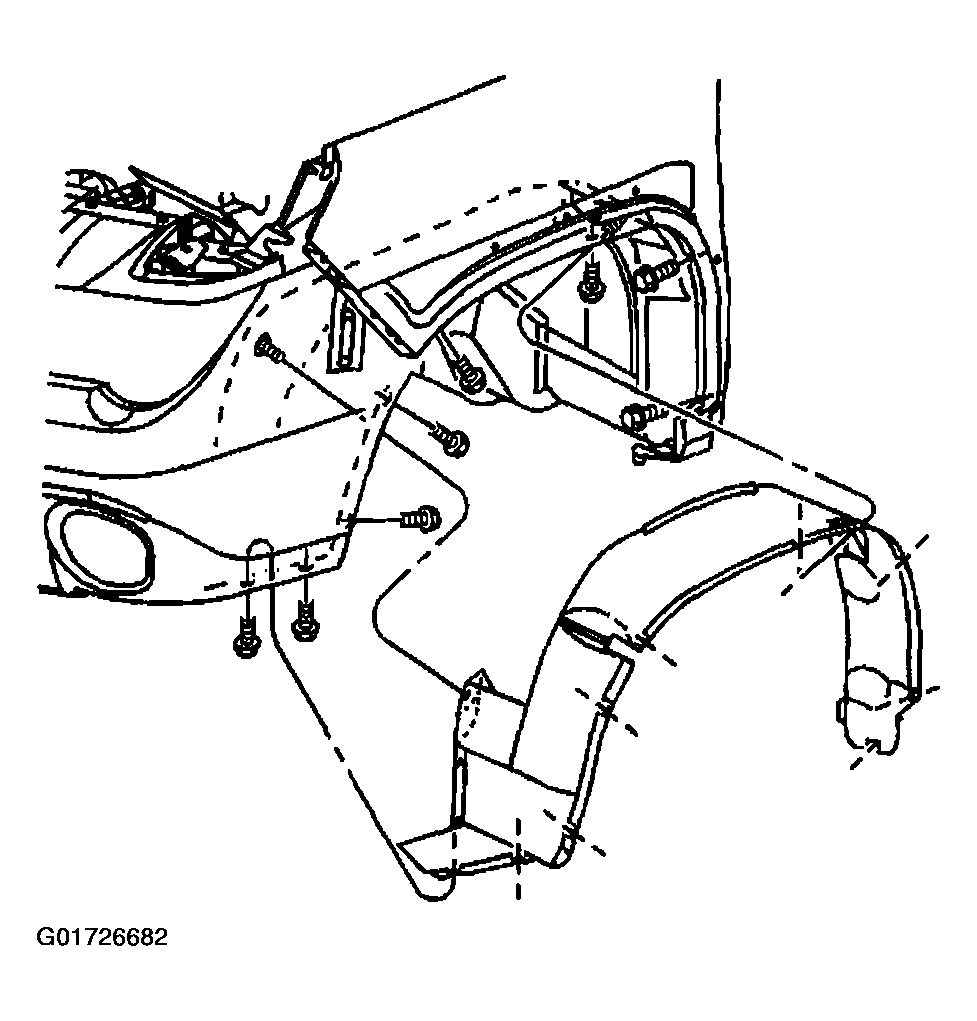

Fig 3: Installing Screws To Front Fender Liner
Courtesy of GENERAL MOTORS CORP.
