Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood to the vehicle, with an assistant.

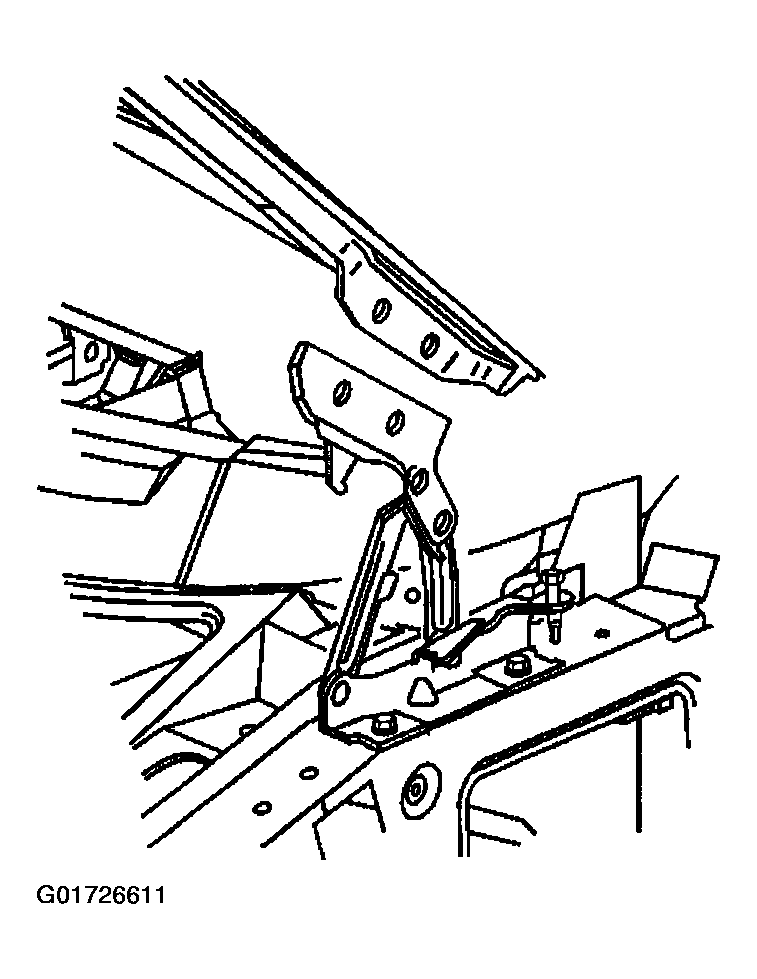

    Fig 1: Installing Hood
    G01726611Courtesy of GENERAL MOTORS CORP.
  2. Align the hood hinges to the alignment marks on the hood.

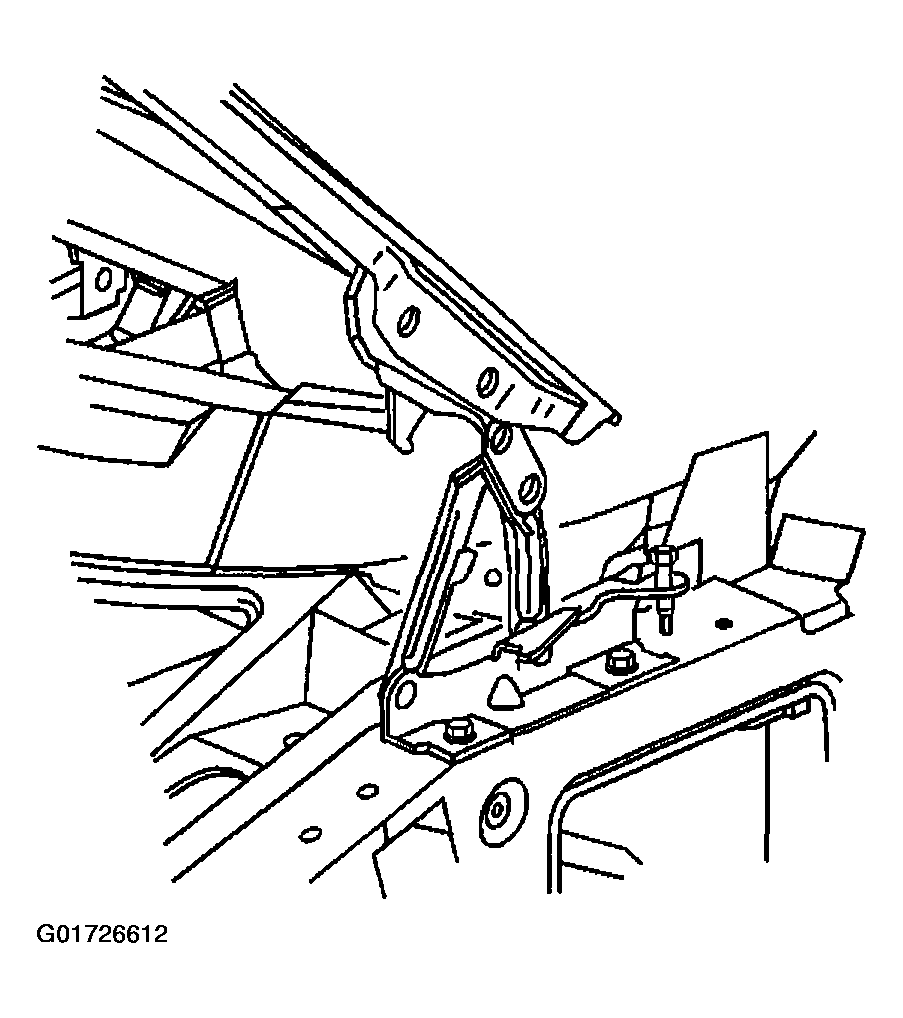

    Fig 2: Aligning Hood Hinges To Alignment Marks On Hood
    G01726612Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts to the upper hood hinge, with an assistant.

    Tighten

    Tighten the upper hood hinge bolts to 25 N.m (18 lb ft).

  4. Install the hood assist rods. Refer to Assist Rod Replacement - Hood .
  5. Adjust the hood as required. Refer to Hood Adjustment .

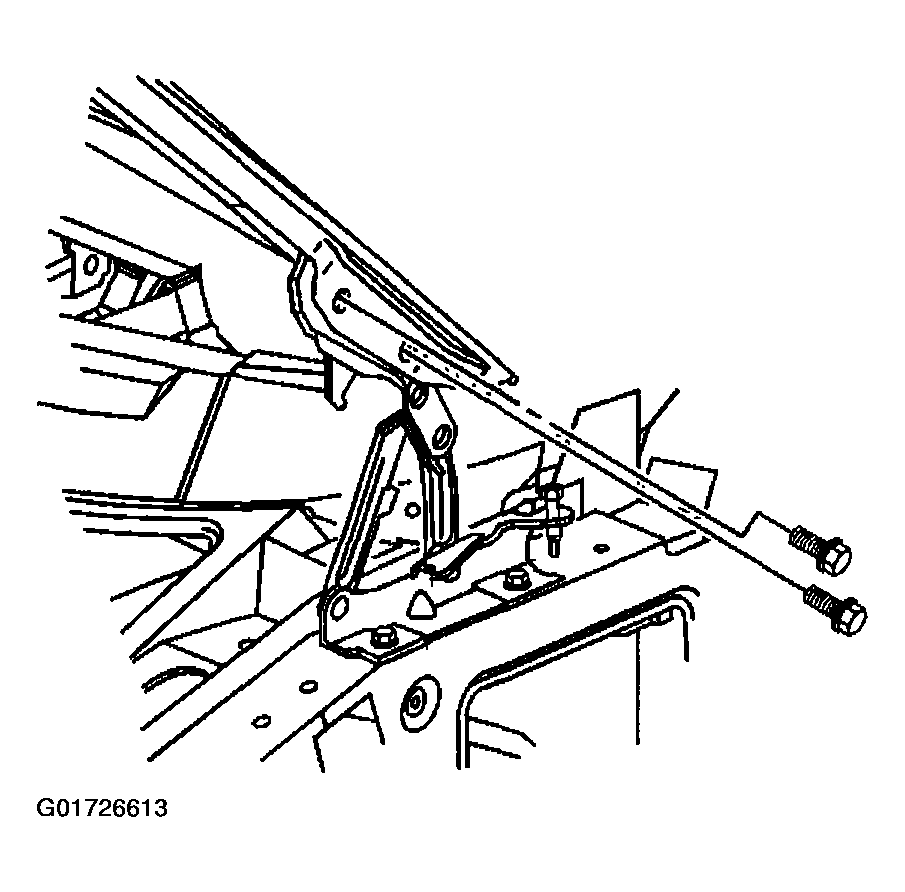

    Fig 3: Installing Bolts To Upper Hood Hinge
    G01726613Courtesy of GENERAL MOTORS CORP.
