Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the bulb into the socket.
  2. Install the rear cargo lamp lens into the rear cargo lamp, pressing into place fully seated.
  3. Connect the electrical connectors to the rear cargo lamp.

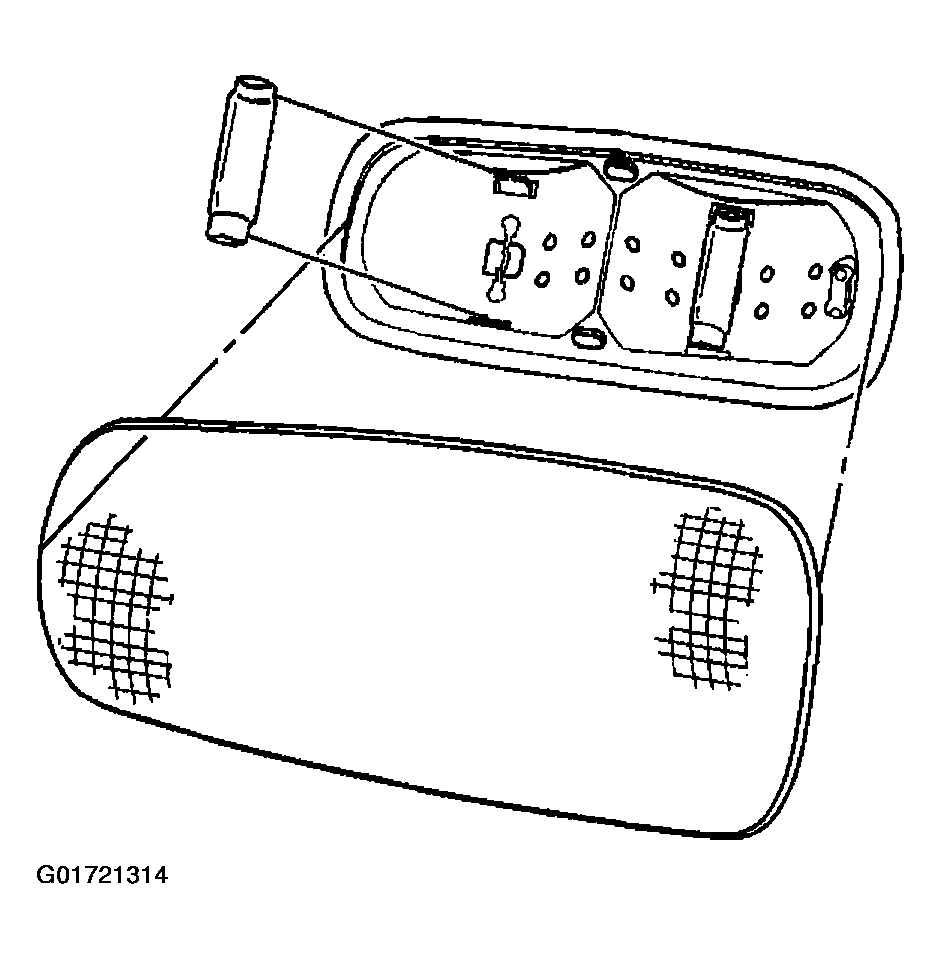

    Fig 1: Installing Rear Cargo Lamp Bulb
    G01721314Courtesy of GENERAL MOTORS CORP.
  4. Install the rear cargo lamp into the rear upper garnish molding, pressing into place until fully seated.

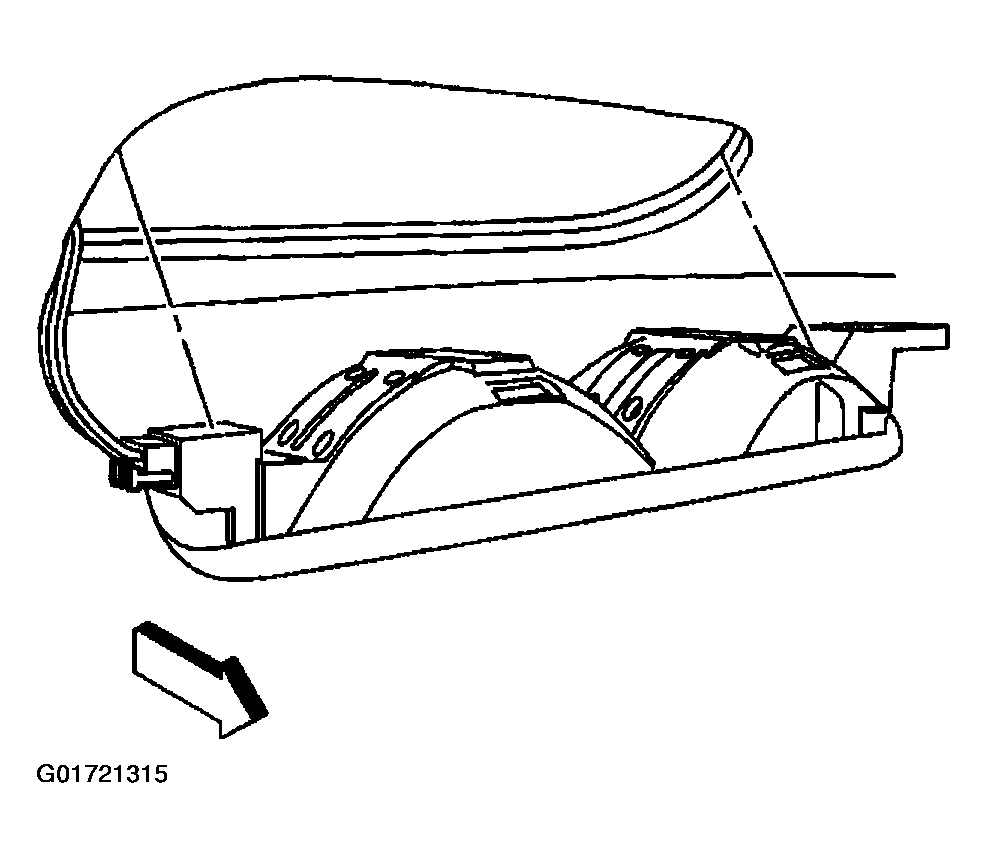

    Fig 2: Installing Rear Cargo Lamp
    G01721315Courtesy of GENERAL MOTORS CORP.
