Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the license plate lamp socket.
Install the license plate lamp socket, turning clockwise.
Install the license plate lamp to the end gate.

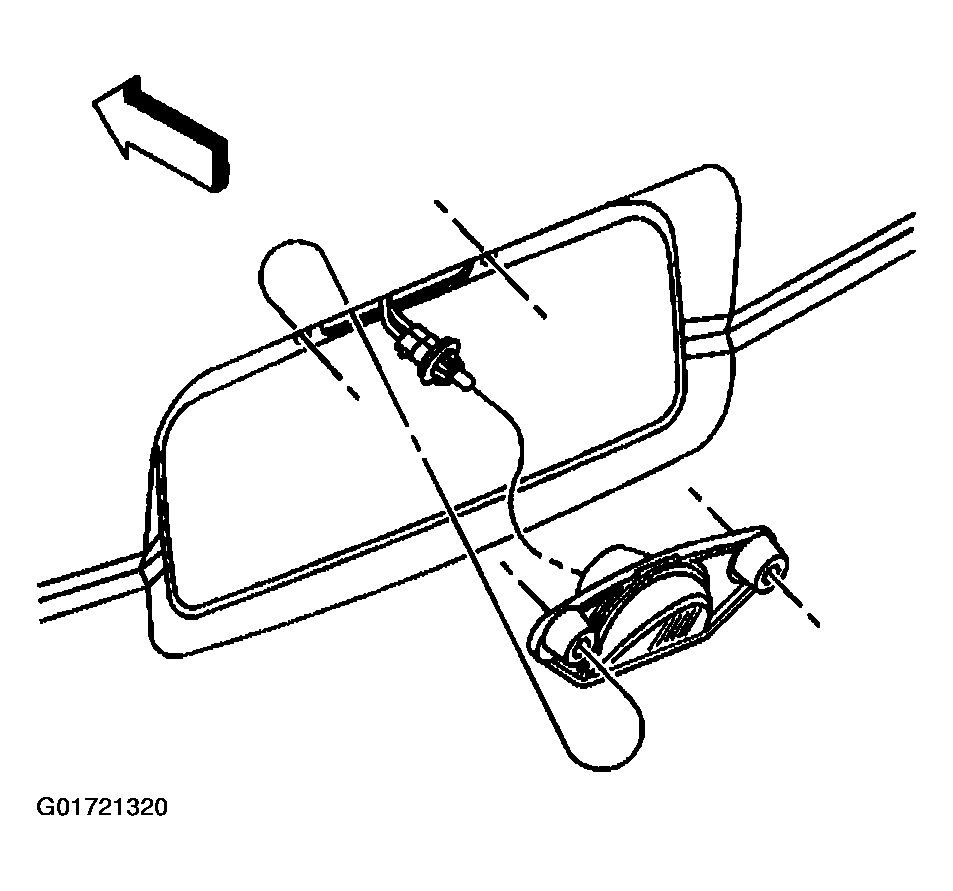

Fig 1: Installing License Plate Lamp Socket
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the screws to the license plate lamp.
Tighten

Tighten the screws to the license plate lamp to 2 N.m (18 lb in).
Install the license plate.

Fig 2: Installing License Plate Lamp Screws
Courtesy of GENERAL MOTORS CORP.
