Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cover to gain access to the center armrest bolts, if equipped.
Remove the bolts that retain the center armrest to the seat frame.
Remove the center arm rest from the vehicle.

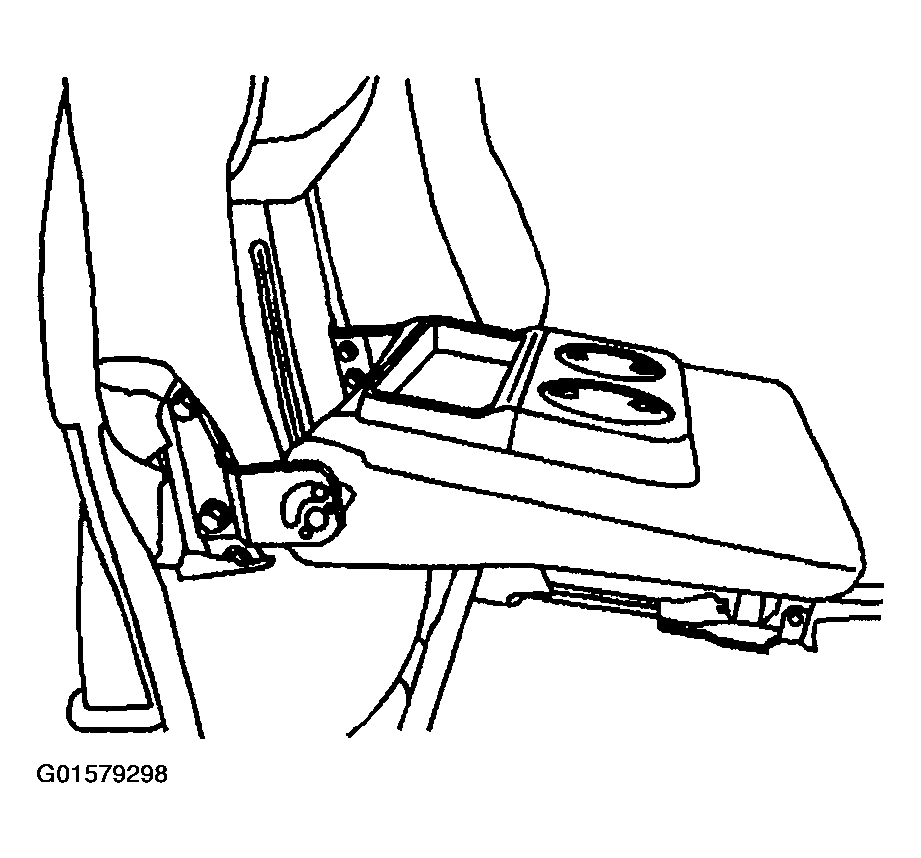

Fig 1: Rear Seat Armrest (60/40 Split)
Courtesy of GENERAL MOTORS CORP.
