Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the head restraint retainers by pressing into the seat back frame until the retaining tabs snap into place at the bottom of the frame opening.

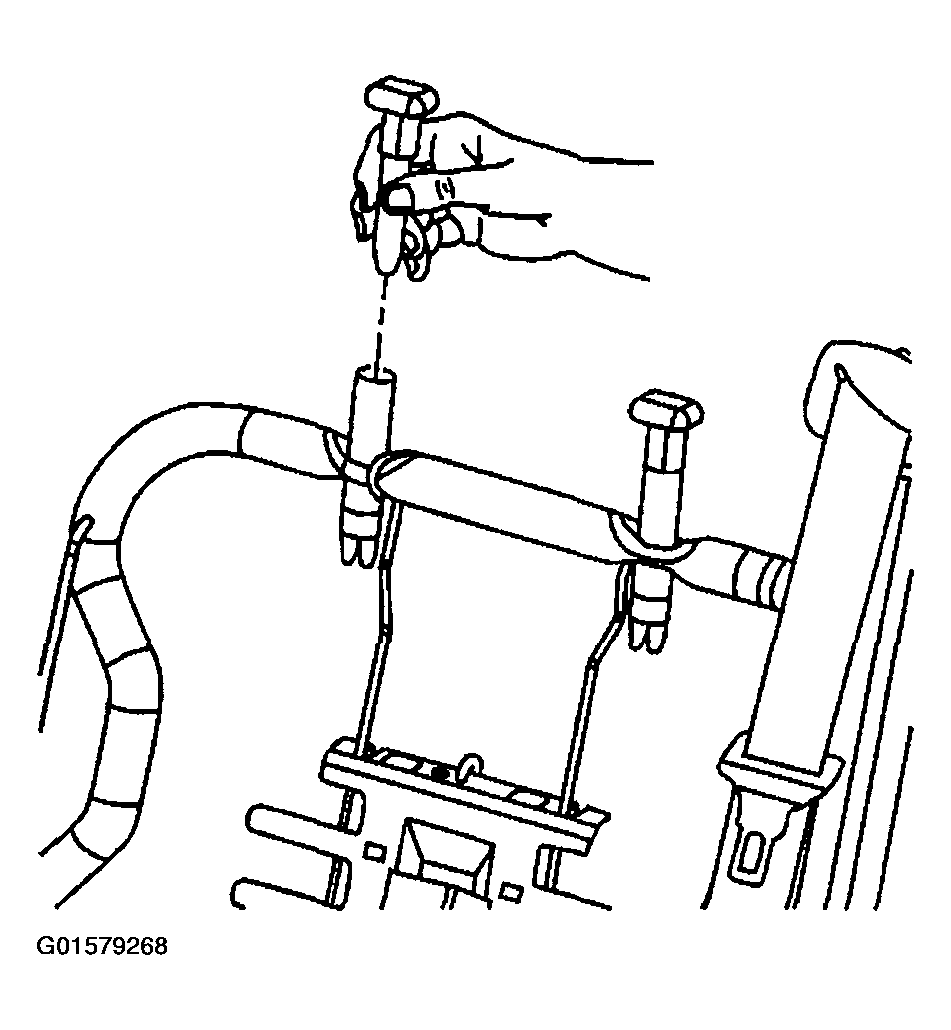

    Fig 1: Installing Head Restraint Retainers
    G01579268Courtesy of GENERAL MOTORS CORP.
  2. Position the cardboard panel to the seat back frame and install the panel fasteners.
  3. Install the seat back trim cover. Refer to Seat Back Cover And Pad Replacement-Front   .
    Fig 2: Installing Panel Fasteners
    G01579269Courtesy of GENERAL MOTORS CORP.
