Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion cover to the foam pad.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the center screw retaining the latch cover, if removed.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

  3. Engage the hook, and the loop-strips that are retaining the seat cushion cover (3) to the foam pad (4).
  4. Install the seat buckles, if removed. Refer to SEAT BELT BUCKLE AND LATCH REPLACEMENT-REAR (EXTENDED CAB) or SEAT BELT BUCKLE AND LATCH REPLACEMENT-REAR (CREW CAB) .
  5. Connect the rear heater connector, if equipped.
  6. Install the hog rings, and/or the J-clips in order to retain the seat cushion cover to the seat cushion frame (8).
  7. Install the rear passenger seat risers.
  8. Install the rear seat to the vehicle. Refer to Seat Replacement-Rear (Extended Cab W/4Th Door)   or Seat Replacement-Rear (Extended Cab)   or Seat Replacement-Rear (60/40 Split)   .

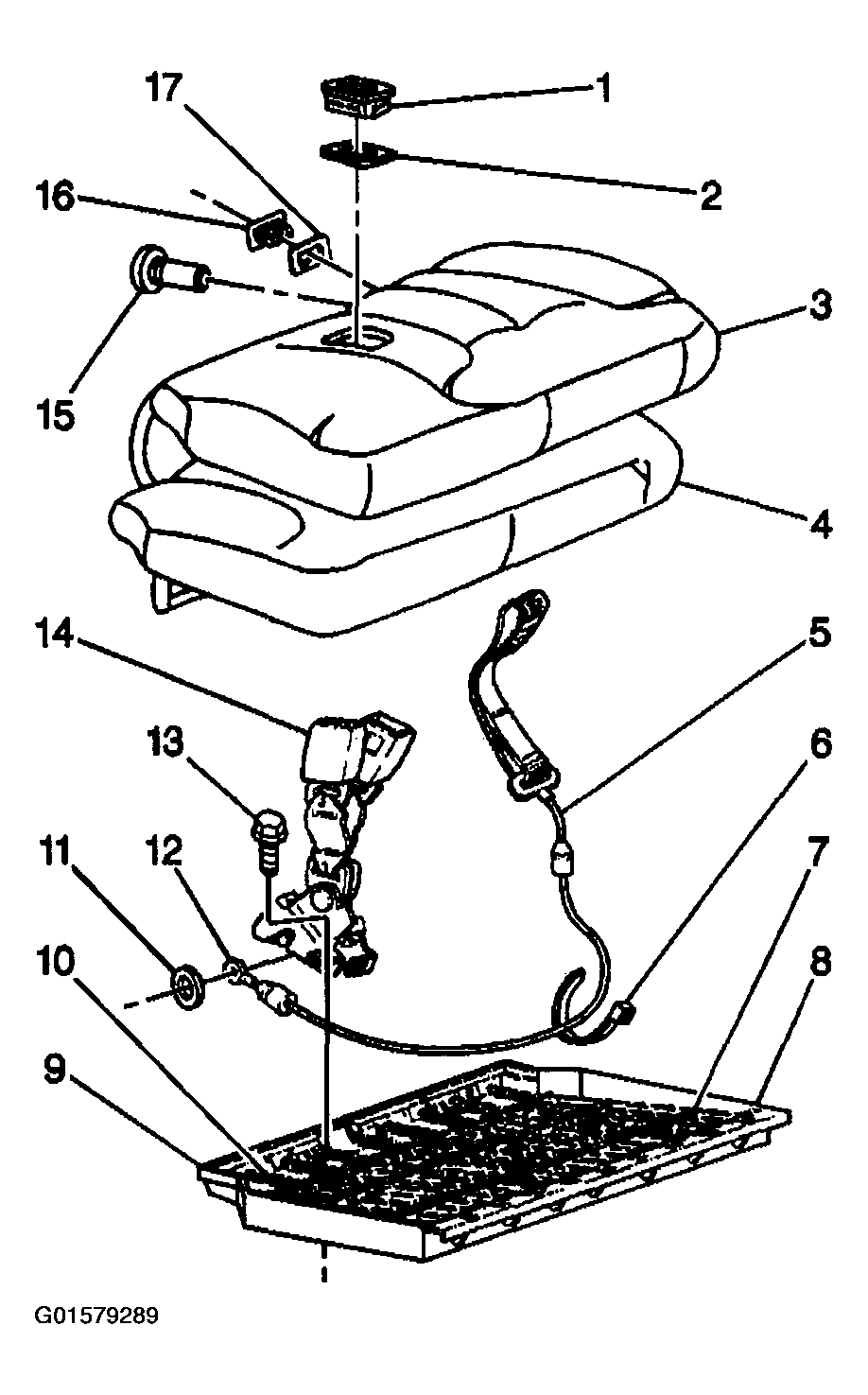

    Fig 1: Rear Seat Cushion Cover & Pad
    G01579289Courtesy of GENERAL MOTORS CORP.
