Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .

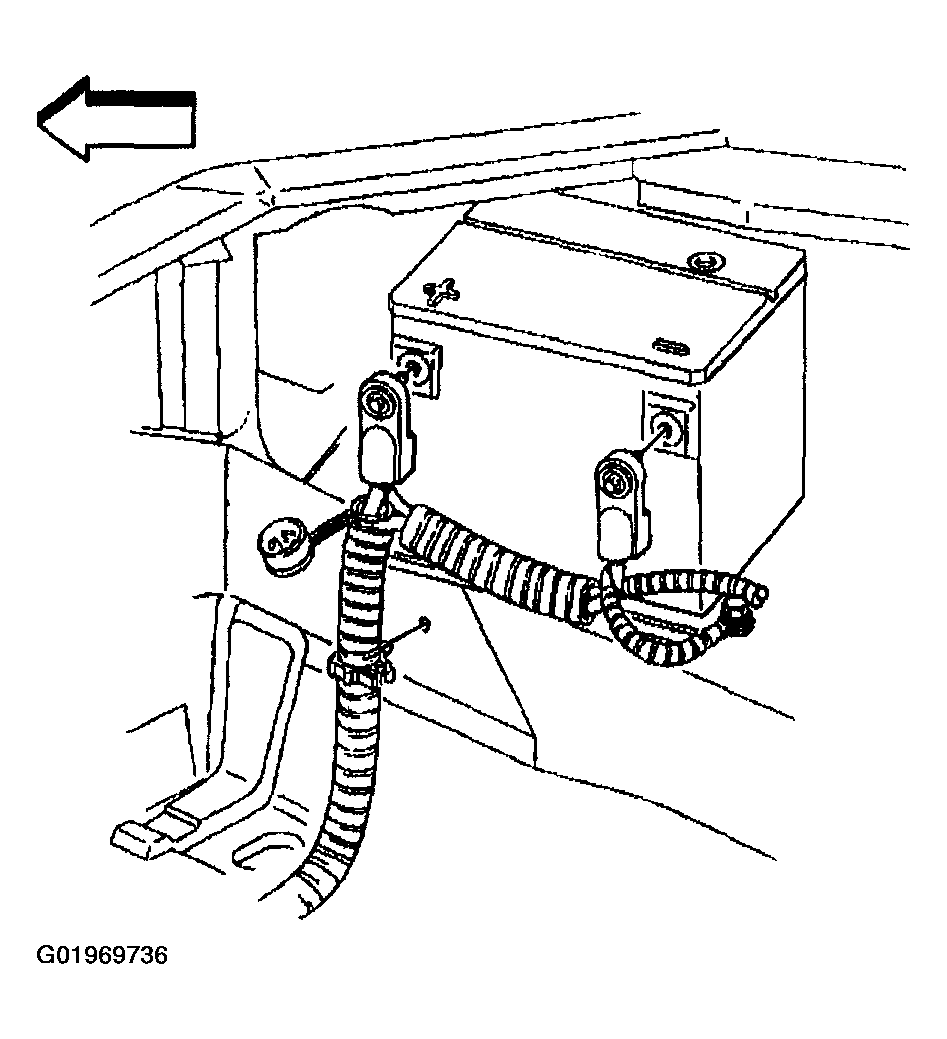

    Fig 1: Disconnecting Positive & Negative Battery Cables
    G01969736Courtesy of GENERAL MOTORS CORP.
  2. Remove the right front diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL in Body Front End.
  3. Disconnect the positive battery cable.
  4. Remove the retainer bolt (1) that holds the battery in place.

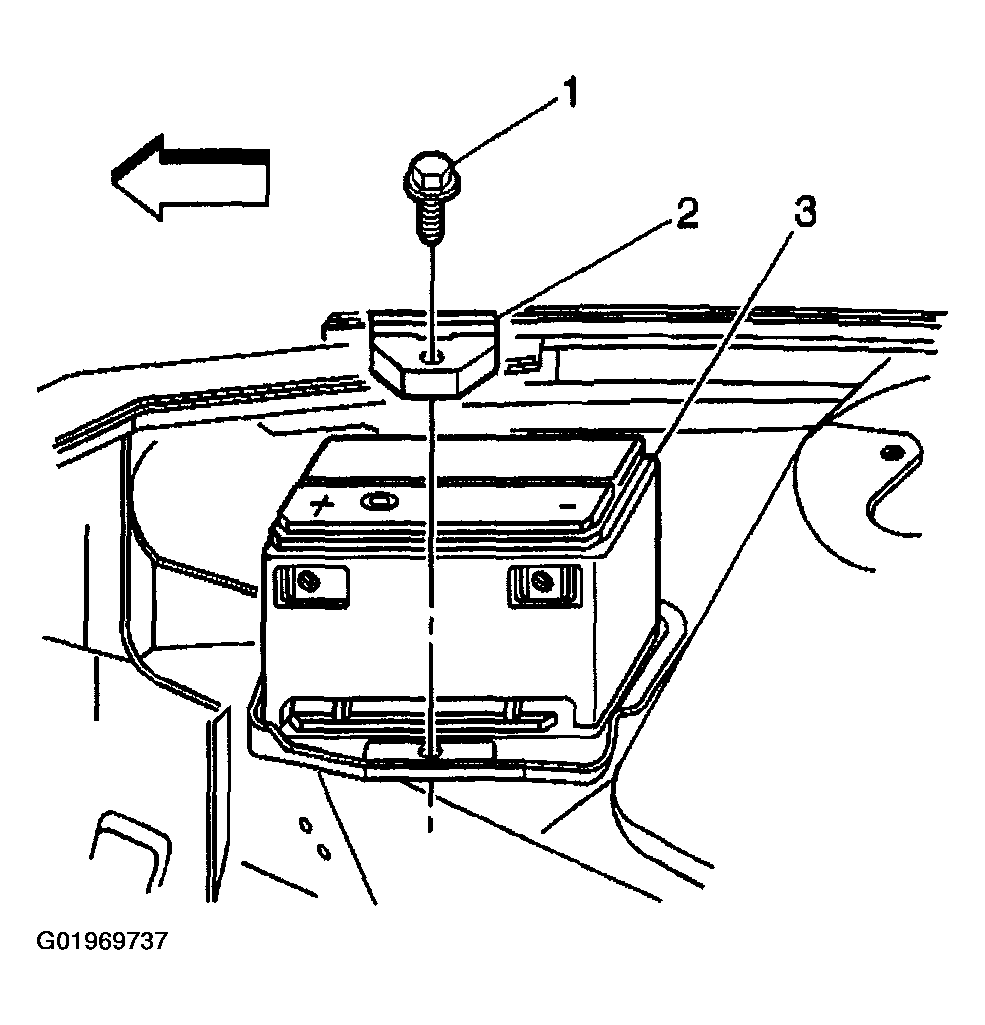

    Fig 2: Removing Battery & Retainer Bolt
    G01969737Courtesy of GENERAL MOTORS CORP.
  5. Remove the battery retainer (2).
    IMPORTANT: Do not tip the battery more than 40 degrees during removal.
  6. Remove the battery (3).
  7. Remove the insulator from the battery.

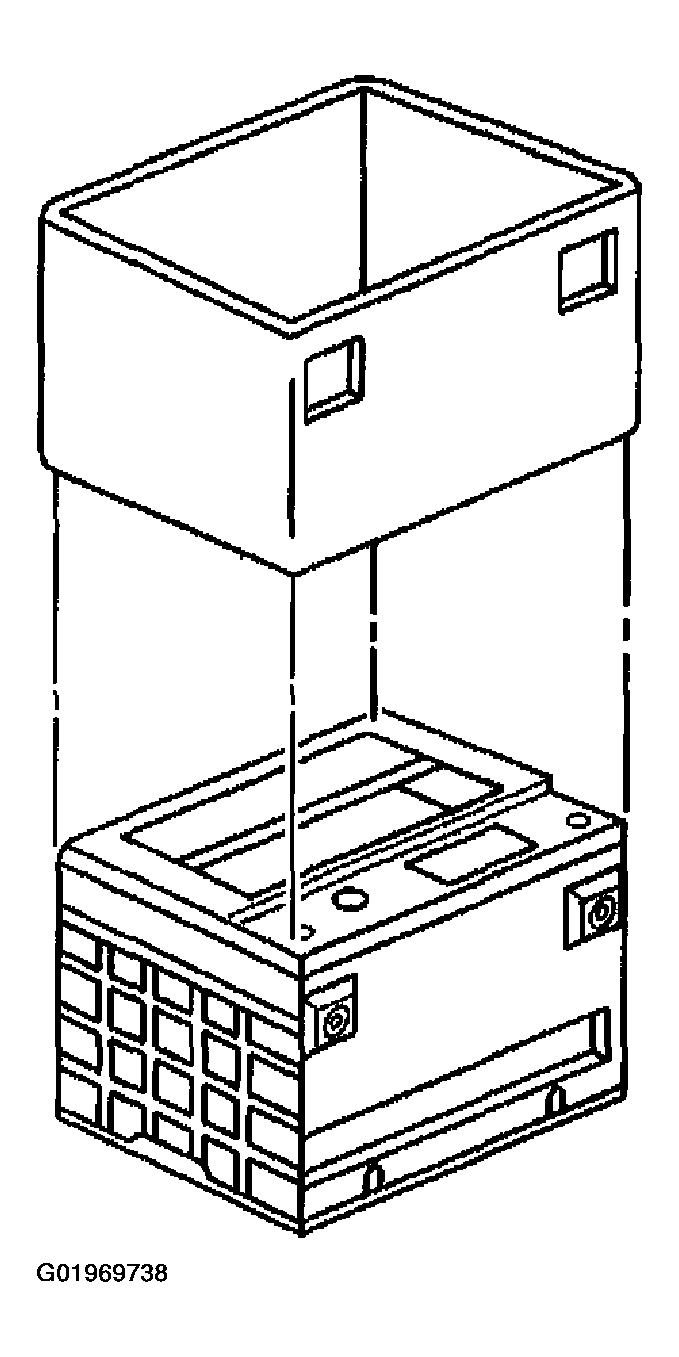

    Fig 3: Removing Insulator From Battery
    G01969738Courtesy of GENERAL MOTORS CORP.
