Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the backup lamp bulbs to the sockets, if removed.
Install the backup lamp bulb/sockets to the applique by rotating clockwise until fully seated.

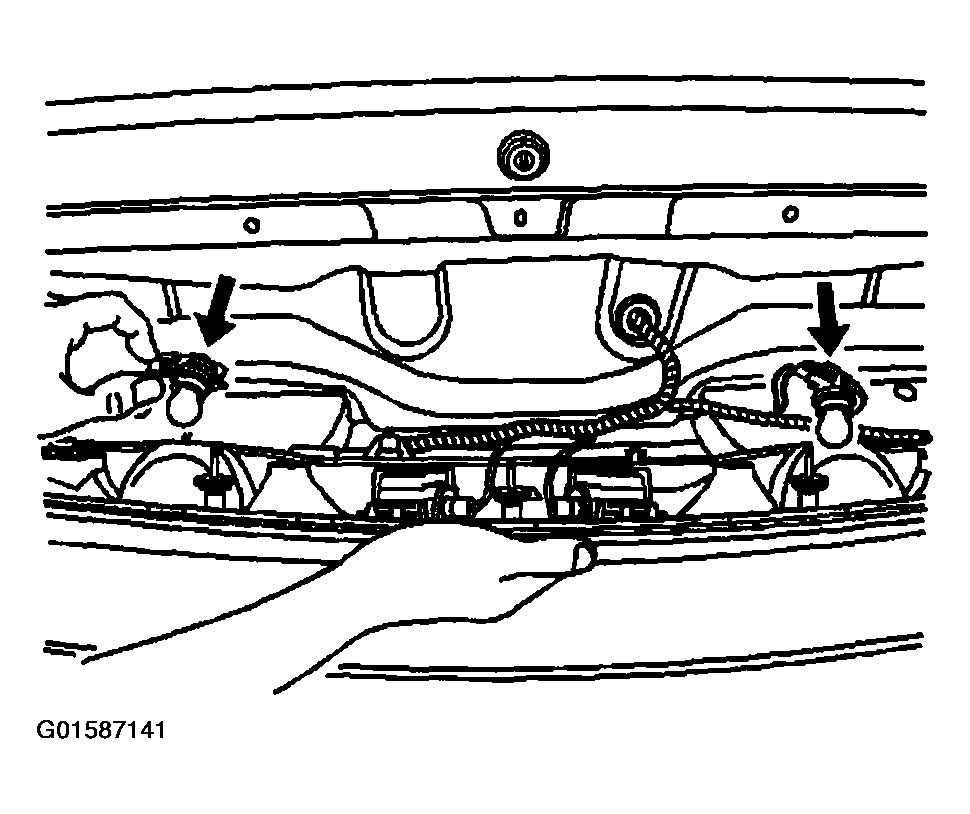

Fig 1: Installing Backup Lamp Bulb/Sockets
Courtesy of GENERAL MOTORS CORP.
Install the rear compartment lid applique. Refer to COMPARTMENT LID APPLIQUE REPLACEMENT - REAR in Body Rear End.
