Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the console compartment lamp switch to the top of the console compartment.
  2. Press the switch into place to secure.
  3. Connect the electrical connector (2) to the console compartment lamp switch.

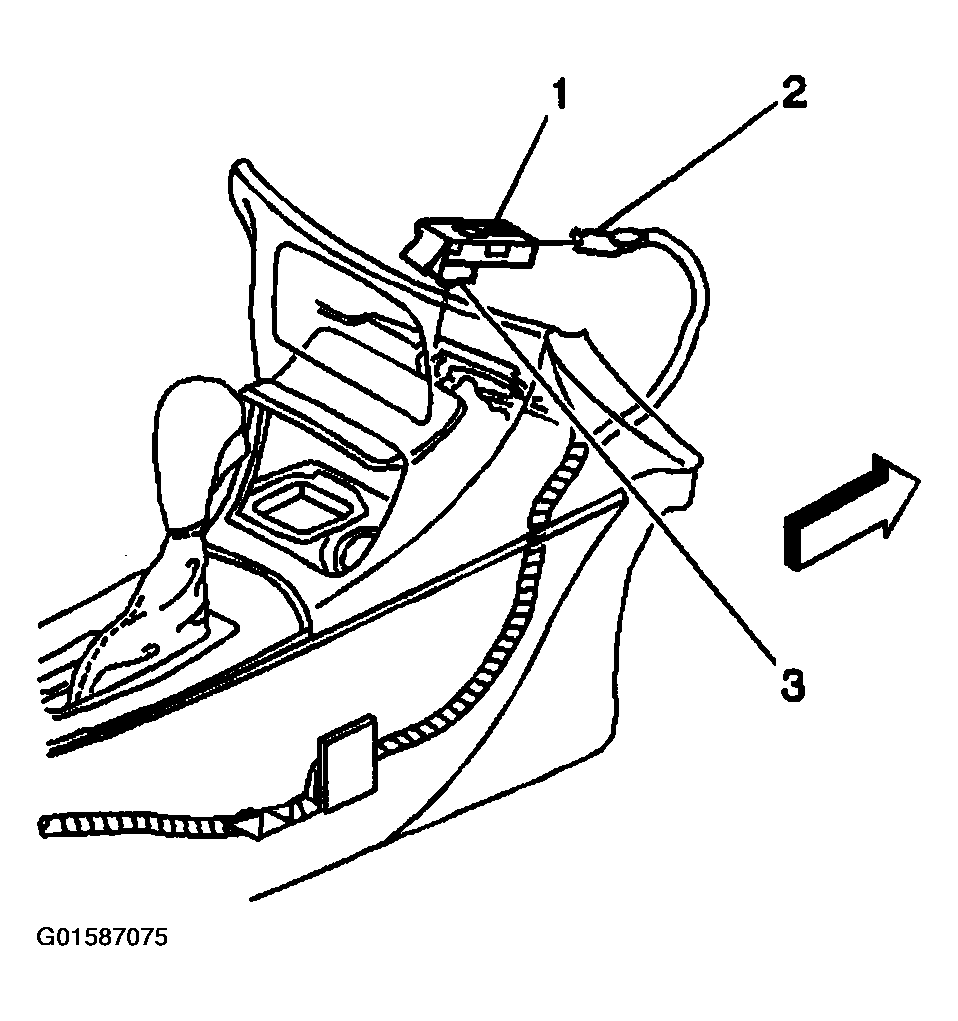

    Fig 1: Connecting Electrical Connector To Console Compartment Lamp Switch
    G01587075Courtesy of GENERAL MOTORS CORP.
  4. Position and install the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (D06) in Instrument Panel, Gages and Console.
