Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the fog lamp bulb/socket to the fog lamp rotating clockwise until fully seated.

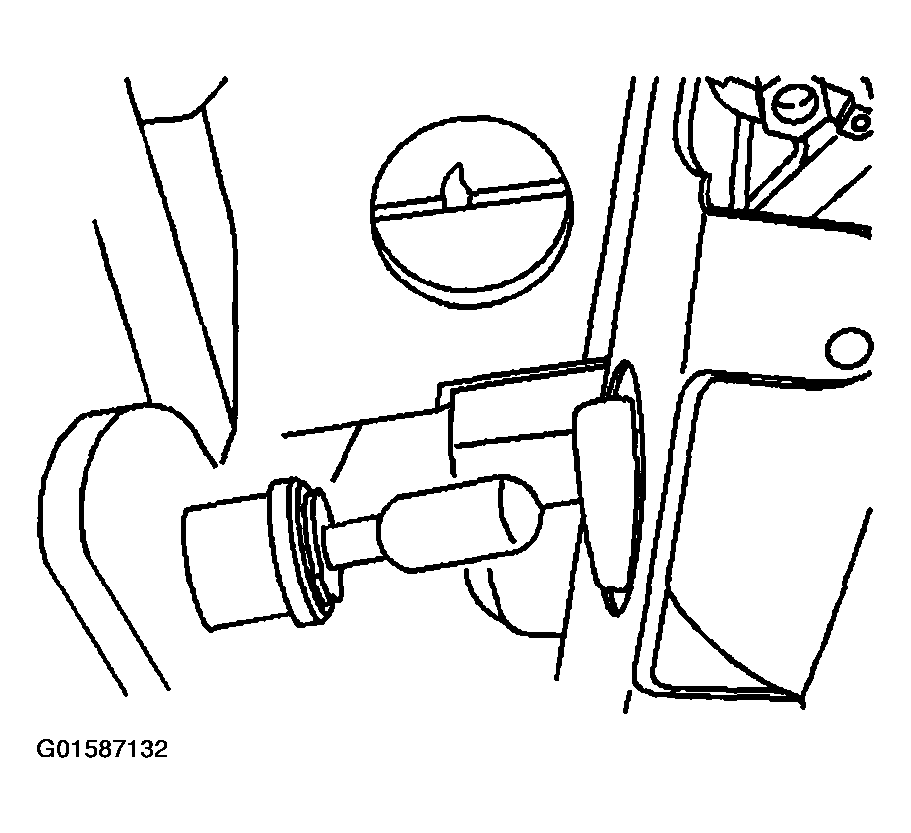

Fig 1: Installing Front Fog Lamp Bulb/Socket
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Halogen Bulb Caution in Cautions and Notices.
Connect the electrical connector to the front fog lamp bulb/socket.

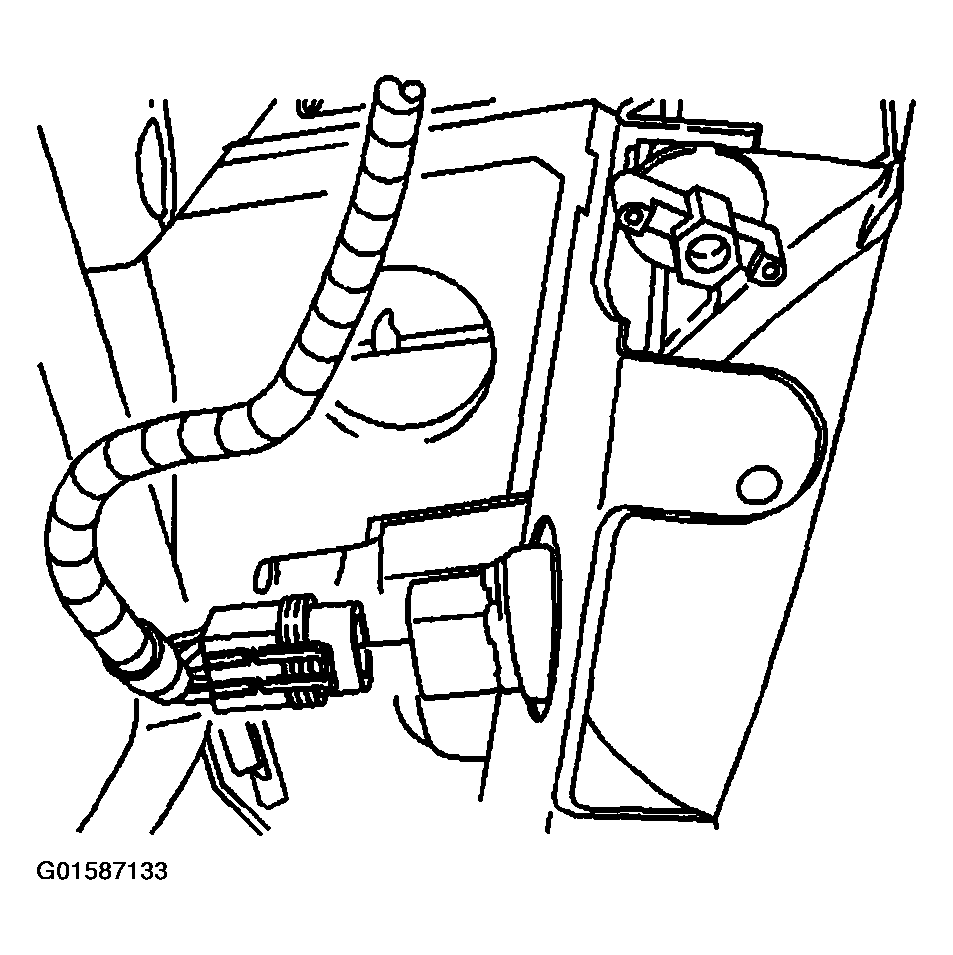

Fig 2: Connecting Electrical Connector To Front Fog Lamp Bulb/Socket
Courtesy of GENERAL MOTORS CORP.
Install the front bumper fascia deflector. Refer to FRONT BUMPER FASCIA DEFLECTOR REPLACEMENT - SIDE in Bumpers.
