Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front fog lamp assembly to the front bumper impact bar.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the front fog lamp nuts to the front bumper impact bar.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

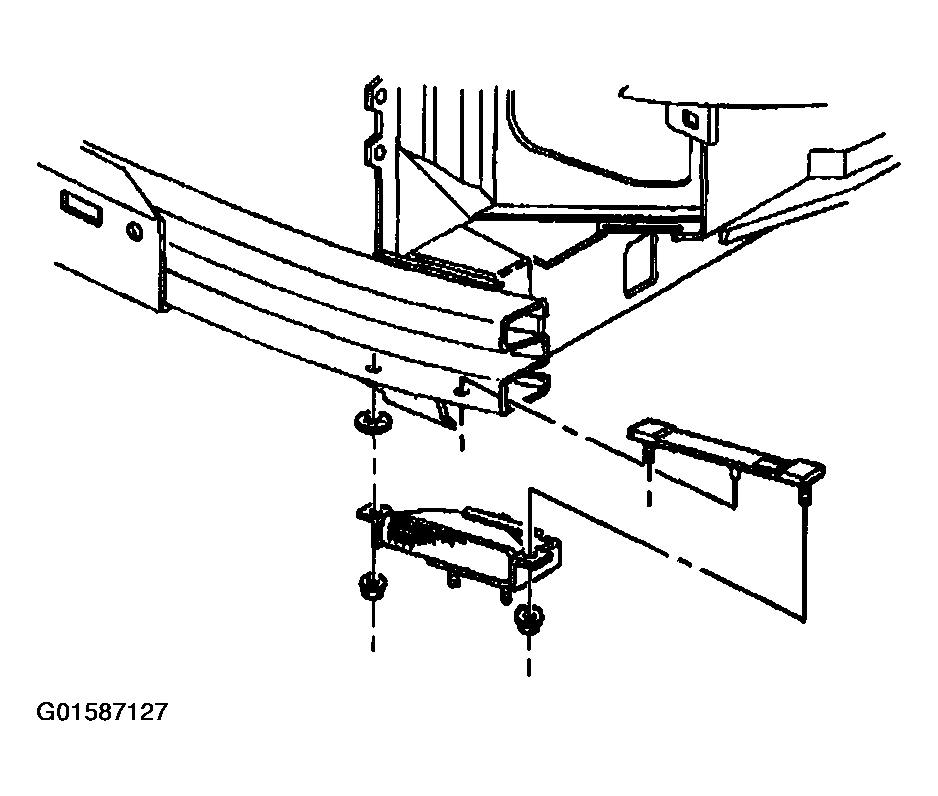

    Fig 1: Installing Front Fog Lamp Assembly & Retaining Nuts
    G01587127Courtesy of GENERAL MOTORS CORP.
  3. Install the fog lamp bulb/socket to the fog lamp by rotating clockwise.

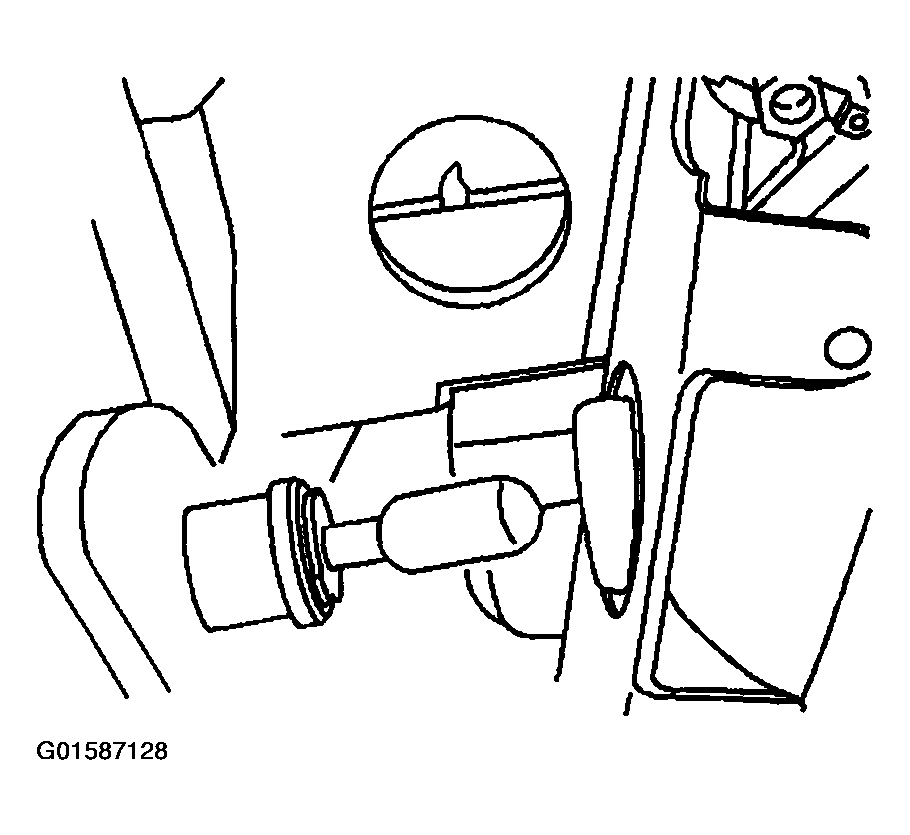

    Fig 2: Installing Fog Lamp Bulb/Socket To Fog Lamp
    G01587128Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the front fog lamp assembly.

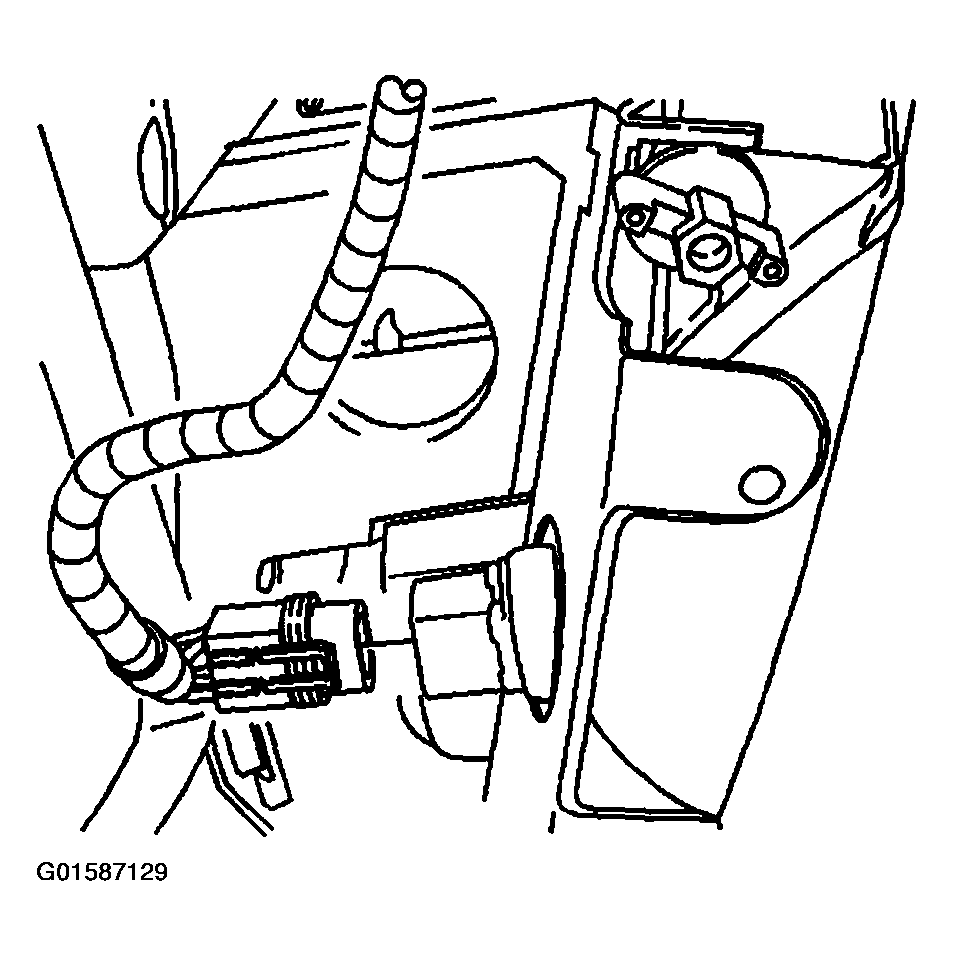

    Fig 3: Connecting Electrical Connector To Front Fog Lamp Assembly
    G01587129Courtesy of GENERAL MOTORS CORP.
  5. Install the front bumper fascia deflector. Refer to FRONT BUMPER FASCIA DEFLECTOR REPLACEMENT - SIDE in Bumpers.
  6. Check and adjust the front fog lamp aim as necessary. Refer to FOG LAMP AIMING PROCEDURE  .
