Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Remove the steering column filler. Refer to STEERING COLUMN FILLER REPLACEMENT in Instrument Panel, Gages and Console.
  3. Disconnect the electrical connector from the fog lamp switch.
  4. Press the retaining tabs and remove the fog lamp switch from the steering column filler.

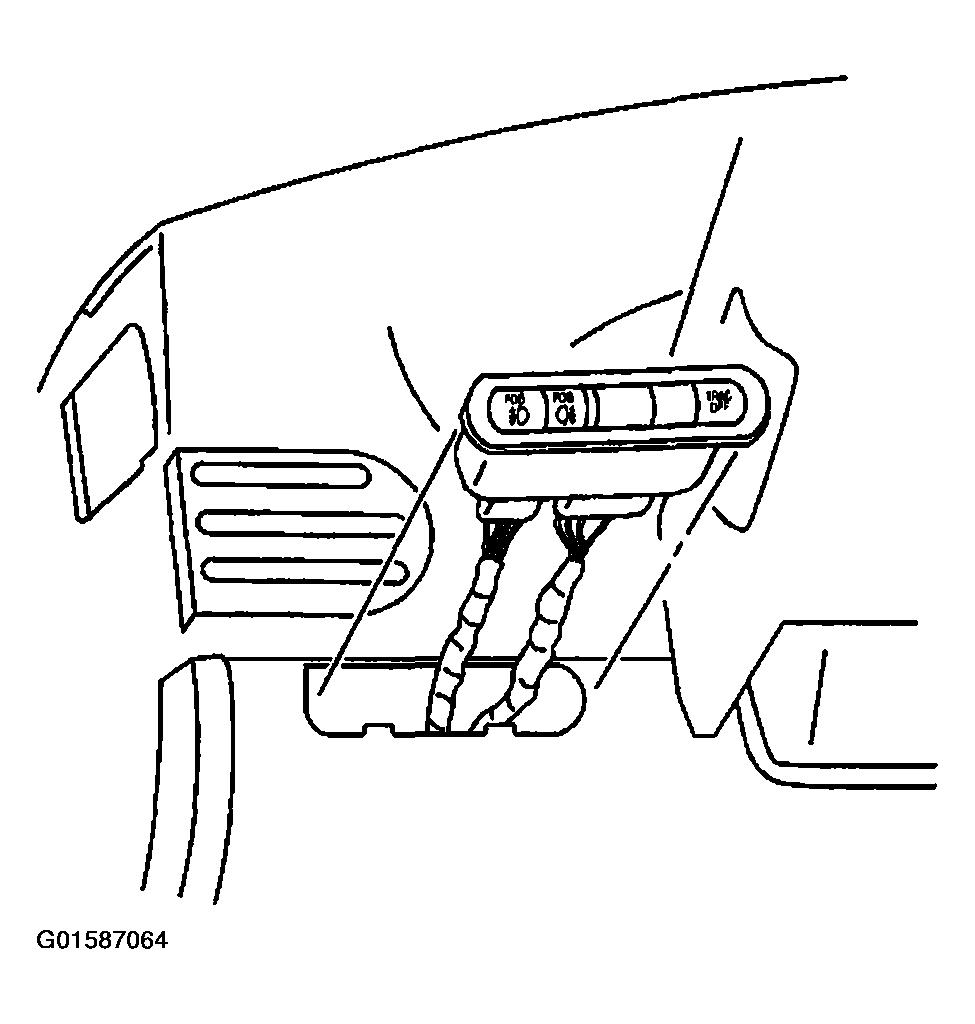

    Fig 1: Removing Fog Lamp Switch From Steering Column Filler
    G01587064Courtesy of GENERAL MOTORS CORP.
