Visual Aiming Procedure

Headlamp aim should be checked:

• When a new autolamp capsule is installed
• If service or repairs to the front end area have (or may have) disturbed the headlamps or their mounting
• The area will consist of a level surface large enough to allow for a vehicle and an additional 7.62 m (25 ft) measured from face of lamps to the front of the aiming screen.
• The screen will be 1.52 m (5 ft) high x 3.66 m (12 ft) wide with a matte white surface well shaded from extraneous light, and properly adjusted to the floor on which the vehicle stands. Provisions may be made for moving the screen so it can be aligned parallel with the vehicle.
• The screen shall be provided with a fixed vertical centerline, two laterally adjustable vertical tapes, and one vertically adjustable horizontal tape.
• If a regular commercial aiming screen is not available, the screen may consist of a vertical wall having a clear uninterrupted area approximately 1.83 m (6 ft) high and 3.66 m (12 ft) wide. The surface should be finished with a washable non-gloss white paint.
• After the aiming screen has been set up in its permanent location, it is necessary to paint a reference line on the floor directly under the lens of the lamps to indicate the proper location of the headlamps when they are being aimed:
  • Distance between headlamps (1)
  • Center line of screen (2)
  • Adjustable vertical pointer (3)
  • Adjustable horizontal tape (4)
  • Diagram of light screen (5)
  • Vertical center line ahead of right autolamp pointer position (6)
  • 7.62 m (25 ft) (7)
  • Car axis (8)
  • Adjustable vertical pointer
  • Horizontal center line of lamps
  • Vertical center line ahead of left autolamp
  Fig 1: Measuring Distance From Face Of Lamps To Front Of Aiming Screen

  Courtesy of GENERAL MOTORS CORP.

Prior to aiming the headlamps, the following Steps must be taken:

1. Remove any snow, ice or mud from the vehicle.
2. The vehicle must have a full tank of gas.
3. Stop all other work on the vehicle.
4. If any service has been performed on the vehicle, make sure that all of the components are back in their original place.
5. The vehicle must be on a level surface.
6. The vehicle left tires must be aligned with the reference line extending from the screen with the headlamps aligned with the reference line.

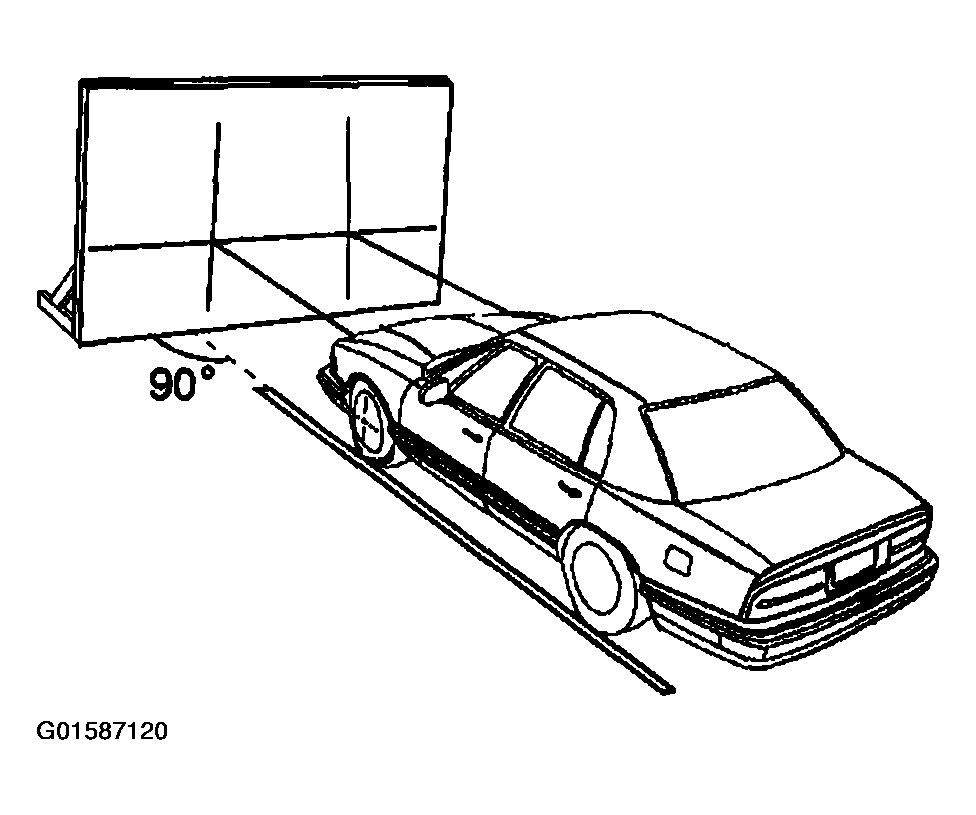

   Fig 2: Aligning Left Tires Of Vehicle With Reference Line

   Courtesy of GENERAL MOTORS CORP.
7. Do not load any cargo in the vehicle.
8. The vehicle must contain one person or 72.56 kg (160 lb) on the driver's seat.
9. Inflate the tires to the proper pressure.
10. Simulate the vehicle loads if the intended use of the vehicle is for hauling heavy loads or towing a trailer.
11. Rock the vehicle in order to stabilize the suspension.
12. Turn on the headlamps to low beam and observe the left and the top edges of the high intensity zone on the screen. The edges of the high intensity zone should fall within the specifications.
