Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector to the autolamp switch.
Align the autolamp switch tabs to the I/P and press the switch into position.

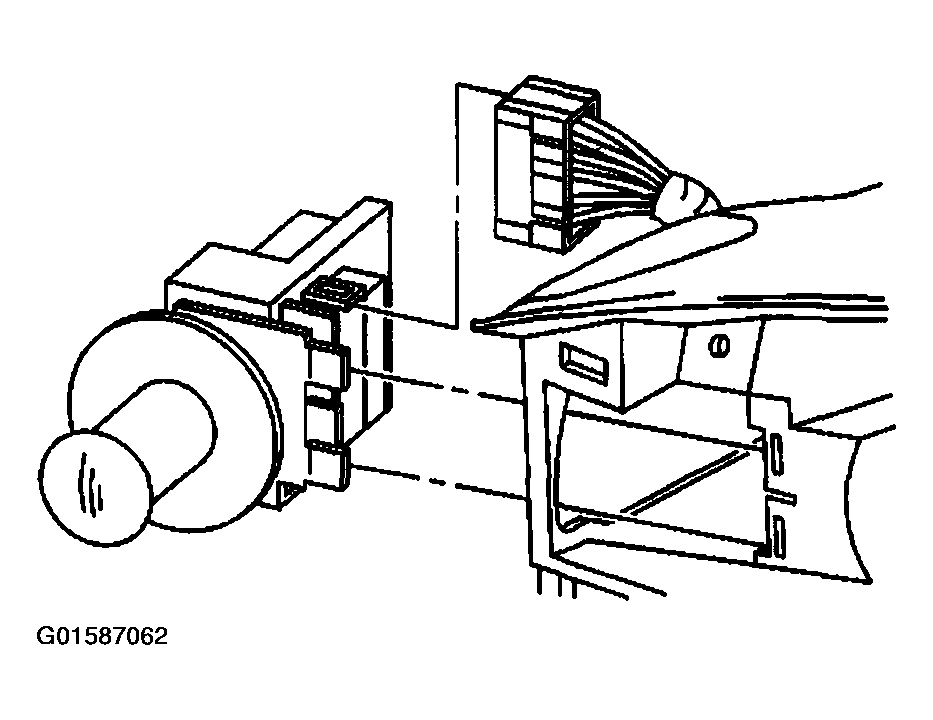

Fig 1: Connecting Electrical Connector To Headlamp Switch
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the autolamp switch screws.
Tighten

Tighten the screws to 1.8 N.m (16 lb in).

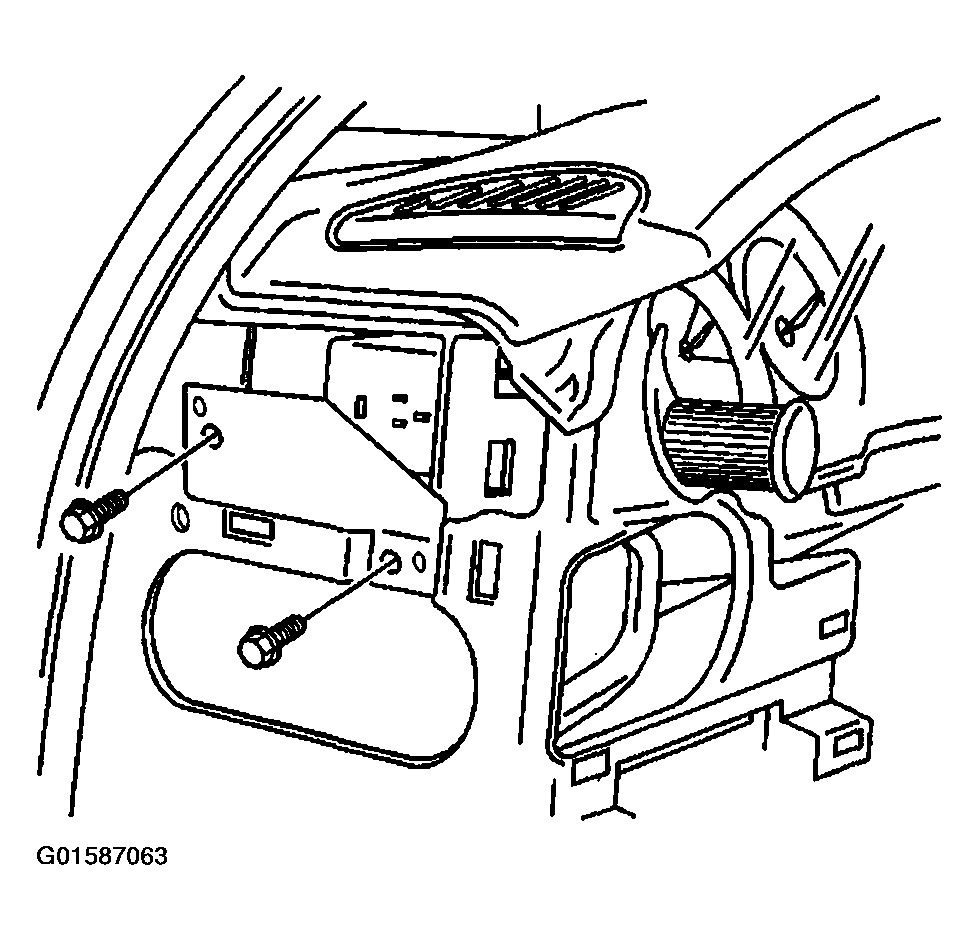

Fig 2: Installing Headlamp Switch Screws
Courtesy of GENERAL MOTORS CORP.
Align and insert the forward edge of the left I/P access opening cover behind the hinge pillar.
Align the access opening cover retainers to the slots on the I/P trim pad and press firmly to secure.
