Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the rearward edge of the access opening cover outboard on the left side of the instrument panel (I/P) to release the retainers. Use a plastic flat-bladed tool as an aid if necessary.
  2. Release the forward edge of the access opening cover from behind the hinge pillar and remove the cover.
  3. Remove the autolamp switch screws.

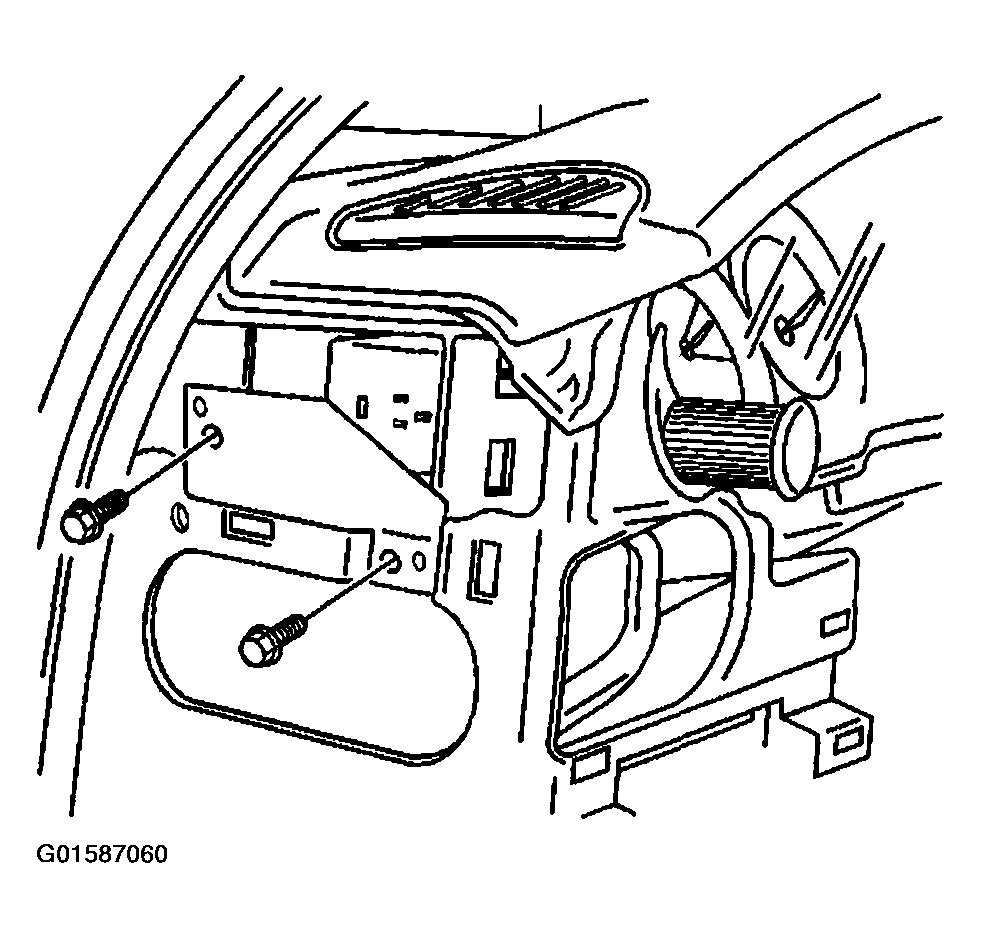

    Fig 1: Removing Headlamp Switch Screws
    G01587060Courtesy of GENERAL MOTORS CORP.
  4. Carefully pull the autolamp switch outboard away from the I/P to access the electrical connector.
  5. Disconnect the electrical connector from the autolamp switch.

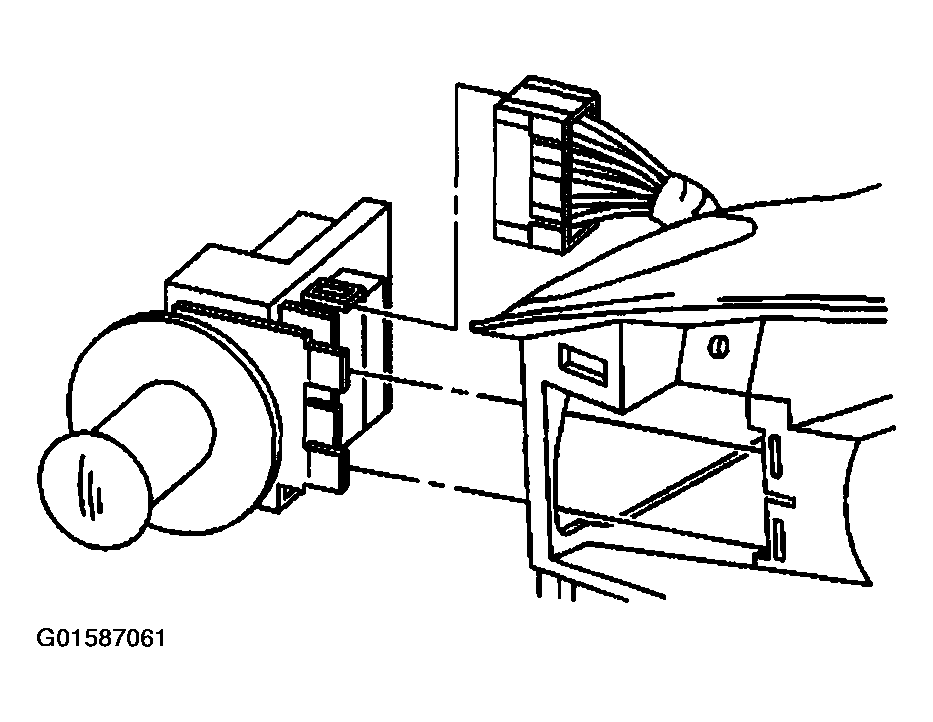

    Fig 2: Disconnecting Electrical Connector From Headlamp Switch
    G01587061Courtesy of GENERAL MOTORS CORP.
