Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side of the instrument panel (I/P) insulator.
  2. Disconnect the electrical connector from the stop lamp switch.
  3. Remove the stop lamp switch (2) from the brake pedal bracket.

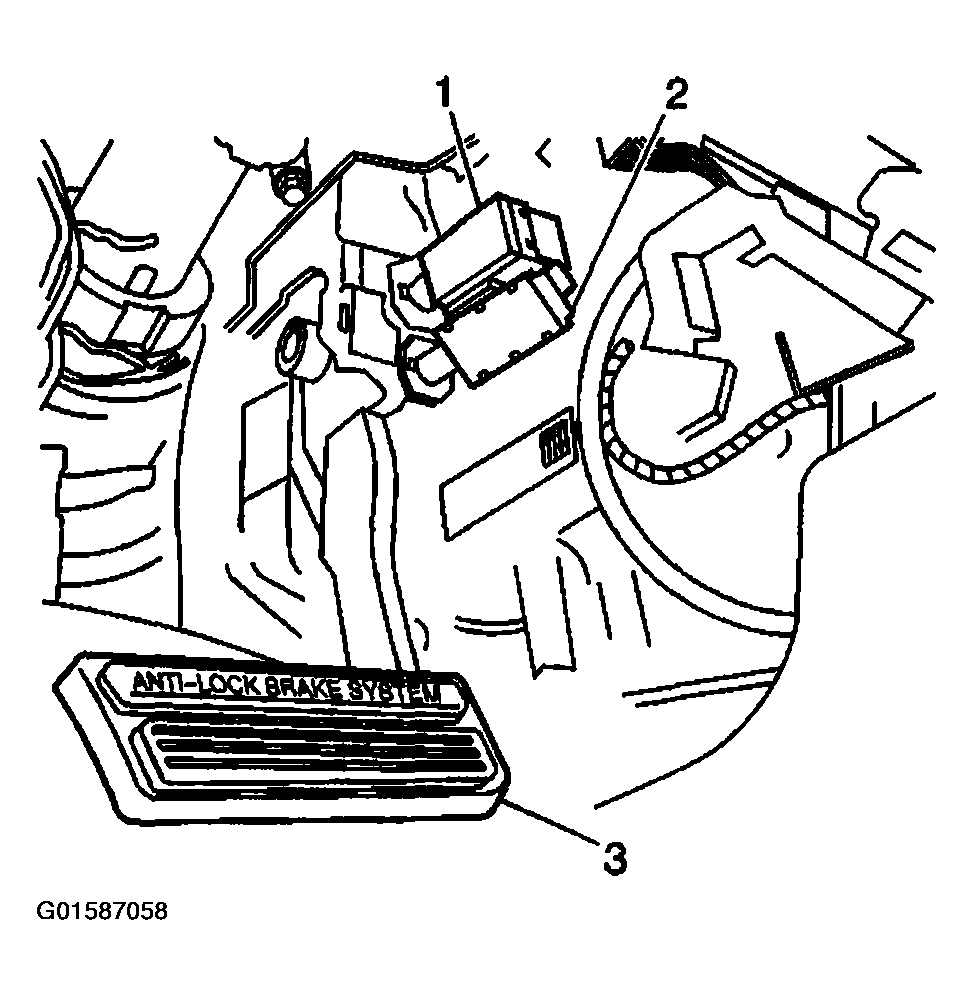

    Fig 1: View Of Stop Lamp Switch
    G01587058Courtesy of GENERAL MOTORS CORP.
