Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE FRONT in Instrument Panel, Gages and Console.
  2. Grasp the floor shift control trim bezel and lift to release the retaining tabs.
  3. Rotate the floor shift control indicator lamp socket counterclockwise to release from the trim bezel.
  4. Remove the bulb from the socket.

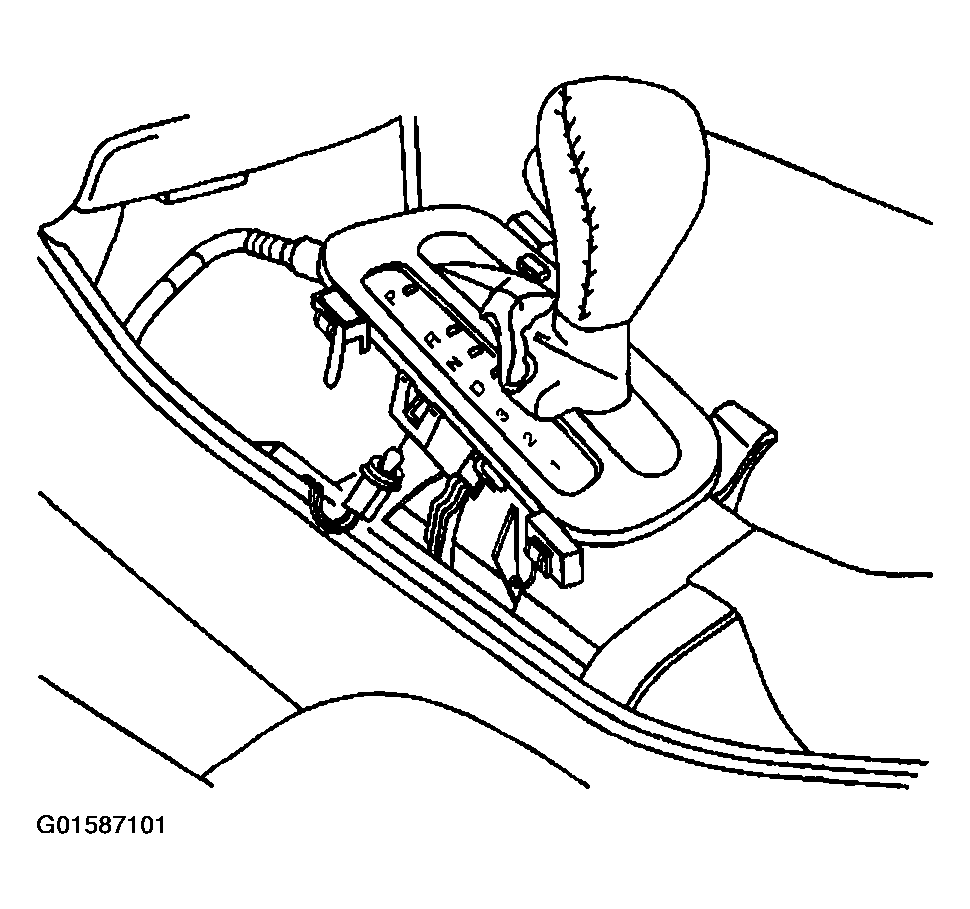

    Fig 1: Removing Floor Shift Control Indicator Lamp Socket
    G01587101Courtesy of GENERAL MOTORS CORP.
