Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb into the socket.

Fig 1: View Of Vanity Mirror Lamp Bulb
Courtesy of GENERAL MOTORS CORP.
Position the vanity mirror lamp lens to the sunshade.
Align the lens tabs into the housing slots and insert the upper edge of the lens first.
Insert a small flat-bladed tool at the lower edge of the vanity mirror lamp lens then press up to fully install the lens.

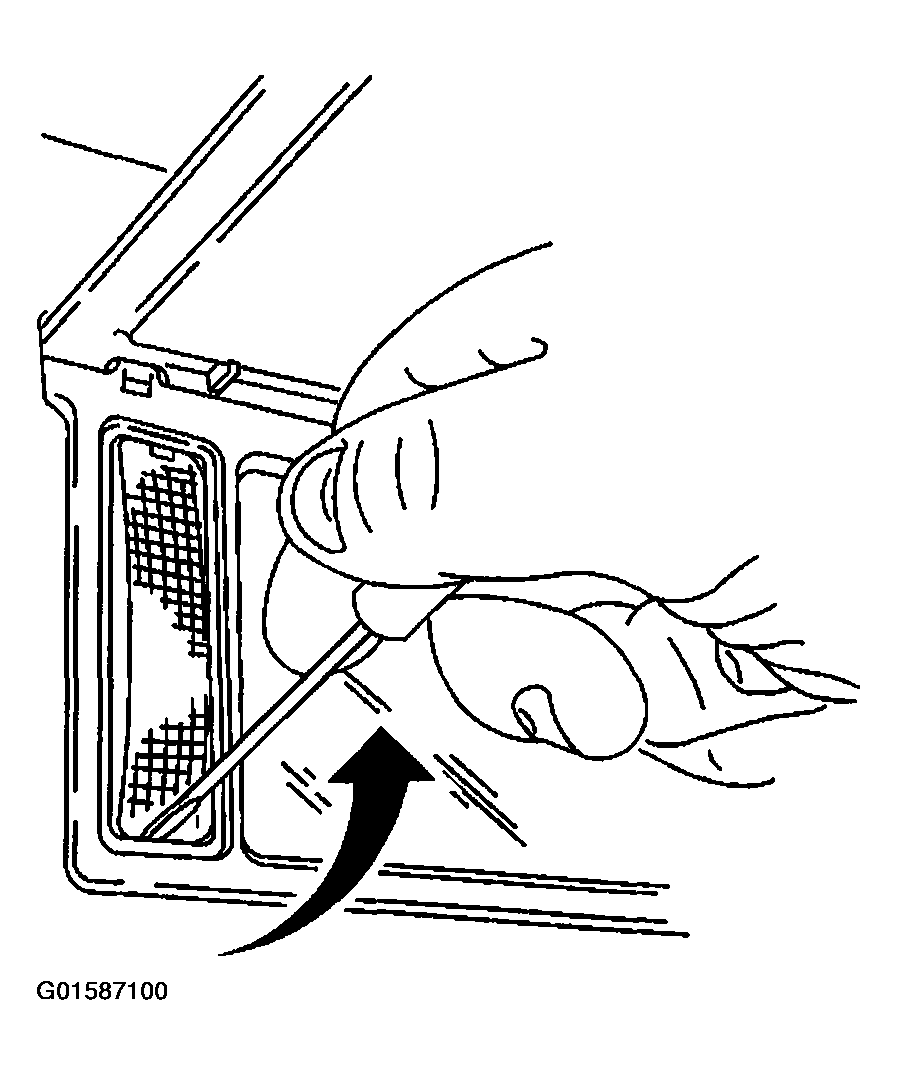

Fig 2: Installing Vanity Mirror Lamp Lens From Sunshade Using Flat Bladed Tool
Courtesy of GENERAL MOTORS CORP.
Close the lamp cover door and raise the sunshade.
