Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

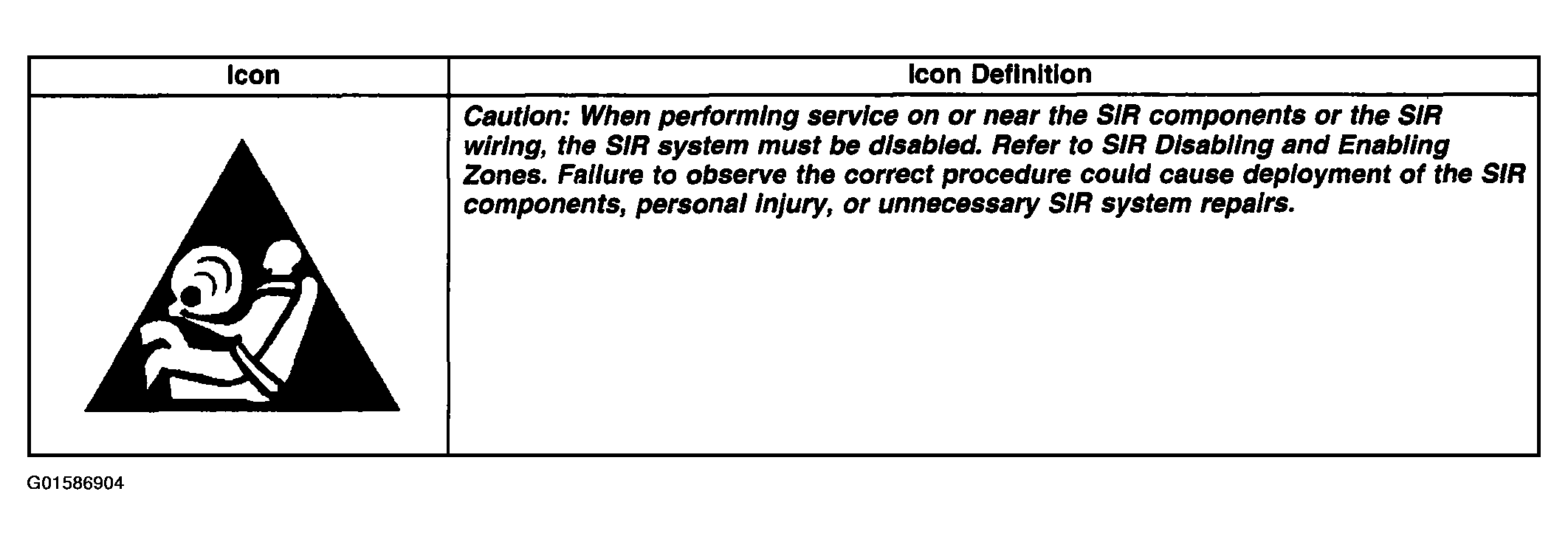

Fig 1: Lighting Systems Schematic Icons

Courtesy of GENERAL MOTORS CORP.

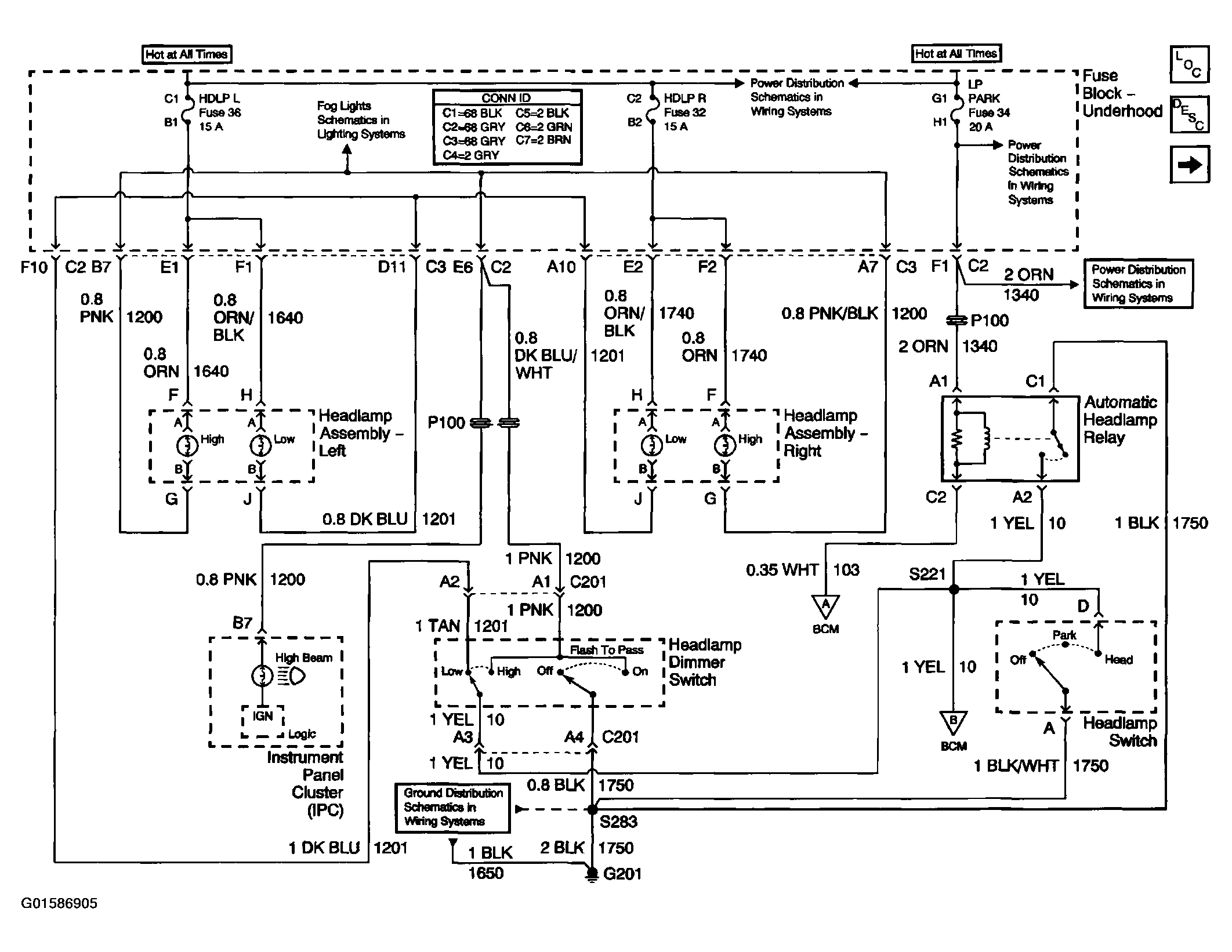

Fig 2: Headlights/Daytime Running Lights Schematics (Headlamps)

Courtesy of GENERAL MOTORS CORP.

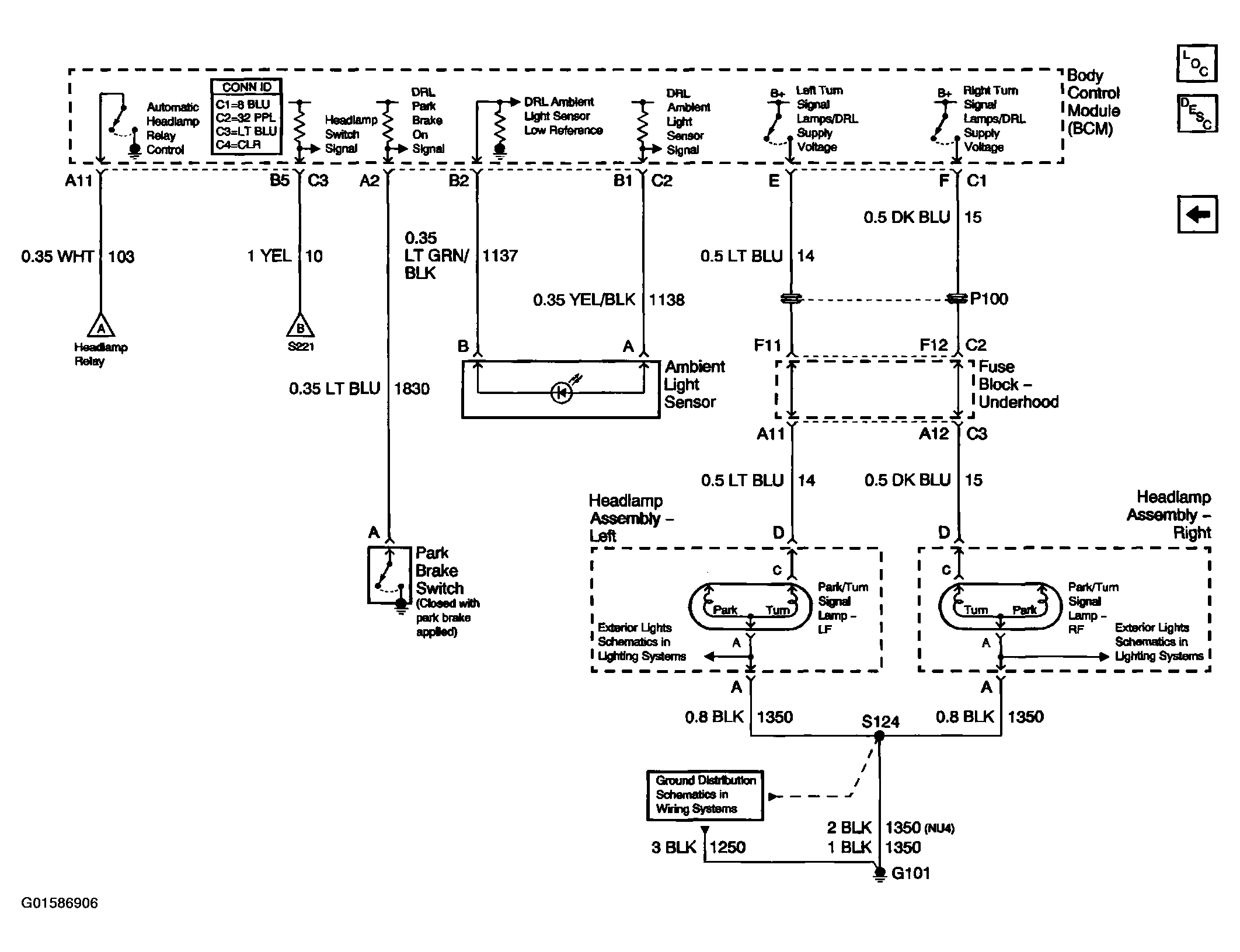

Fig 3: Headlights/Daytime Running Lights Schematics (Daytime Running Lamps)

Courtesy of GENERAL MOTORS CORP.

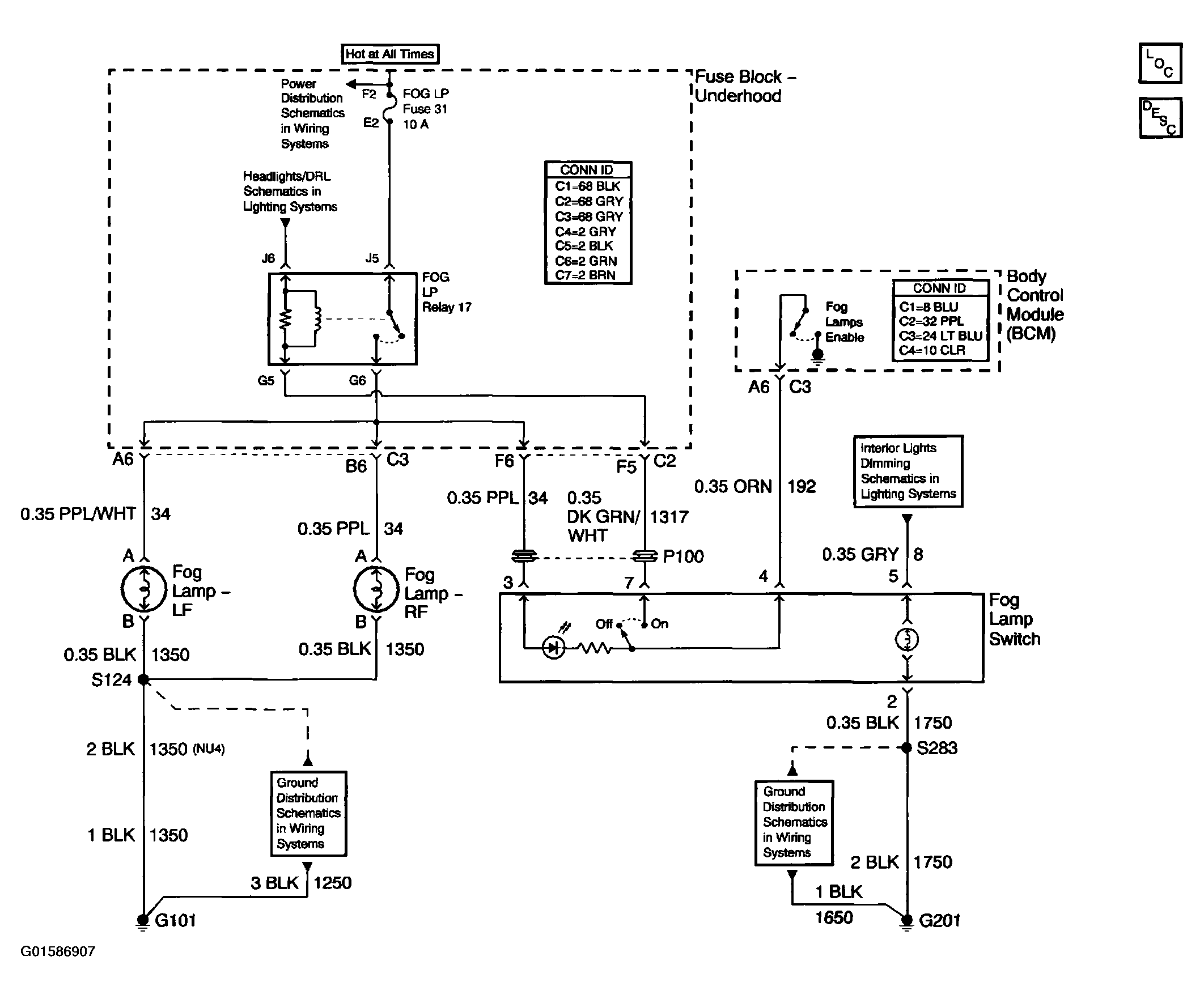

Fig 4: Fog Lights Schematics

Courtesy of GENERAL MOTORS CORP.

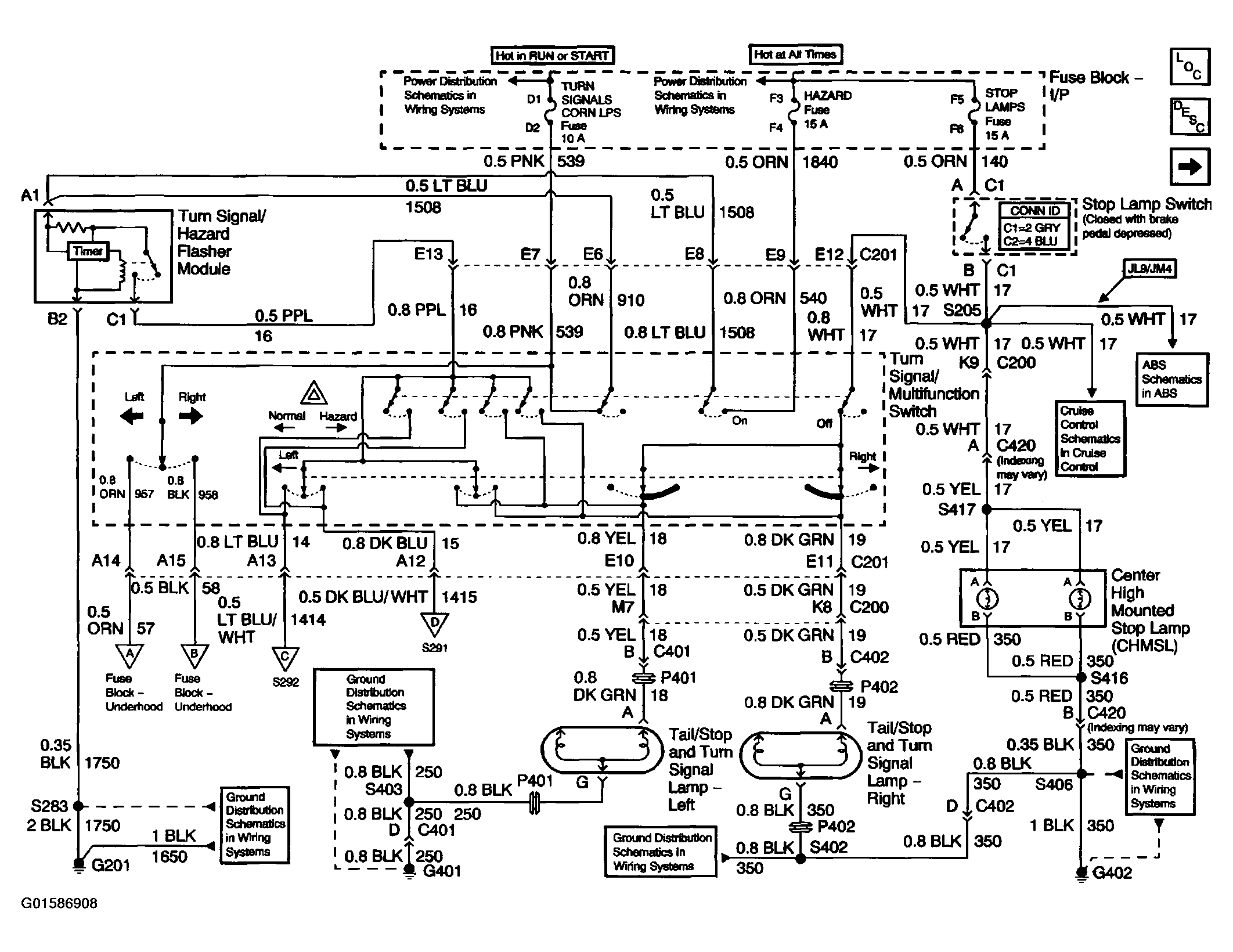

Fig 5: Exterior Lights Schematics (Stop Lamps And Rear Turn Lamps)

Courtesy of GENERAL MOTORS CORP.

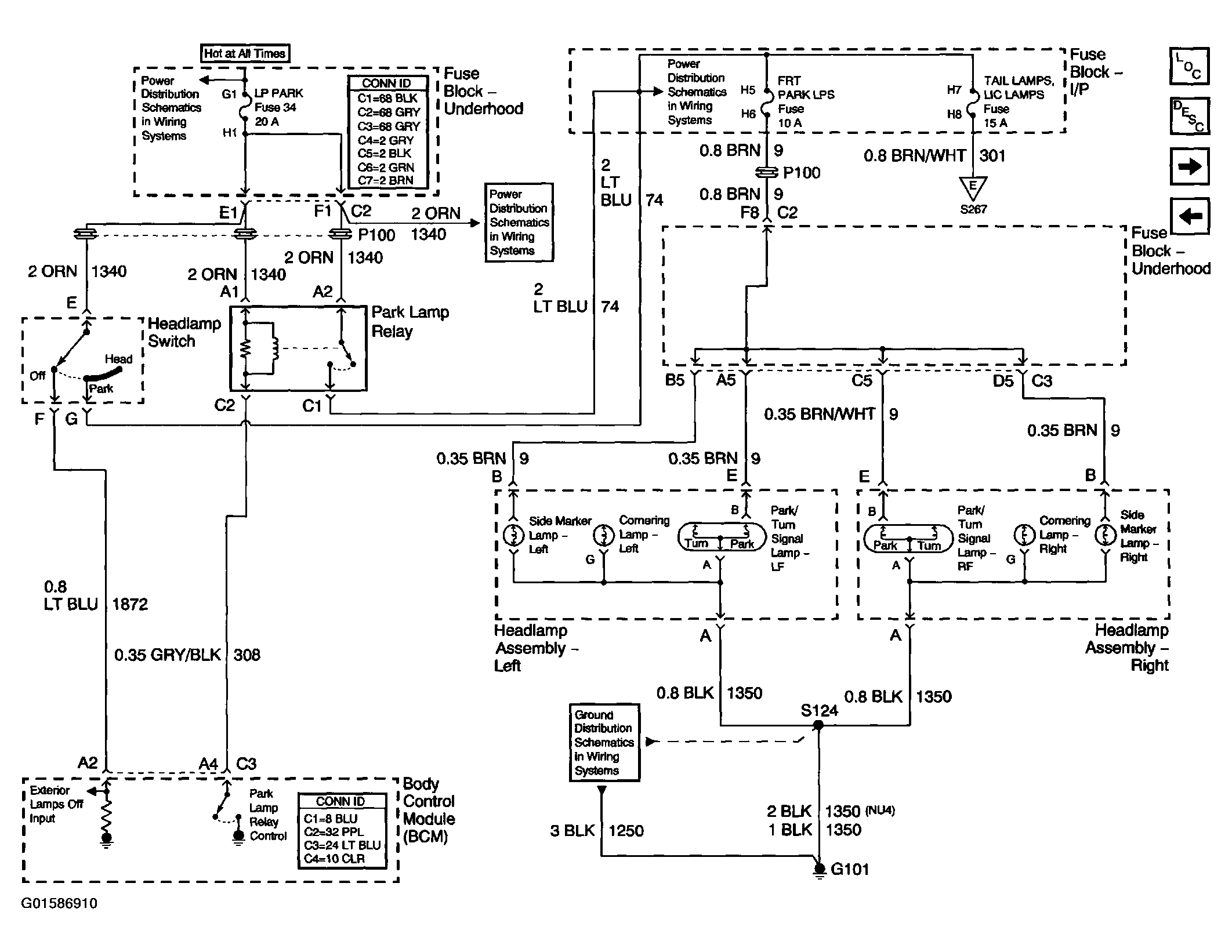

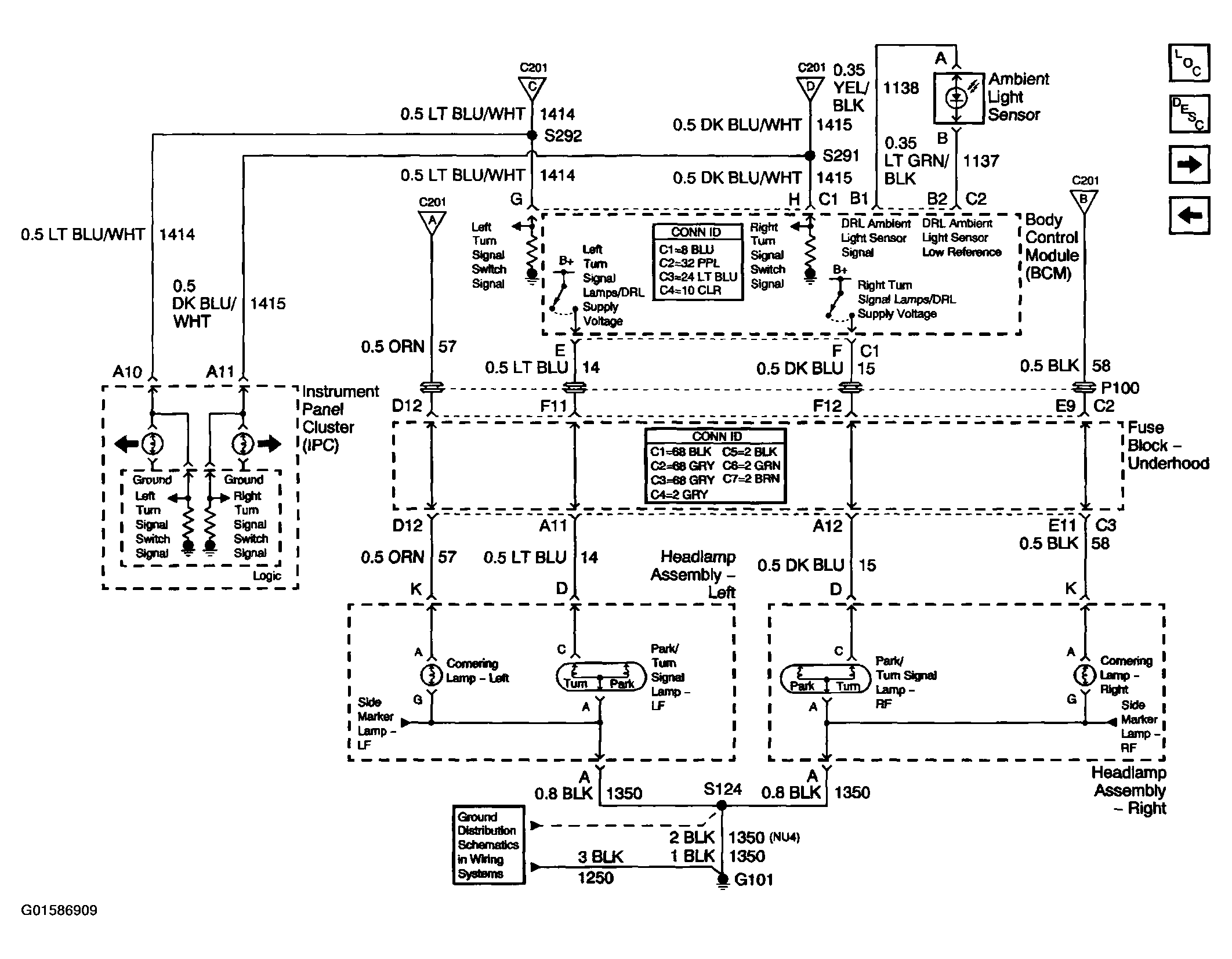

Fig 6: Exterior Lights Schematics (Front Turn Lamps, Cornering Lamps, And DRL)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Exterior Lights Schematics (Front Park Lamps)

Courtesy of GENERAL MOTORS CORP.

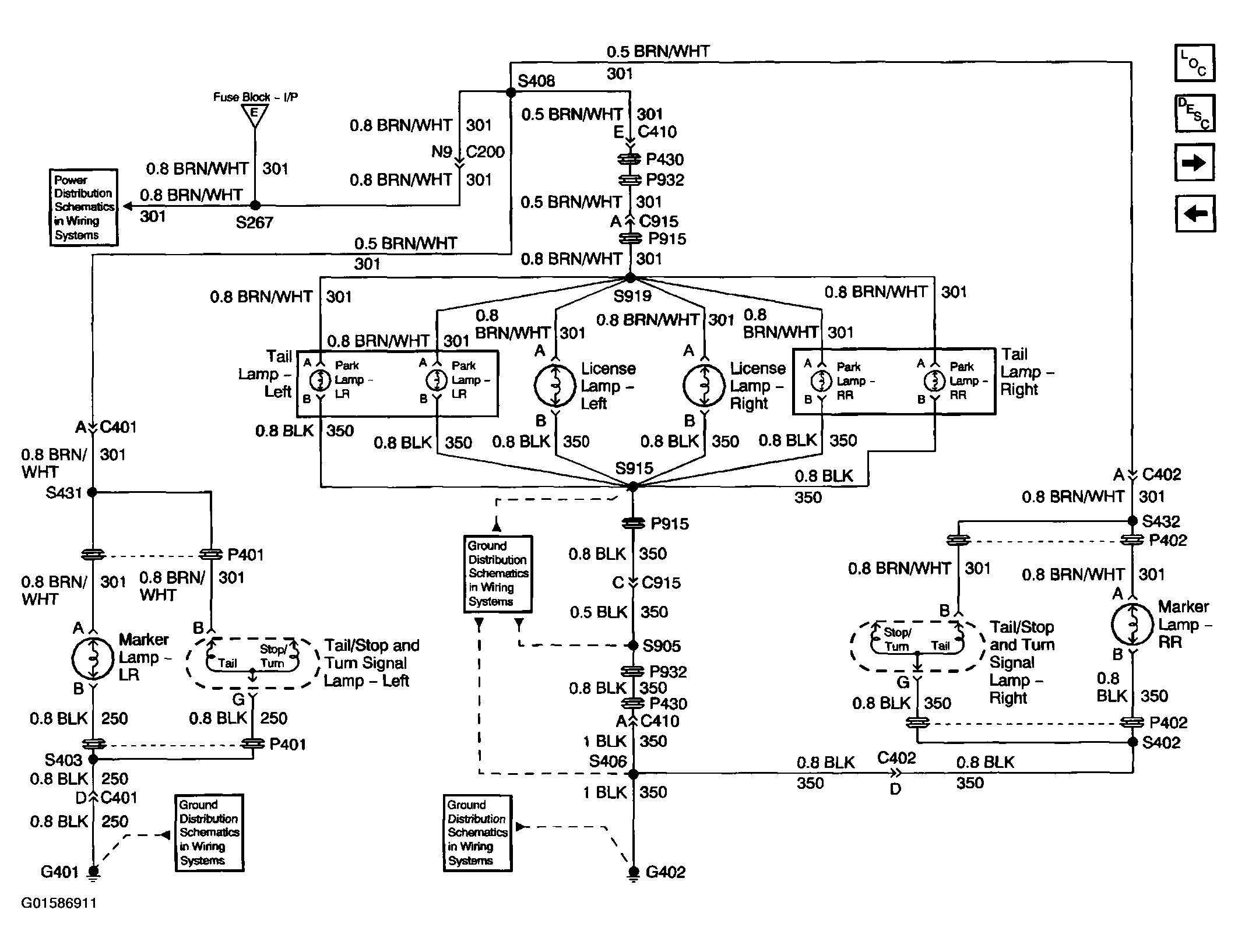

Fig 8: Exterior Lights Schematics (Rear Park Lamps And License Lamps)

Courtesy of GENERAL MOTORS CORP.

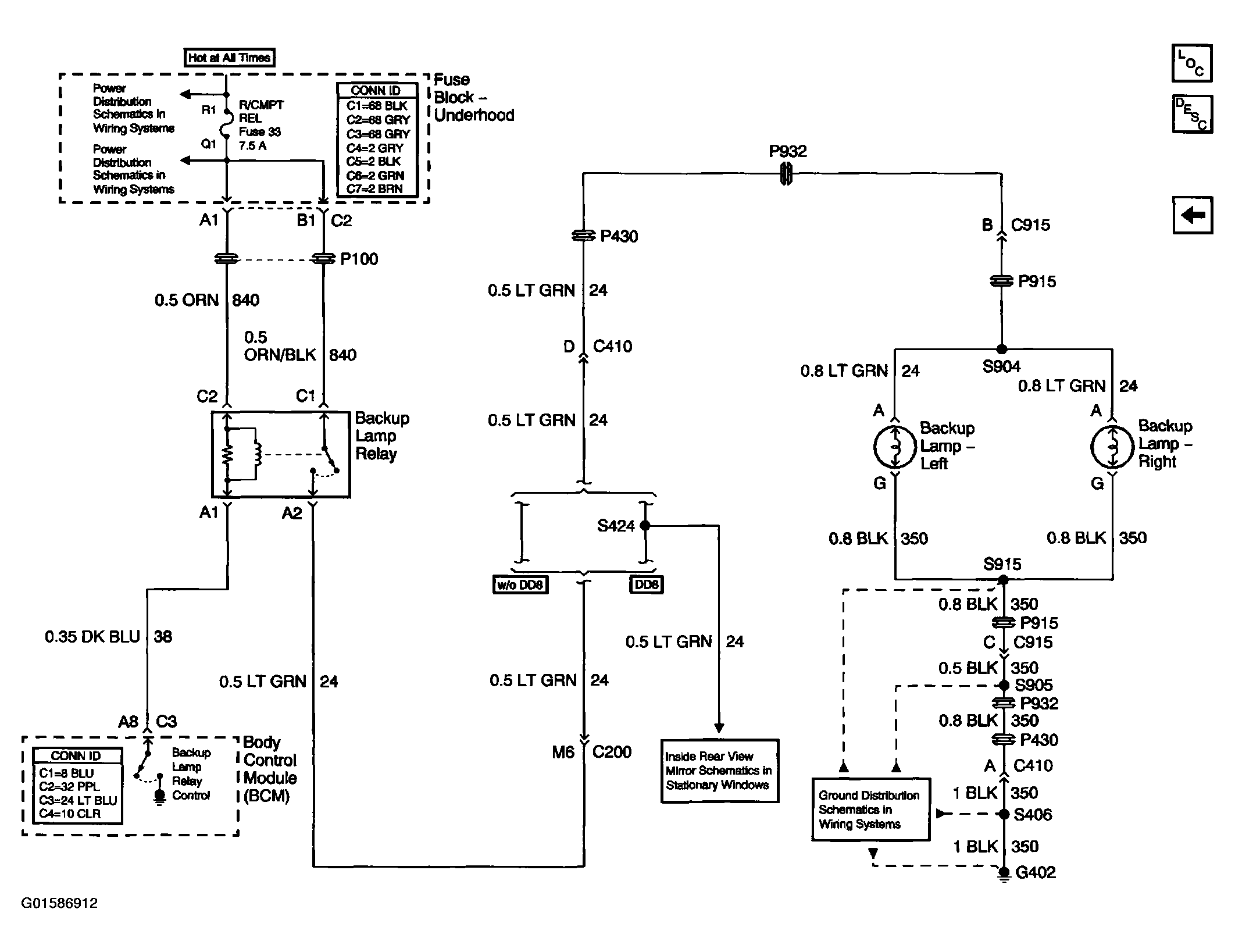

Fig 9: Exterior Lights Schematics (Back Up Lamps)

Courtesy of GENERAL MOTORS CORP.

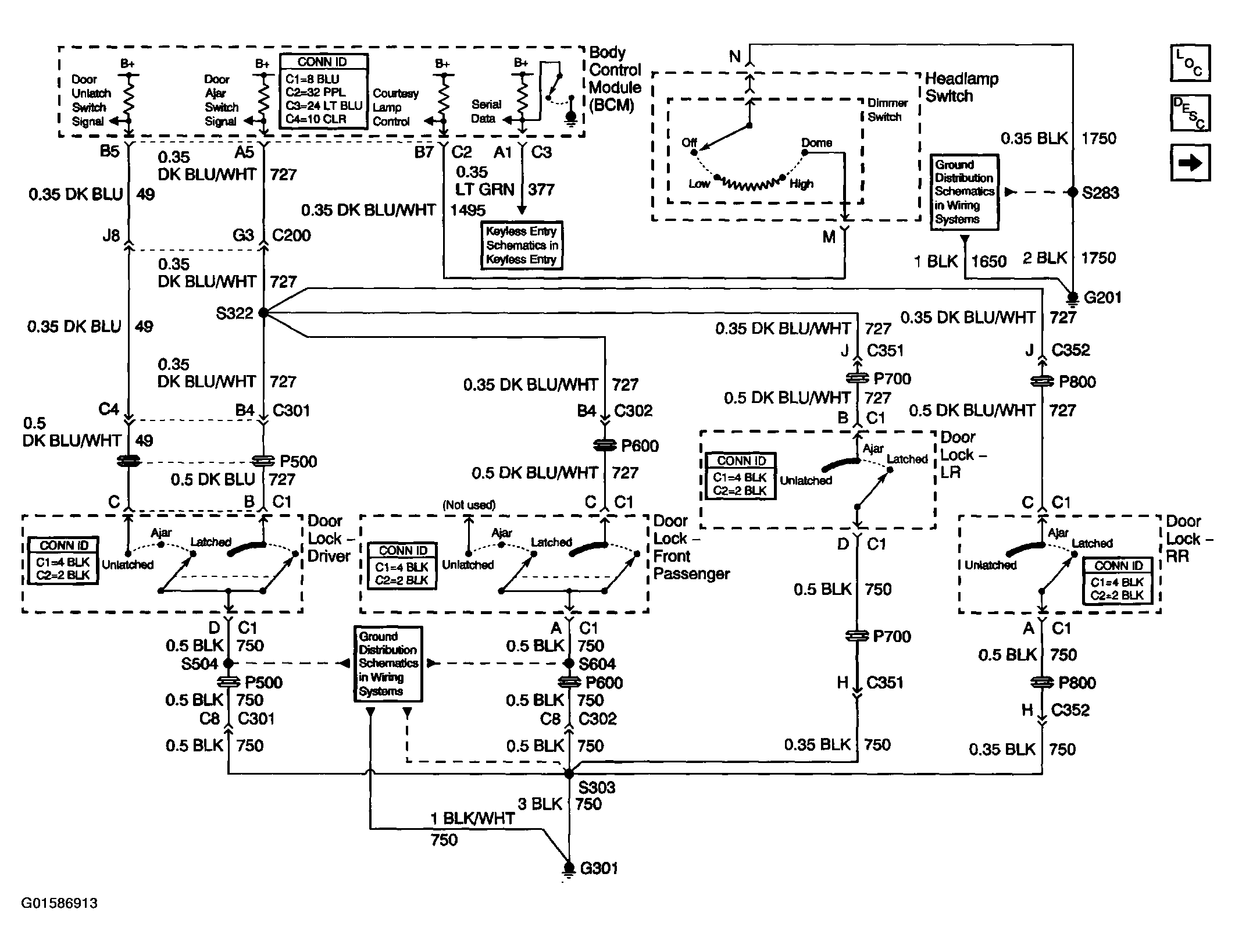

Fig 10: Interior Lights Schematics (Lamp Controls)

Courtesy of GENERAL MOTORS CORP.

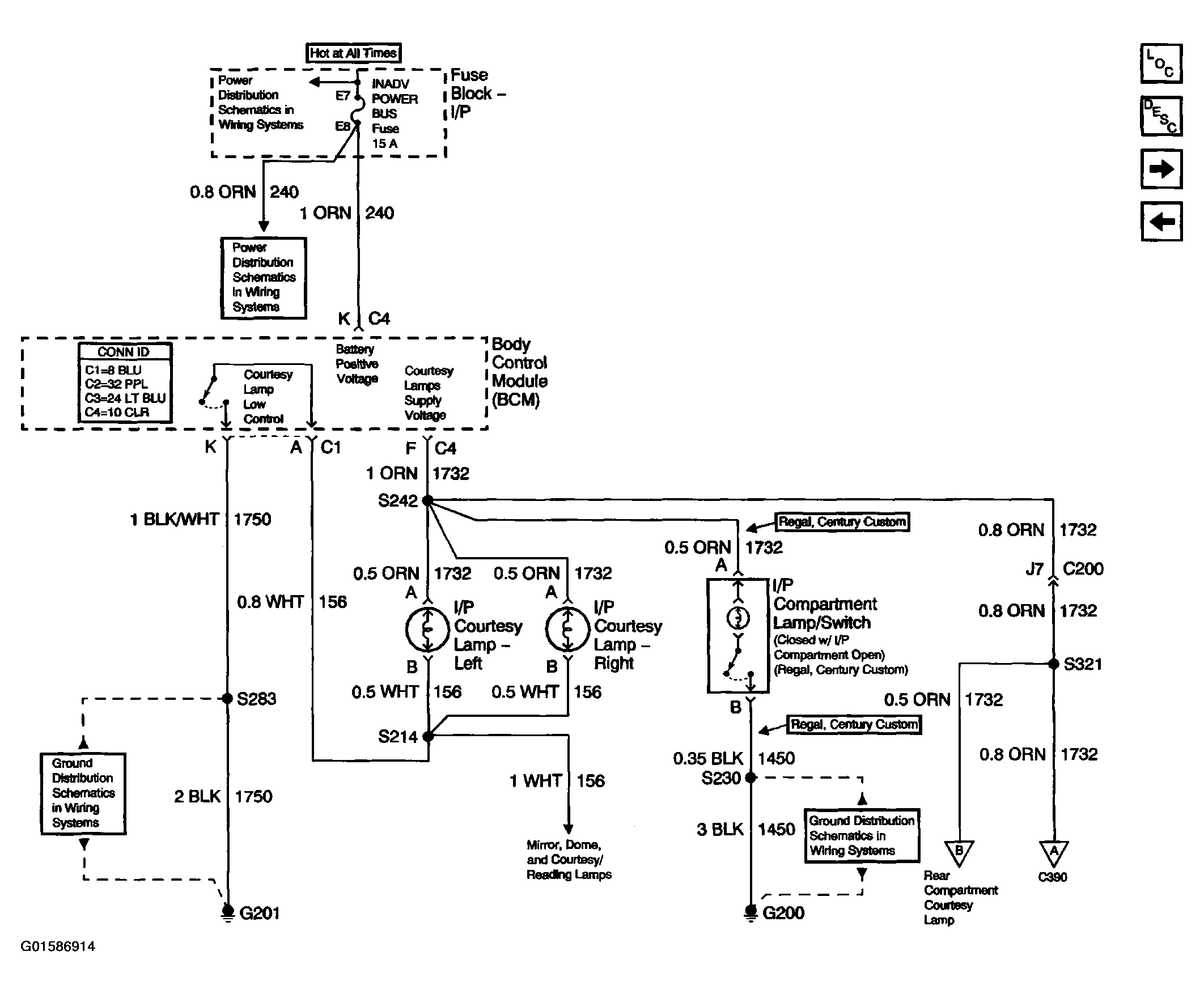

Fig 11: Interior Lights Schematics (I/P Courtesy Lamps)

Courtesy of GENERAL MOTORS CORP.

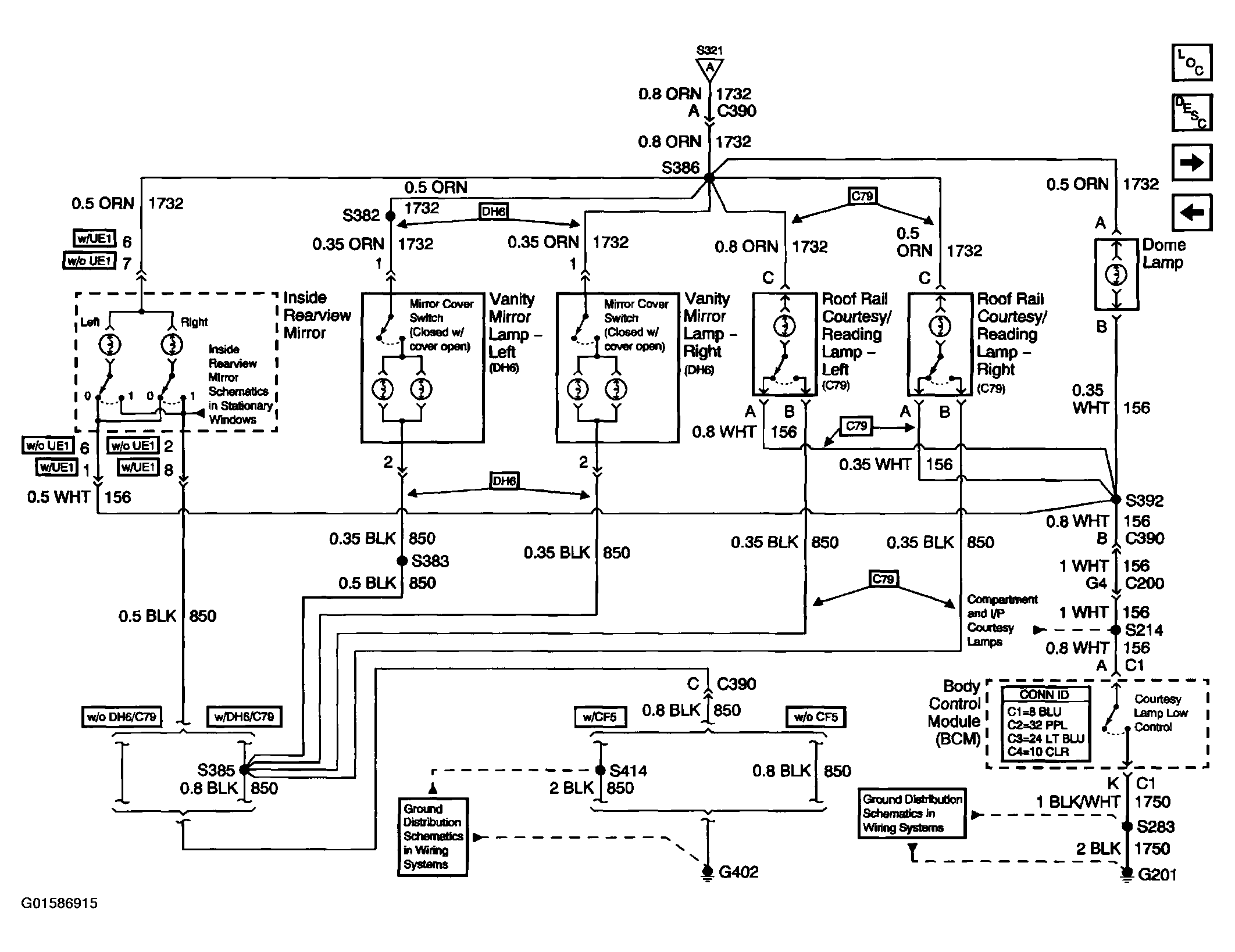

Fig 12: Interior Lights Schematics (Mirror, Dome And Courtesy/Reading Lamps)

Courtesy of GENERAL MOTORS CORP.

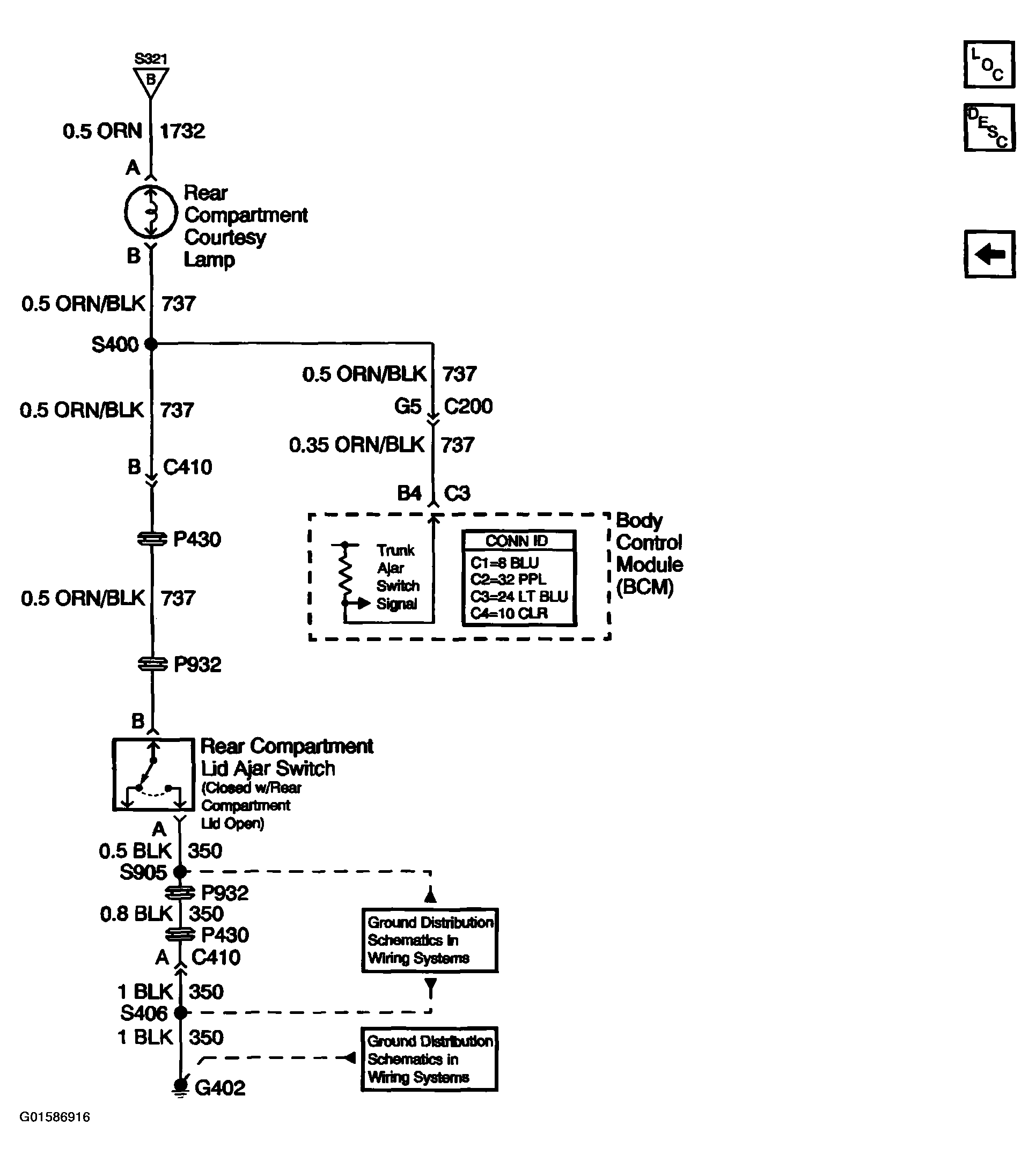

Fig 13: Interior Lights Schematics (Rear Compartment Courtesy Lamp)

Courtesy of GENERAL MOTORS CORP.

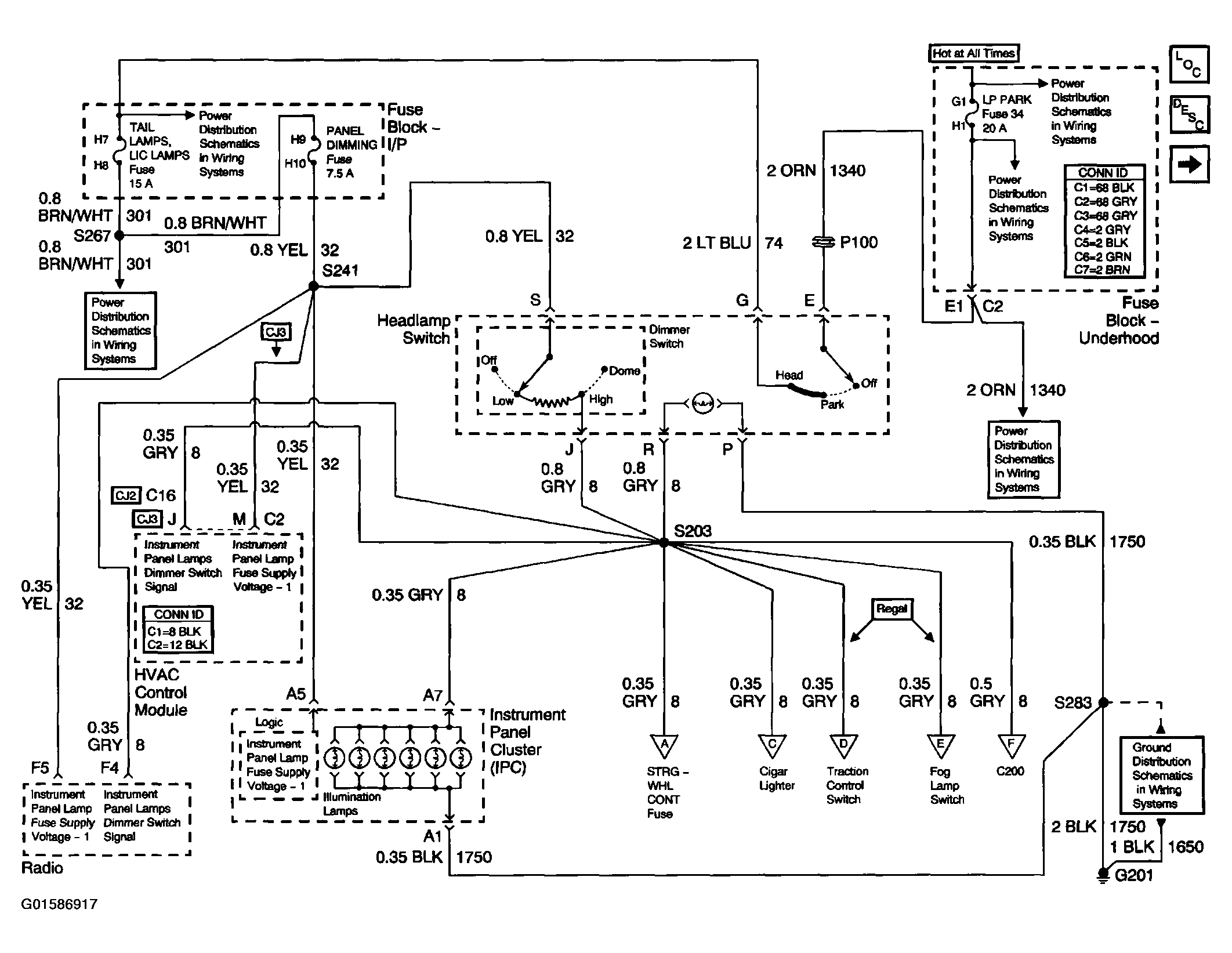

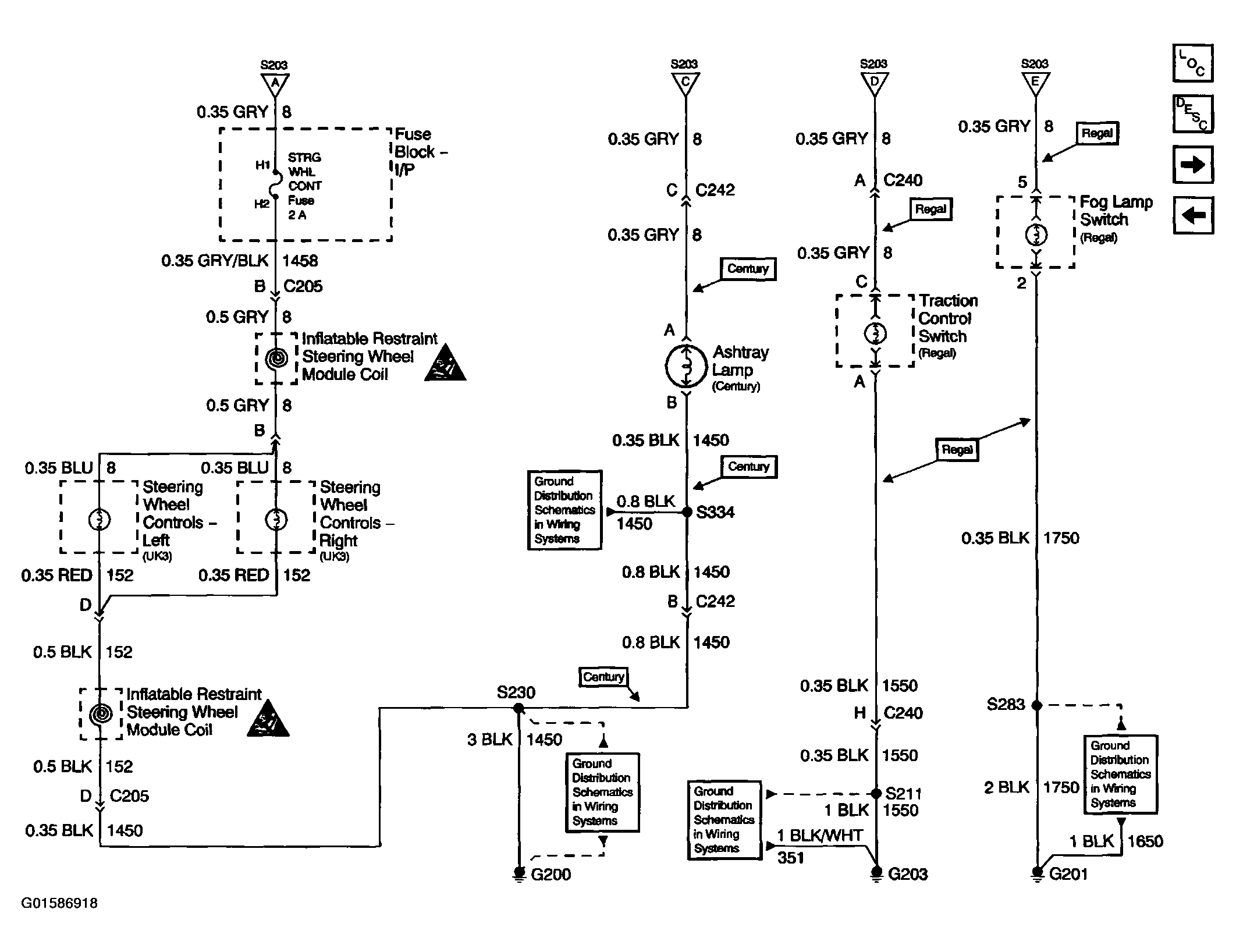

Fig 14: Interior Lights Dimming Schematics (I/P Dimmer Switch, HVAC, And IPC)

Courtesy of GENERAL MOTORS CORP.

Fig 15: Interior Lights Dimming Schematics (Passenger Compartment Lamps)

Courtesy of GENERAL MOTORS CORP.

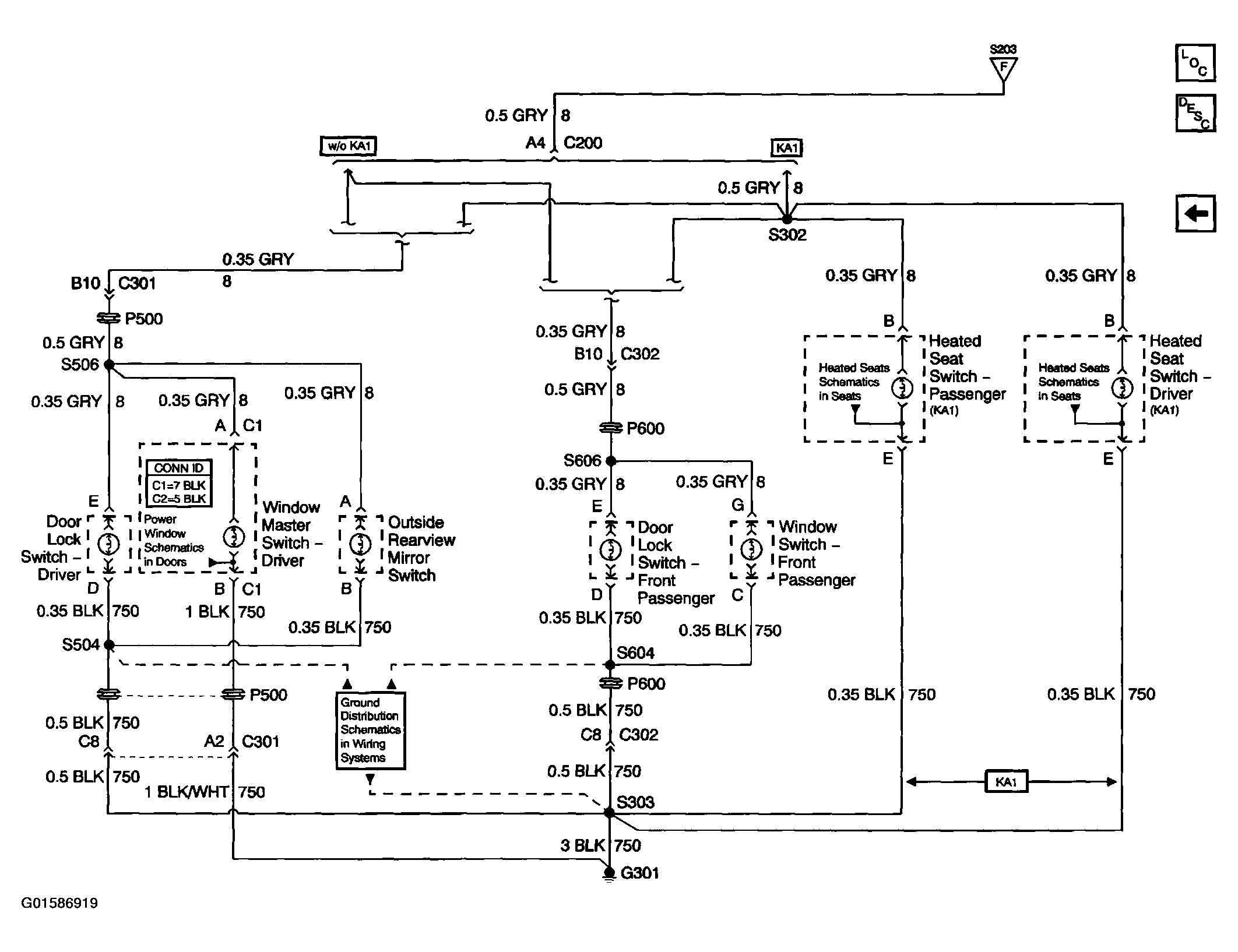

Fig 16: Interior Lights Dimming Schematics (Door And Seat Switches)

Courtesy of GENERAL MOTORS CORP.
