Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR. Refer to DISABLING SYSTEM .
  2. Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - ON VEHICLE .
  3. Remove the ignition lock cylinder. Refer to IGNITION LOCK CYLINDER REPLACEMENT - ON VEHICLE .
  4. Remove the theft deterrent control module wiring harness from the steering column harness.
  5. Disconnect the electrical connector from the theft deterrent control module.
  6. If, necessary, disconnect the electrical connector from the ignition lock cylinder case.

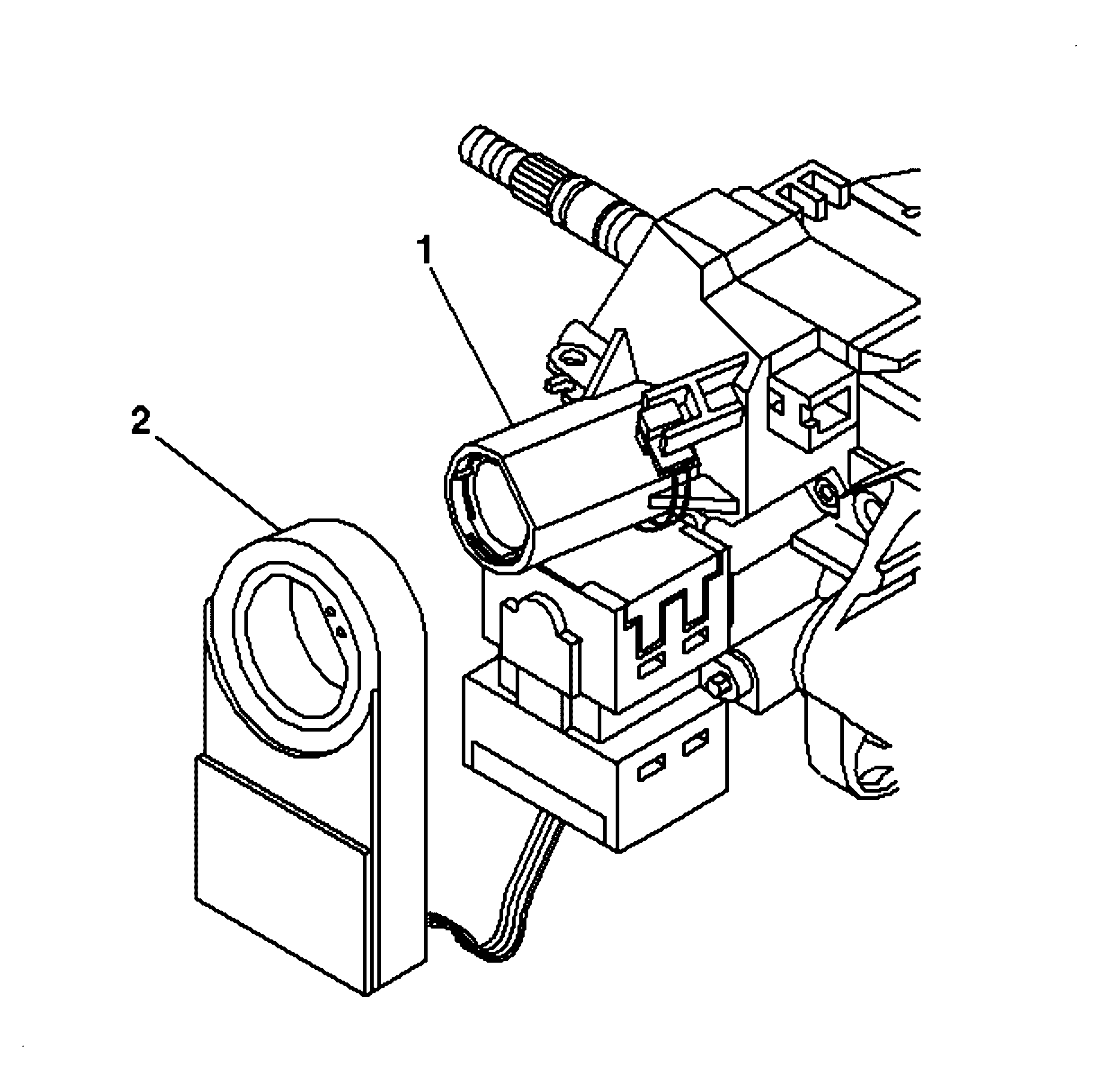

    7. Fig 1: Theft Deterrent Control Module & Lock Cylinder Housing
    GM324877Courtesy of GENERAL MOTORS CORP.
  7. Remove the theft deterrent module (2) away from the lock cylinder housing (1).
