Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the push-in retainers that hold the ABS lead to the engine splash shield.
Use the J 38778 in order to remove the push-in retainers from the engine splash shield.

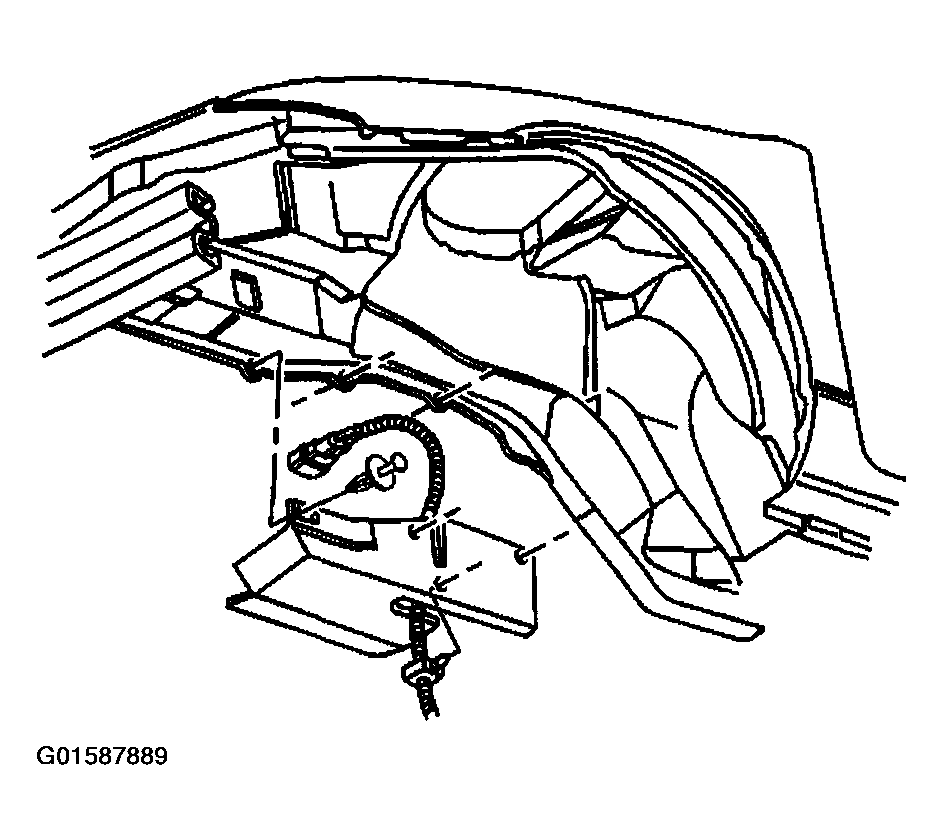

Fig 1: Removing Push-In Retainers From Engine Splash Shield

Courtesy of GENERAL MOTORS CORP.

Remove the engine splash shield from the lower flange of the engine compartment side rail.

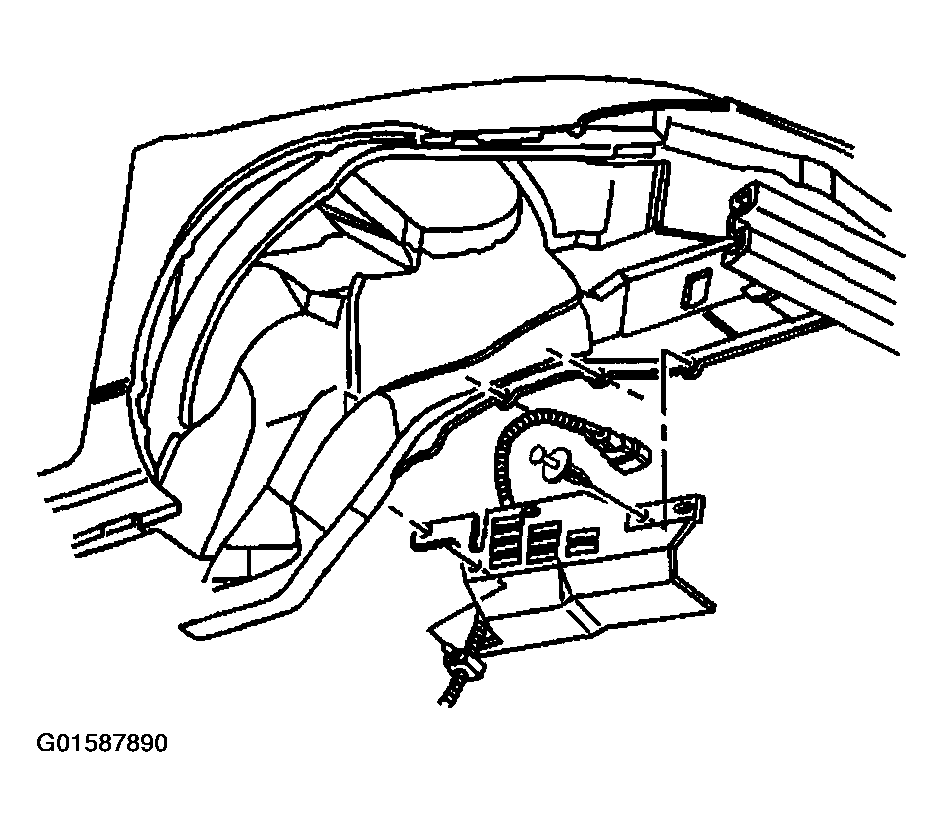

Fig 2: Removing Engine Splash Shield From Lower Flange Of Engine Compartment Side Rail

Courtesy of GENERAL MOTORS CORP.
